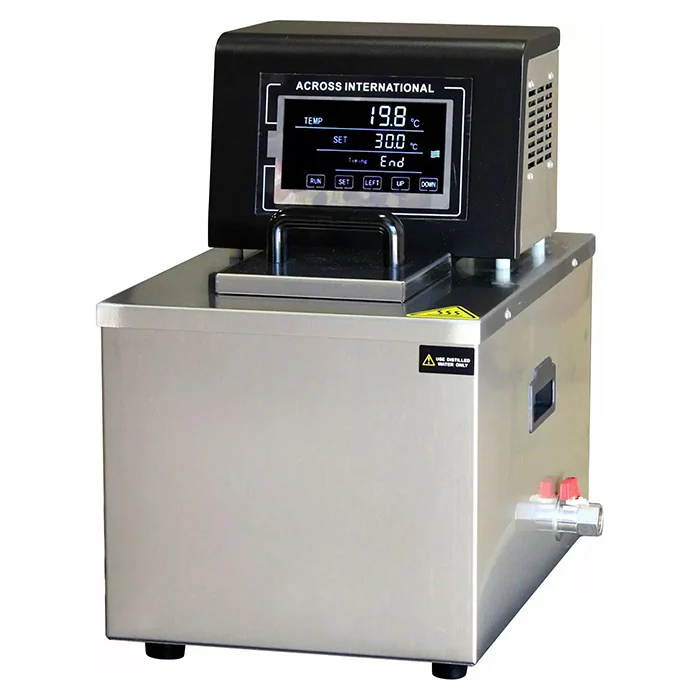

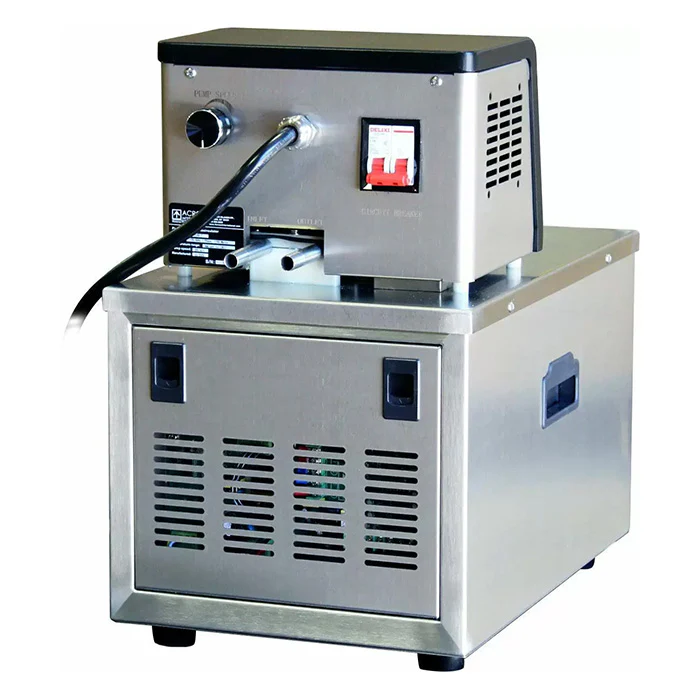

Across International 100°C Stainless Steel Compact Heated Recirculator, 7 Liter Capacity, 220 Volt

The Ai H100 series heated recirculators offer outstanding performance and high reliability as well as quiet operation and ease-of-use. Powerful force/suction pump provides constant flow rates, while the 2nd generation PID controller gives you the ideal solution when you need precise temperature control.

What's Included

• Ai H100-7 100°C 7L heated recirculator
• 3/8" tubing (10 ft)
• 1/2" NPT to 3/8" hose barb drain port adapter
• User's manual

---

Features & Benefits

• ETL tested to UL and CSA standards
• Powerful 12500 watts heater
• Adjustable pumping speed up to 20 liters per minute
• 2nd generation 7" TFT touch screen controller
• ANSI standard all stainless steel reservoir
• All steel construction for durability
• Small footprint saves valuable lab space
• Connection tubing included
• Recommended for 2L to 10L distillation systems

---

Specifications

Model	H100-7SST
Temperature range	Ambient to 100°C (No load)
Electrical requirements	220V 60Hz 1-Phase 2,600 watts
Heating capacitys	2,500 watts
Recirculating pump	Pumping speed: 20 liters per minute, adjustable Maximum head: 16 feet or 5 meters

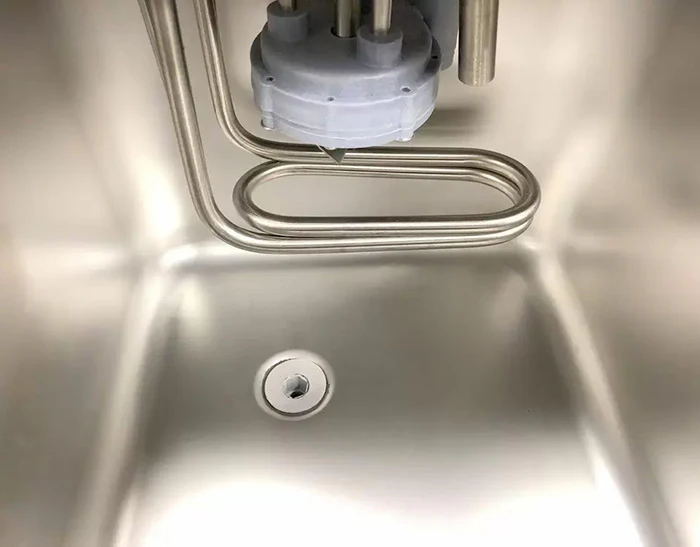

Reservoir	Dimensions: 9.5 x 12 x 7.5" (WxDxH) Material: Type 304 stainless steel Capacity: 7 liters or 1.9 gallons Thermo fluid connection: 3/8" hose barb x 2 Thermo fluid drain port: 3/8" hose barb with on/off valve

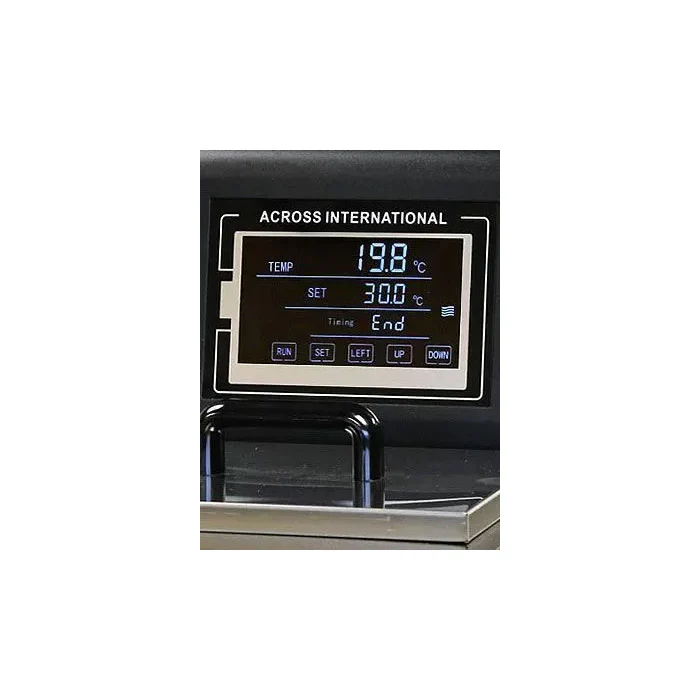

Temperature controller	Type: Digital microprocessor PID controlled Display: 7" touch screen Display unit: Celsius °C Temperature step: 0.1°C Temperature accuracy: +/- 2°C Temperature range: Ambient to 100°C
Working environment	-15°C/5°F to 25°C/77°F, at <66% humidity
Built-in swivel casterss	No
Unit/shipping dimensions	12 x 17 x 18" / 17 x 20 x 22" (WxDxH)
Unit/shipping weight	30 Lbs / 36 Lbs
Safety	Short circuit and ground protection Over-current protection Over-temperature protection Upper/lower temperature alarm protection
Warranty	1 year
Compliance	UL 61010-1 :2012 Ed.3+R:29Apr2016 CSA C22.2#61010-1 :2012 Ed.3
