Across International 10C to 25C 33L/Min 17L Capacity Recirculating Chiller, 110 Volt

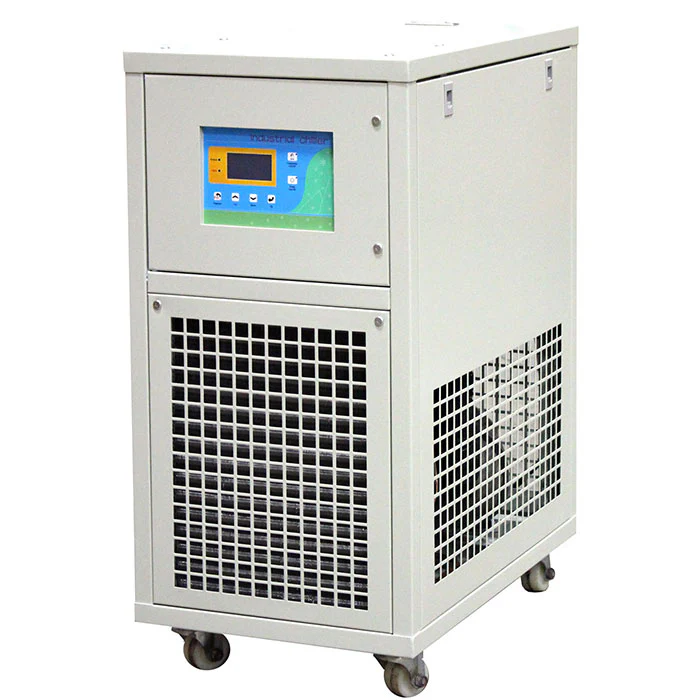

Ai WAC-1 digital temperature controlled recirculating water chiller with built-in swivel casters, recommended for our IH series induction heaters (see models below). These chillers have built-in stainless steel tank and water pump for durability and rust-free operation. two sets of water manifolds included for immediate use.
What's Included
- WAC-1 recirculating chiller
- (2x) Water manifold
- (2x) KF40 clamp
- User's manual
Specs
|
Model
|
WAC-1 |
| Input power |
110 VAC 60 Hz single-phase (1PH) 1460 watts
|
| Nominal cooling capacity |
1935 kcal/h
|
|
Nominal cooling capacity is according to:
Inlet chilled fluid temperature: 12°C Outlet chilled fluid temperature: 7°C Inlet cooling air temperature: 30°C Outlet cooling air temperature: 35°C |
|
| Compressor |
Make:
Panasonic
, UL Listed
Power: 110VAC 60Hz 1-PH, LRA42, thermally protected Refrigerant: R410A (800g) Number of compressor installed: one |
| Water pump |
Make: LX (CMFL2-20-A-W-G-BABE)
Power: 110VAC 60Hz 1-PH 370 watts 3.7A 3450 rpm IP55 Flow rate: 528 gallons per hour Max pressure: 10 bar. H(max); 20.5m, H(n): 16m |
| Reservoir volume | 4.5 gallons |
| Cooling fan |
Make: Kunli (YWF A2S-300S-5DIIIA05)
Power: 110VAC 60Hz 1-PH 155 watts 1.35A 2700rpm 16uF/500V IP44 Flow rate: 70,000 cu ft per hour Number of fan installed: one |
| Temperature accuracy | +/- 2 °C |
| Recommended coolant | Distilled water |
|

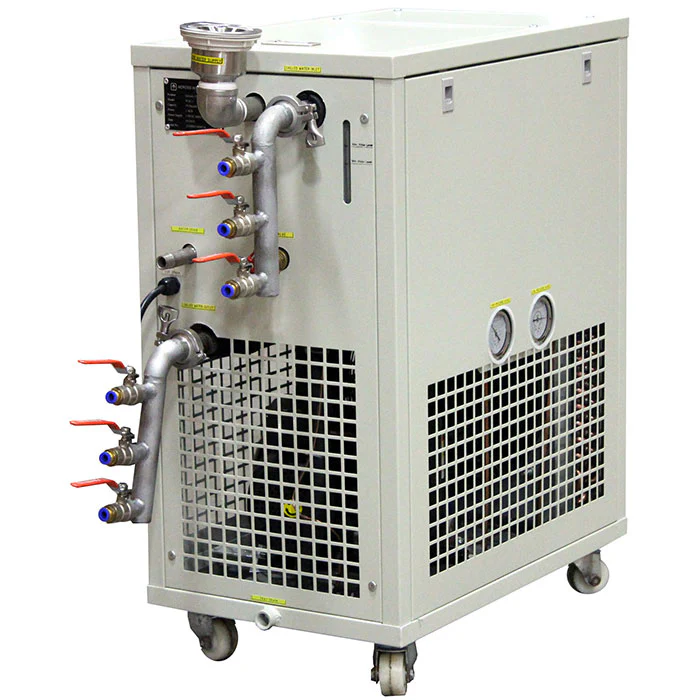

Water inlet & outlet on chiller
|
KF40 flange
|
| Manifold |
Inlet: KF40, outlet: 8mm quick connect with ball valve
|
| Unit/shipping weight |
200 Lb / 260 Lb
|
| Unit/shipping dimensions |
29 x 17 x 35" / 36 x 21 x 42" (DxWxH)
|
| Safety | Over current and c ompressor thermal protection |
| Working environment |
Temperature range of chilled fluid: 5°C - 35°C
Temperature difference of chilled fluid between inlet and outlet: 3°C - 8°C. It is better to use the chiller while the ambient temperature at or below 35°C |
| Compatiable Ai induction heaters |
High frequency 4kW, 6.6kW
Mid frequency 15kW, 25kW Low frequency 15kW |
| CE compliant | Yes |
