Across International 10C to 25C 33L/Min 35L Capacity Recirculating Chiller, 480 Volt

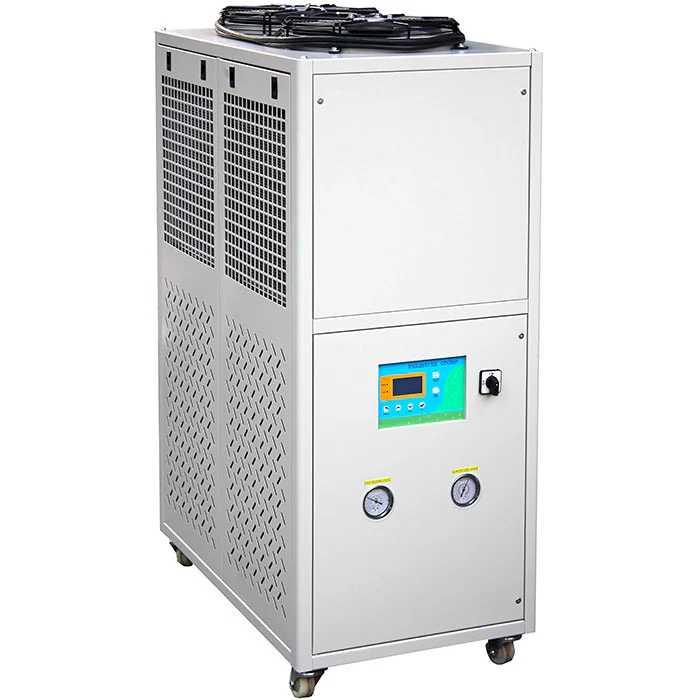

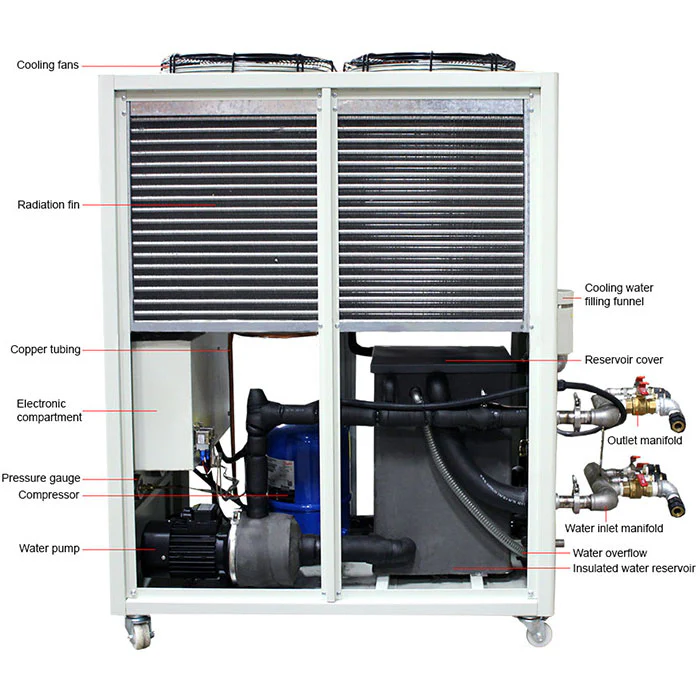

Digital temperature controlled recirculating water chiller with built-in swivel casters, recommended for our IH series induction heaters (see models below). These chillers have built-in stainless steel tank, water pump and tubing for durability and rust-free operations. Water manifold included for immediate use.

What's Included

• WAC-4 recirculating chiller
• (2x) Water manifold
• (2x) KF40 flange
• User's manual

Specs

Model	WAC-4

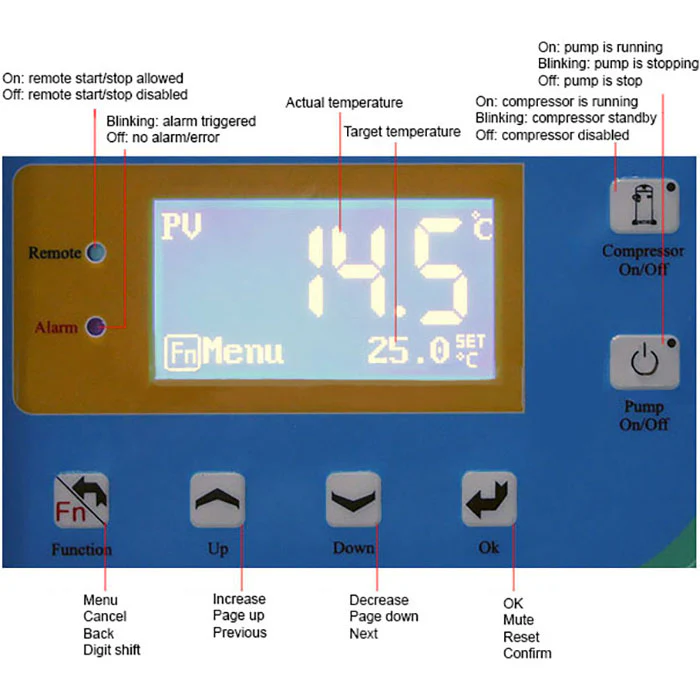

Controller	Digital micro-chip controlled with LCD screen and fluid level display
Input power	480VAC 60Hz three-phase (3PH) 3.75kW
Nominal cooling capacity	10366 kcal per hour
	Nominal cooling capacity is according to:         Inlet chilled fluid temperature: 12°C         Outlet chilled fluid temperature: 7°C         Inlet cooling air temperature: 30°C         Outlet cooling air temperature: 35°C
Compressor	Make: Danfoss (UL Listed)  Power: 460V 3-60Hz 8A 3750 watts, LR 25A, thermally protected  Refrigerant: R407C (2,400g)  PS: 22.6 bar, TS max: 50°C, TS min: -35°C  Number of compressors installed: one
Water pump	Make: LX (CMF2-50T-A-W-G-BABE)  Power: 480V 60Hz 3-PH 550 watts 2.5/Y1.4A 3450 rpm IP55  Max liquid temperature: 70°C  Pumping speed: 33L per minute  Max pressure: 10 bar. H(max): 64m, H(n): 51m
Reservoir capacity	35L
Recommended coolant	Distilled water
Cooling fan	Make: Weiguang (YWF4D-350S-102/34-G)  Power: 480V 60Hz 80/150 watts 0.27A 1640 rpm  Number of fans installed: two  Flow rate: 142,000 cu ft per hour
Temperature accuracy	+/- 2 °C
Water inlet & outlet on chiller	KF40 flange

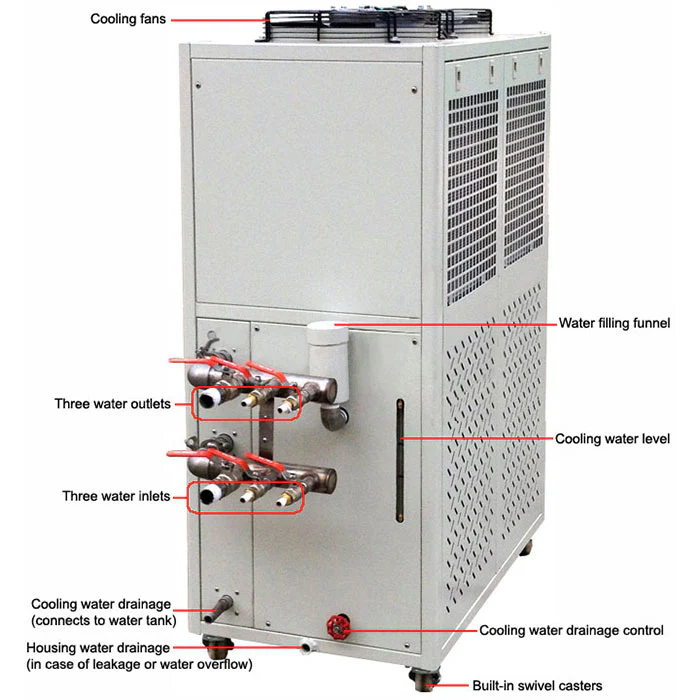

Water manifold	Inlet: KF40 flange, outlet: 8mm quick connect with ball valve
Unit/shipping weight	375 Lb / 485 Lb
Unit/shipping dimensions	41 x 22 x 54" / 50 x 25 x 61" (DxWxH)
Safety	Over current, c ompressor delay start, water pump  over load, built-in fuse, over-voltage and under-  voltage, abnormal operations, phase protection and
Working environment	Temperature range of chilled fluid: 5°C - 35°C. Temperature  difference of chilled fluid between inlet and outlet: 3°C - 8°C .  It is better to use the chiller while the ambient temperature is  at or below 35°C
Recommended to use with  these induction heaters  (result may vary on  different applications)	High frequency 10kW, 20kW, 30kW  Mid frequency 25kW, 35kW  Low frequency 25kW, 35kW
CE compliant	Yes
