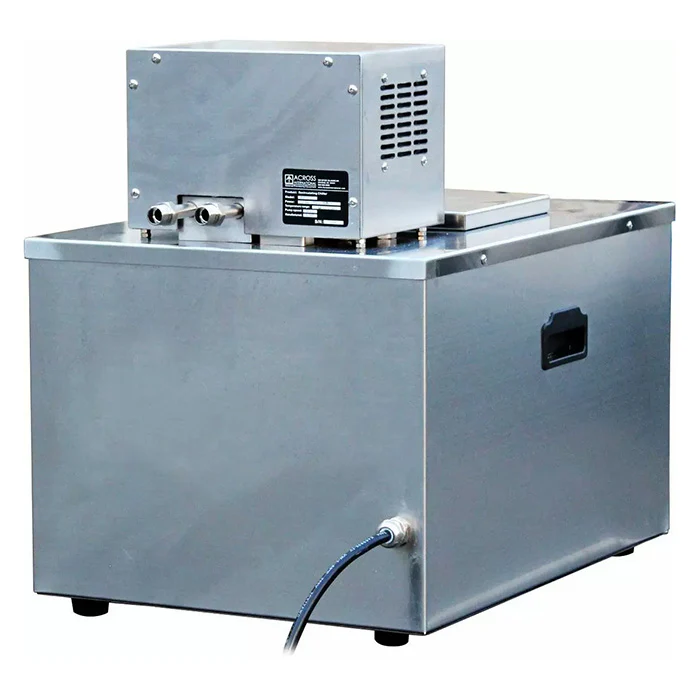

Across International 200°C Stainless Steel Desktop Heated Recirculator, 15 Liter Capacity, 220 Volt

The Ai H200 stainless steel series heated recirculators with 2,800 watts heater offer outstanding performance and high reliability as well as quiet operation and ease-of-use. Powerful force/suction pump provides constant flow rates, while the 2nd generation PID controller gives you the ideal solution when you need precise temperature control.

What's Included

• Ai H200-15 200°C 15L heated recirculator

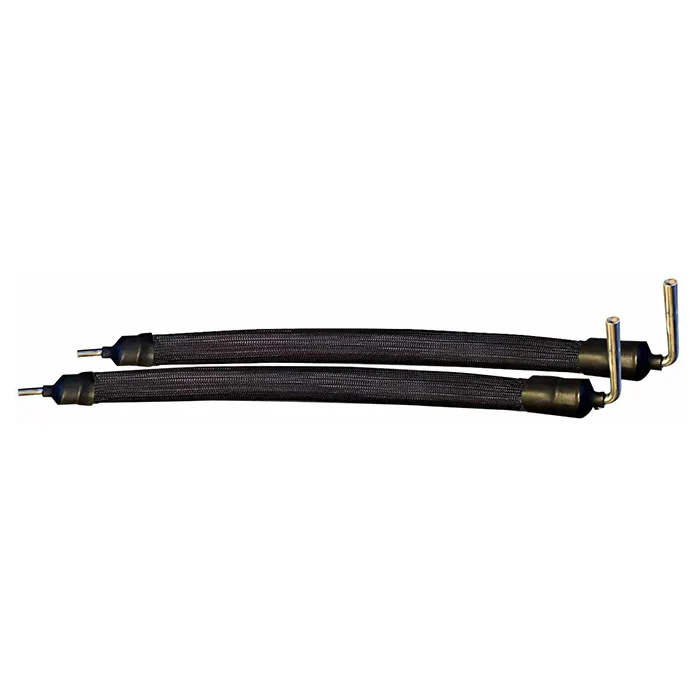

• x2 250°C rated flexible insulated stainless steel tubing (40" L), pipe connection with M16 connection fitting
• 1/2" NPT to 3/8" hose barb drain port adapter
• x4 Set - M16 Nuts, Ferrules and Sleeves
• User's manual

---

Features & Benefits

• ETL tested to UL and CSA standards
• Powerful 2,800 watts heater
• Adjustable pumping speed up to 20 liters per minute

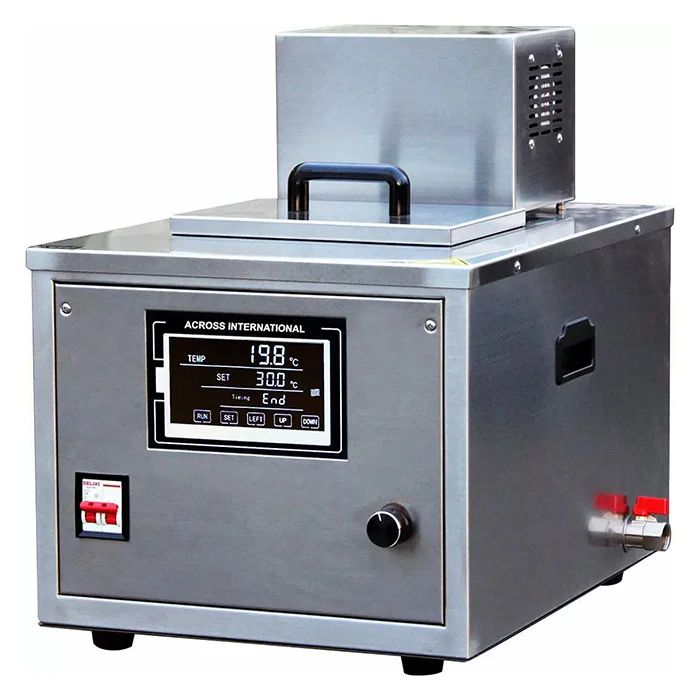

• 2nd generation 7" TFT touch screen controller
• Front placed controller keeps all electronics away from the heat and expends lifespan of the controller
• ANSI standard all stainless steel reservoir
• All steel construction for durability
• mall footprint saves valuable lab space
• Comes with 250°C rated, heavy duty, flexible stainless tubing with insulation

Optional M16 male to 3/4" NPT adapters for Ai glass reactors:

• M16x1.0 male to 1/2" NPT female x 2
• 1/2" NPT male to 3/4" NPT male x 2

---

Specifications

Model	H200-15SST
Temperature range	Ambient to 200°C (No load)
Electrical requirements	220V 60Hz 1-Phase 2,900 watts
Heating capacitys	2,800 watts
Recirculating pump	Pumping speed: 15 liters per minute, adjustable Maximum head: 16 feet or 5 meters Power: 100 watts

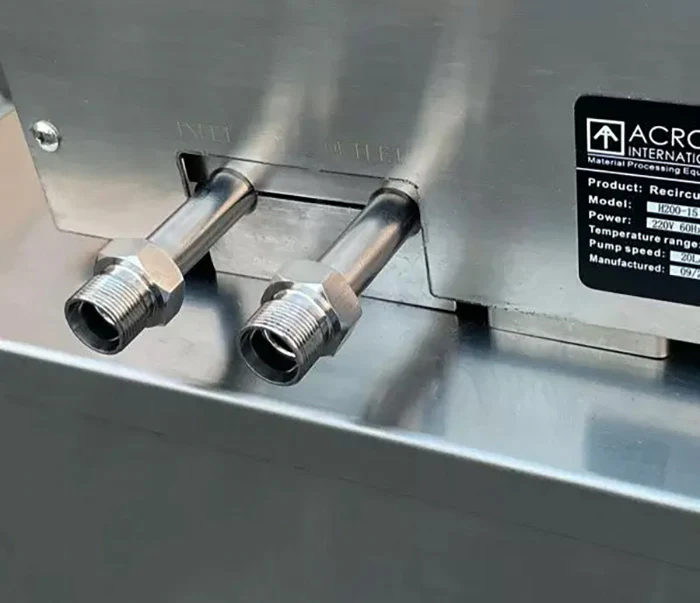

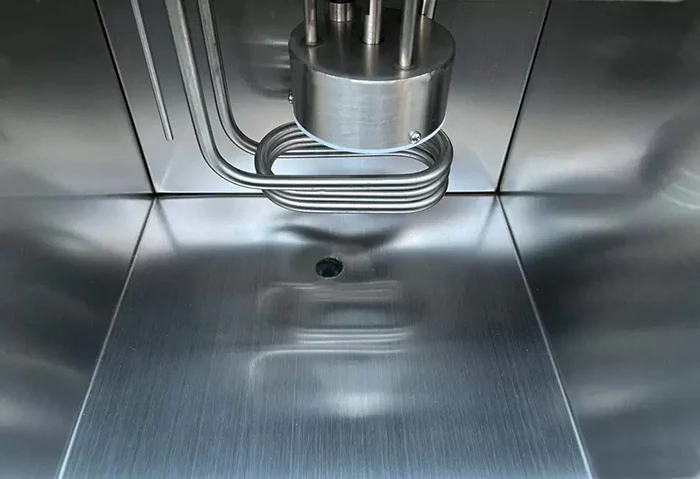

Reservoir	Material: Type 304 stainless steel Capacity: 15 liters or 4 gallons Thermo fluid connection: M16 x 2 Fluid drain port: 3/8" hose barb with on/off valve
Temperature controller	Type: Digital microprocessor PID controlled Display: 7" touch screen Display unit: Celsius °C Temperature step: 0.1°C Temperature accuracy: +/- 2°C Temperature range: Ambient to 200°C
Working environment	-15°C/5°F to 25°C/77°F, at <66% humidity
Unit/shipping dimensions	14.75 x 19 x 18.25" / 17 x 22 x 22" (WxDxH)
Unit/shipping weight	40 Lbs / 55 Lbs
Safety	Short circuit and ground protection Over-current protection Over-temperature protection Upper/lower temperature alarm protection
Warranty	1 year
Compliance	UL 61010-1 :2012 Ed.3+R:29Apr2016 CSA C22.2#61010-1 :2012 Ed.3
