Across International DeepFreeze 16 CF -40°C Upright Freezer, 110 Volt

Across International DeepFreeze 16 CF -40°C Upright Freezer, 110 Volt

The Ai DeepFreeze series -40°C freezers is perfect for large storage of sample and products. Our unique single-compressor design offers low power consumption, exceptionally low noise, and ease of maintenance.

Features & Benefits

  • Great for storage of Covid-19 vaccines, DNA, RNA, virus samples, organs and serum
  • High/low-temperature alarms, power failure alarm, door open alarm, filter clogging alarm, password protection, tons of security features to protect you, your products, and the unit
  • Dual silicon sealing gaskets for ultra airtight operation
  • 48-hour battery backup for controller
  • Built-in remote alarm and RS-485 port
  • USB interface for data export and storage
  • Environmentally friendly refrigerant
  • Use only RoSH compliant non-toxic components and materials - Important!
  • Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time.
  • This unit is NOT designed to be used on a mobile platform.

Specifications

Model D16
Electrical requirements 110V (±10%) 60Hz 1-Phase 8.89A
Performance Temperature range: -20°C to -40°C
Compressor
  • Number of compressors: two
  • Cooling method: direct cooling
  • Defrost mode: manual
  • Style: parallel
  • Refrigerant: R290
Chamber
  • Dimensions: 25.5 x 22.5 x 24.5" (WxDxH)
  • Number of chambers: two
  • Material: stainless steel
  • Volume: 15.9 Cu Ft

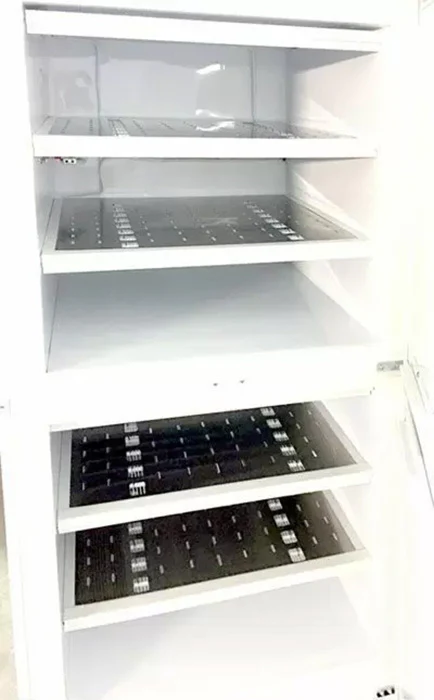

Shelf
  • Quantity: two in each chamber, four in total
  • Style: fixed
  • Material: stainless steel
Door 2
Working environment
  • Temperature: 16°C to 32°C
  • Humidity: <80% Rh
  • Altitude: < 2000 m / 6561 Ft
  • Stable, well-ventilated platform with no excessive dust
  • Keep freezer at least 12 inches from any walls or ceiling
  • Use dedicated power, do not share outlet
  • Extension power cable should be less than 10 feet is required
  • Freezer and power outlet should be grounded properly
  • Avoid direct sunlight, water spill and do NOT use freezer outdoor
  • Clean condenser fins and remove frost inside chamber at least once a month
  • Important! Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time.
Access Port Two
Built-in swivel casters Four, two with brakes
Noise Level 52 dBA
Communications
  • Remote alarm 4-20mA transmitter, USB, RS-485
Unit/shipping weight & dimensions
  • 320 Lbs / 30.5 x 26.5 x 73"
  • 345 Lbs / 37.5 x 34.5 x 80"
Safety
  • Compressor over-temp protection
  • Compressor power surge delay protection
  • Power failure protection
  • Low battery, door open, filter clogging, system failure, sensor error, condenser overheat alarms
  • External door with lock
Warranty One year
$5,231.46
Across International DeepFreeze 16 CF -40°C Upright Freezer, 110 Volt—
$5,231.46

Product Information

Shipping & Returns

Description

The Ai DeepFreeze series -40°C freezers is perfect for large storage of sample and products. Our unique single-compressor design offers low power consumption, exceptionally low noise, and ease of maintenance.

Features & Benefits

  • Great for storage of Covid-19 vaccines, DNA, RNA, virus samples, organs and serum
  • High/low-temperature alarms, power failure alarm, door open alarm, filter clogging alarm, password protection, tons of security features to protect you, your products, and the unit
  • Dual silicon sealing gaskets for ultra airtight operation
  • 48-hour battery backup for controller
  • Built-in remote alarm and RS-485 port
  • USB interface for data export and storage
  • Environmentally friendly refrigerant
  • Use only RoSH compliant non-toxic components and materials - Important!
  • Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time.
  • This unit is NOT designed to be used on a mobile platform.

Specifications

Model D16
Electrical requirements 110V (±10%) 60Hz 1-Phase 8.89A
Performance Temperature range: -20°C to -40°C
Compressor
  • Number of compressors: two
  • Cooling method: direct cooling
  • Defrost mode: manual
  • Style: parallel
  • Refrigerant: R290
Chamber
  • Dimensions: 25.5 x 22.5 x 24.5" (WxDxH)
  • Number of chambers: two
  • Material: stainless steel
  • Volume: 15.9 Cu Ft
Shelf
  • Quantity: two in each chamber, four in total
  • Style: fixed
  • Material: stainless steel
Door 2
Working environment
  • Temperature: 16°C to 32°C
  • Humidity: <80% Rh
  • Altitude: < 2000 m / 6561 Ft
  • Stable, well-ventilated platform with no excessive dust
  • Keep freezer at least 12 inches from any walls or ceiling
  • Use dedicated power, do not share outlet
  • Extension power cable should be less than 10 feet is required
  • Freezer and power outlet should be grounded properly
  • Avoid direct sunlight, water spill and do NOT use freezer outdoor
  • Clean condenser fins and remove frost inside chamber at least once a month
  • Important! Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time.
Access Port Two
Built-in swivel casters Four, two with brakes
Noise Level 52 dBA
Communications
  • Remote alarm 4-20mA transmitter, USB, RS-485
Unit/shipping weight & dimensions
  • 320 Lbs / 30.5 x 26.5 x 73"
  • 345 Lbs / 37.5 x 34.5 x 80"
Safety
  • Compressor over-temp protection
  • Compressor power surge delay protection
  • Power failure protection
  • Low battery, door open, filter clogging, system failure, sensor error, condenser overheat alarms
  • External door with lock
Warranty One year
