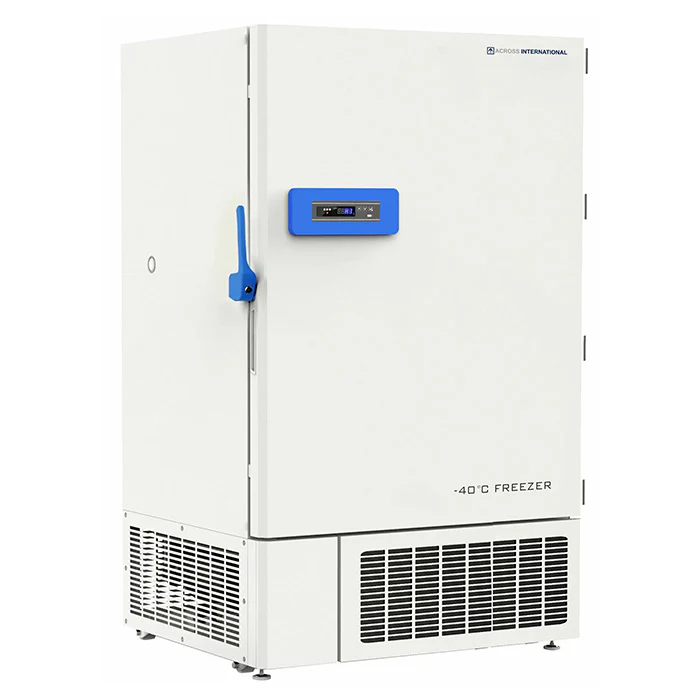

Across International DeepFreeze 35 CF -40°C Upright Freezer, 110 Volt

The Ai DeepFreeze series -40C 35 Cu Ft freezers is perfect for extra-large storage of sample and products. Our unique single-compressor design offers low power consumption, exceptionally low noise, and ease of maintenance.

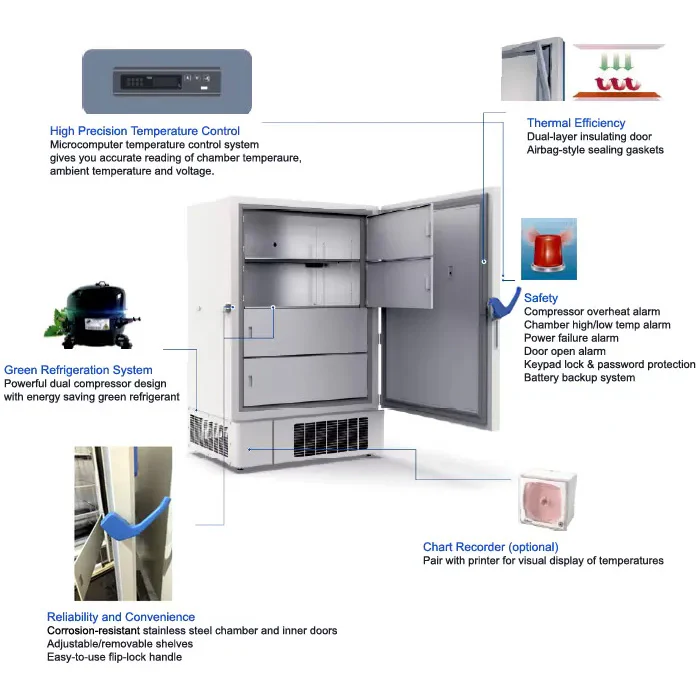

Features & Benefits

• Great for storage of Covid-19 vaccines, DNA, RNA, virus samples, organs, and serum
• All stainless steel interior for clean operation, durability, and ease of maintenance

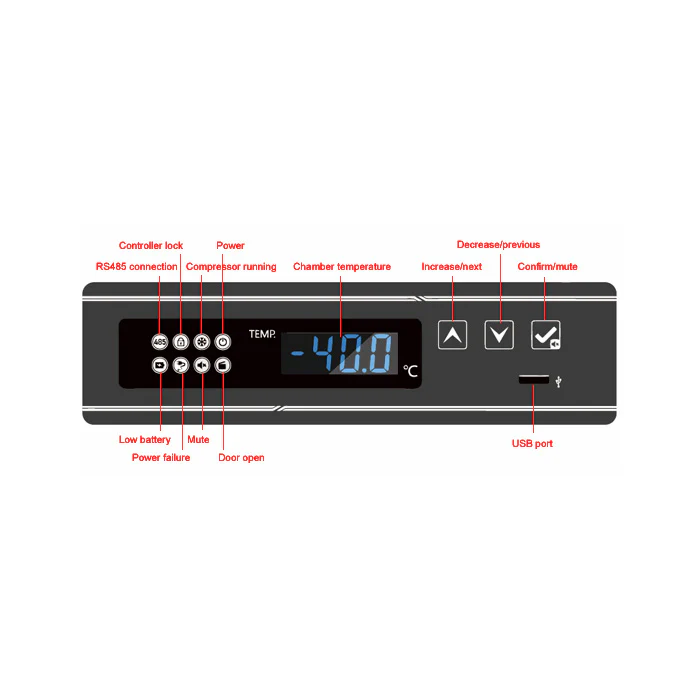

• Lock-able door, high or low temperature alarms, power failure alarm, door open alarm, filter clogging alarm, password protection, tons of security features to protect you, your products, and the unit
• Stainless steel interior for clean operation, durability, and ease of maintenance
• Dual silicon sealing gaskets for ultra airtight operation
• 72-hour battery backup for controller
• Built-in remote alarm and RS-485 port
• USB interface for data export and storage
• Extremely quiet and reliable
• Environmentally friendly refrigerant
• Use only RoSH compliant non-toxic components and materials
• Built-in swivel casters with adjustable support that will secure the unit on uneven floor - Important!
• Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time.
• This unit is NOT designed to be used on a mobile platform.

---

Specifications

Model	D35
Electrical requirements	110V (±10%) 60Hz 1-Phase, 1,375 watts 12.5A
Performance	Temperature range: -20°C to -40°C Time to reach -40°C: 6 hours
Compressor	Make: SECOP Number of compressors: two Style: parallel Refrigerant: R507
Chamber	Dimensions: 40 x 27 x 54" Material: 304 stainless steel Capacity: 35 Cu Ft

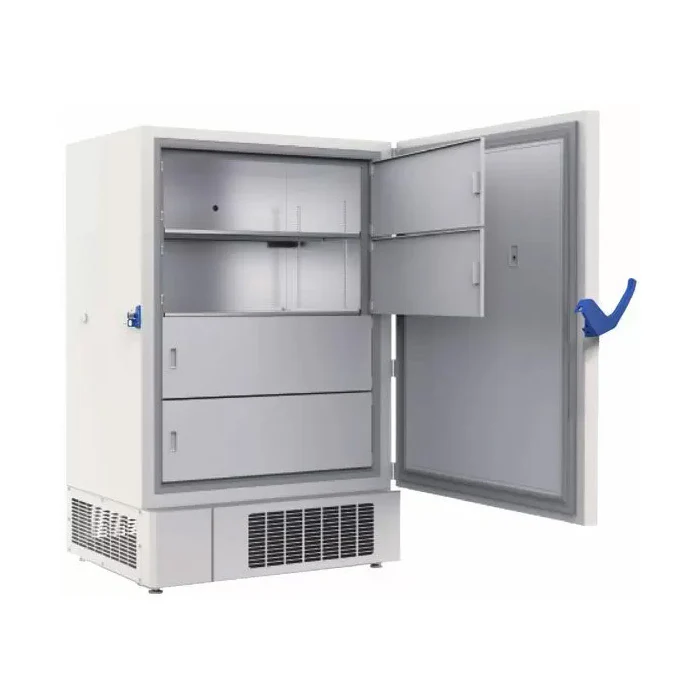

Shelf	Come with unit: three adjustable shelves (4 compartments) Material: 304 stainless steel Capacity: 110 Lbs on three shelves, evenly distributed - 450 Lbs on the base of the chamber, evenly distributed Dimensions: 40 x 27 inches (compatible with G35)
Door and gasket	Inner door: four, each with one sealing gasket External door: one with dual sealing gasket, lock-able
Working environment	Temperature: 16°C to 32°C Humidity: <80% Rh Altitude: < 2000 m / 6561 Ft Stable, well-ventilated platform with no excessive dust Keep freezer at least 12 inches from any walls or ceiling Use dedicated power, do not share outlet Extension power cable should be less than 10 feet is required Freezer and power outlet should be grounded properly Avoid direct sunlight, water spill and do NOT use freezer outdoor Clean condenser fins and remove frost inside chamber at least once a month Important! Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time.
Battery backup system	72 hours (for controller display and alarms only)
Access Port	Two, one on the side and one in the back, one inch diameter
Built-in swivel casters	Four, with two leveling feet
Noise Level	52 dBA
Communications	Remote alarm 4-20mA transmitter, USB, RS-485
Unit/shipping weight & dimensions	735 Lbs / 54 x 41.5 x 78.5" 964 Lbs / 59 x 45 x 86
Safety	Compressor over-temp protection Compressor power surge delay protection Power failure protection Low battery, door open, filter clogging, system failure, sensor error, condenser overheat alarms External door with lock
Warranty	One year
