Across International ECO 150°C 1.9 CF Vacuum Oven with LED Light

AT19e series digital desktop vacuum ovens feature a 1.9 cubic foot easy-to-clean stainless steel chamber with a large dual-layer tempered glass safety window and small footprint. These ovens can greatly reduce drying time by maintaining a consistent vacuum level within the chamber.

Every one of our vacuum ovens goes through a 2-time 24-hour vacuum leak test, and is 100% quality controlled in New Jersey or Nevada before leaving our facilities.

What's Included

• Ai 1.9 cu ft vacuum oven
• x5 Aluminum pan shelf
• KF25 quick clamp and centering ring
• Quick disconnect fitting (pre-installed at vent port)
• Led Light Cable
• Users manual

---

Features & Benefits

• Oil-filled mechanical vacuum gauge provides more accurate reading, longer gauge life and minimizes shipping damage.
• 3rd gen LCD low proportional gain temperature controllers keep your oven temperature accurate.
• Best choice for the curing and converting of oil extracts. With deep vacuum level, they can operate at temperatures which allow the degassing/purging process to occur rapidly, thus increase productivity and allow for the production of superior quality products with minimal processing time.
• Dual layer observation window with 1/2" tempered safety glass.
• 3" thermal insulation prevents heat loss and minimizes the enclosure's outer surface temperature.
• Easy-to-clean stainless steel interior for exceptional durability and ease of maintenance.
• Built-in alarm alerts you when oven has been shut down by safety circuitry due to out of range temperature.
• All ovens shipped from our New Jersey or Nevada location for quick delivery, and come with two year warranty and lifetime US-based parts and service support.
• Guaranteed US based phone and email assistance from an Ai support engineer within 30 minutes
• Manufactured in accordance with
  • ISO 9001:2000
  • ISO 12100-1:2003, ISO 12100-2:2003
  • EN1050:1996, EN294:1992, EN60204-1:2006
  • CE

---

Specifications

• 110V +/-10% 60Hz 1-PH 13.6A, 1,500 watts
• 220V +/-10% 50/60Hz 1-PH 6.8A, 1,500 watts

Electrical requirements
Chamber	Size: 16.5 x 14.5 x 14" Material: Stainless steel Capacity: 1.9 cubic foot
Heater	3-sided heating (left 400W, right 400W, bottom 700W)
Temperature control	Controller: 3rd gen low proportional gain, microcomputer PID controlled Range: ambient to 150°C Display units: Fahrenheit or Celsius Uniformity: +/- 5% of setpoint Dwelling timer range: 1 to 9999 minutes Warm-up time to 302°F: 90 minutes

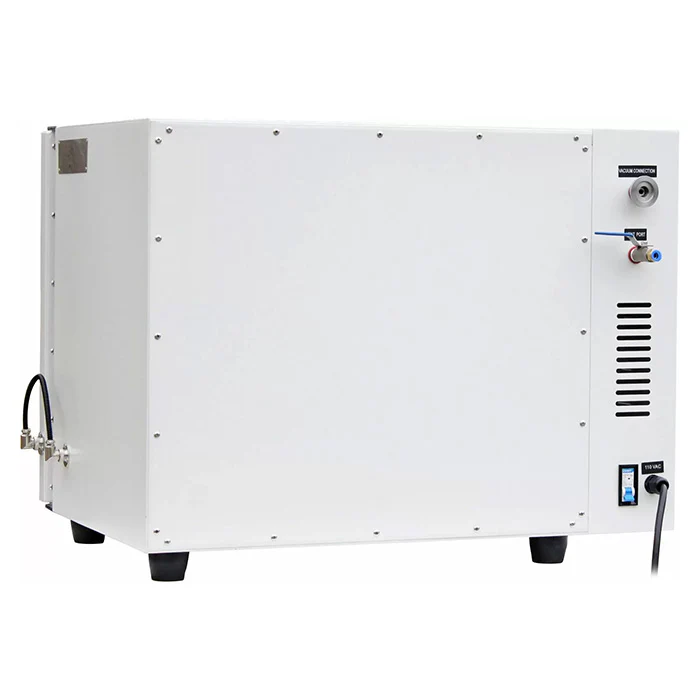

Vacuum	Ultimate vacuum level: better than 500 microns/millitorrs Mechanical gauge range: 0 to 30 inch mercury Vacuum port: KF25 flange x 1 Vent port: 1/4" ball valve Vacuum pump: Sold separately
Weight	Unit: 135 Lbs, shipping: 220 Lbs
Dimensions (WxDxH)	Unit: 28 x 20 x 21.75" With handle and vacuum port: 28 x 23 x 21.75" Shipping: 32 x 28 x 29"
Shelves	Included with oven purchase: 5 aluminum slide-in shelves Capacity: 10 shelves max. Style: pan-shape Size: 11.5 x 11.25" Maximum area: 228 x 10 = 16 sq ft or 2280 inch2 Distance between shelves: one inch

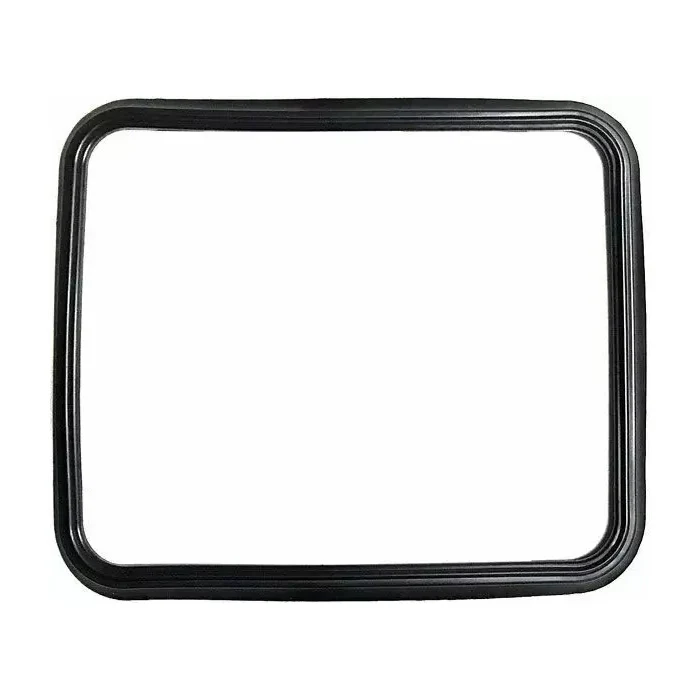

Door gasket material	Silicone or Viton
Observation window	1/2" tempered safety glass
Safety	Built-in circuit breaker Overheat shutoff protection
In-door lights	White LED
Warranty	1 year
Warranty	CE
