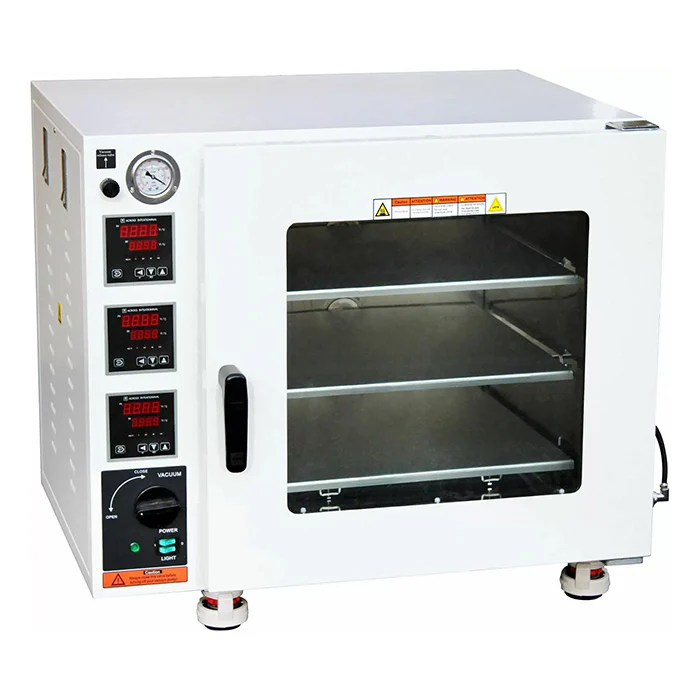

Across International ECO 150°C 3.2 CF Vacuum Oven with Heated Shelves & LED Light

With Ai internal shelf heating technology, each shelf in these ovens has its own heater, in-shelf temperature sensor and temperature controller, together with great thermal-conductive aluminum and our new low proportional controller technologies, the result is perfect uniformity, accurate temperature, super-fast heating rates, minimum heat loss/exterior temperature and very low power consumption.

Every one of our vacuum ovens goes through a 2-time 24-hour vacuum leak test, and is quality controlled in New Jersey or Nevada before leaving our warehouses.

What's Included

• Ai AT32e 3.2 cu ft vacuum ove
• x2 KF25 quick clamp and centering ring
• x3 Heated shelves
• Led Light Cable
• Users manual

---

Features & Benefits

• Oil-filled mechanical vacuum gauge provides more accurate reading, longer gauge life and minimizes shipping damage.
• Three alumimum heating shelves with individual in-shelf temperature sensor, temperature controller and heater.
• Dual layer observation window with 5/8" tempered safety glass.
• 3rd gen low proportional gain temperature controllers keep your oven temperature accurate.
• Easy-to-clean stainless steel interior for exceptional durability and ease of maintenance.
• A vacuum environment lowers the boiling point (great for processing heat sensitive materials) and reduces drying time for materials like paste or powder which cannot otherwise be easily dried.
• Built-in swivel casters with leveling feet.
• Built-in alarm alerts you when oven has been shut down by safety circuitry due to out of range temperature.
• For improved temperature tracking, run the auto-tune procedure as outlined in the manual.
• Best choice for the curing and converting of oil extracts. With deep vacuum level, they can operate at temperatures which allow the degassing/purging process to occur rapidly, thus increase productivity and allow for the production of superior quality products with minimal processing time.
• All ovens shipped from our New Jersey or Nevada location for quick delivery.
• 2-year warranty and lifetime US-based parts and service support.
• Guaranteed US based phone and email assistance from an Ai support engineer within 30 minutes

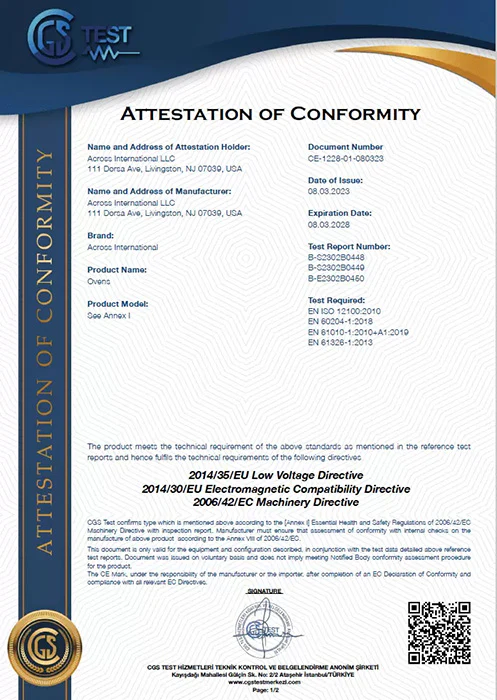

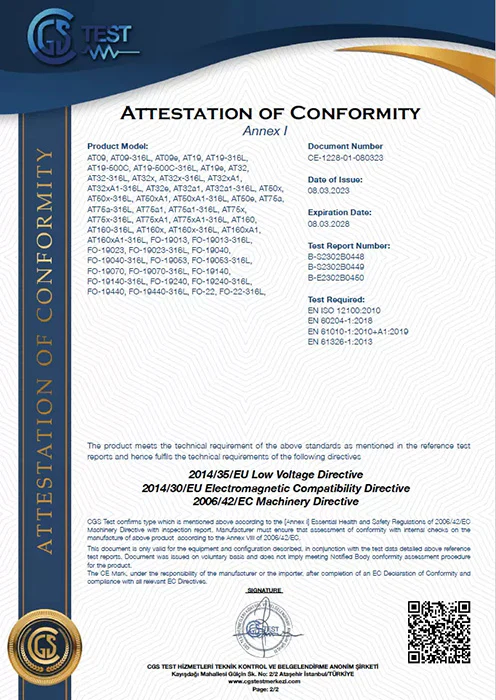

• Manufactured in accordance with
  • ISO 9001:2000
  • ISO 12100-1:2003, ISO 12100-2:2003
  • EN1050:1996, EN294:1992, EN60204-1:2006
  • CE

---

Specifications

• 110V +/-10% 60Hz 1-PH 13.6A, 1,500 watts
• 220V +/-10% 50/60Hz 1-PH 6.8A, 1,500 watts

Electrical requirements
Chamber	Size: 18 x 18 x 18" Material: Stainless steel Capacity: 3.2 cubic feet
Heater	500 watts x 3, built into 3 aluminum shelves, for the fastest, most energy efficient and uniform heating.
Temperature control	Controller: 3rd gen low proportional gain, microcomputer PID controlled Range: ambient to 150°C (302°F) Display units: Fahrenheit or Celsius Uniformity: +/- 5% of setpoint Dwelling timer range: 1 to 9999 minutes Warm-up time to 100°F: 35 minutes
Vacuum	Ultimate vacuum level: better than 500 microns/millitorrs Mechanical gauge range: 0 to 30 inch mercury Vacuum port: KF25 flange x 1 Vent port: 1/4" ball valve Vacuum pump: Sold separately
Weight	Unit: 240 Lbs, shipping: 380 Lbs
Dimensions (WxDxH)	Unit: 30.5 x 24 x 29" Shipping: 36 x 33 x 35"
Shelves	Heated shelves: 3 non-removable aluminum shelves, 17.5 x 17.25" (WxD) each Optional stackable aluminum shelves: 17.5 x 17.25 x 2.25" (WxDxH) Total area without stackable shelves: 302 x 3 = 6 sq ft or 906 inch2 Total area with 3 stackable shelves: 302 x 6 = 12 sq ft or 1812 inch2 Distance between shelves (without stackable shelves): 4.75 inches Distance between shelves (with 3 stackable shelves): 2.25 inches Max. load capacity per shelf: 20 Lbs
Door gasket material	Silicone or Viton
Observation window	1/2" tempered safety glass
Safety	Built-in circuit breaker Overheat shutoff protection
In-door lights	White LED
Warranty	1 year
Certification	CE
