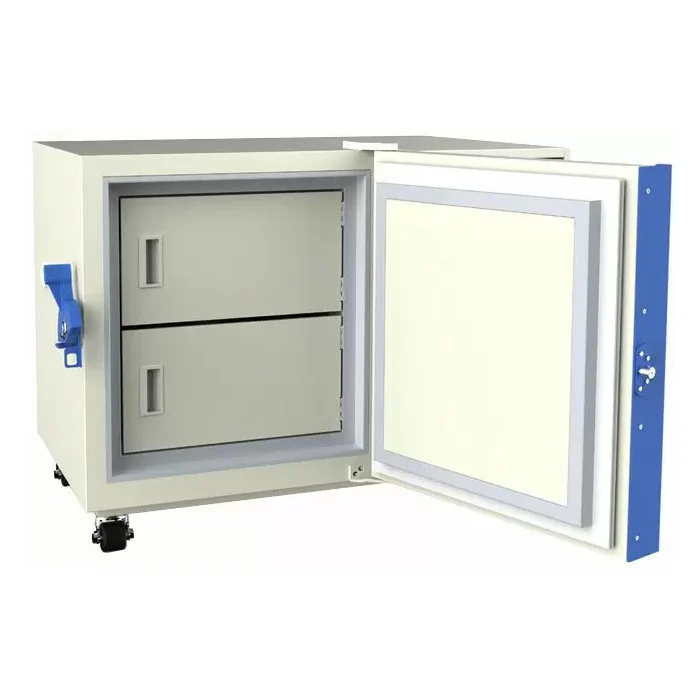

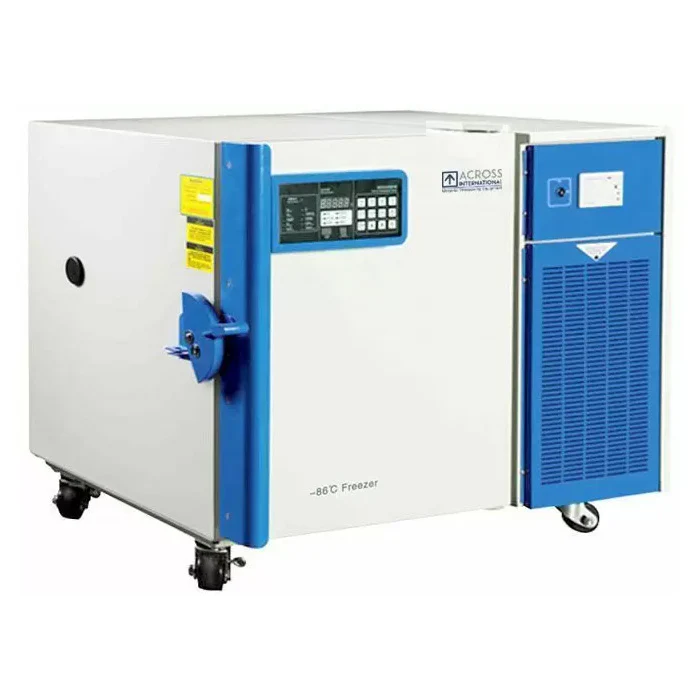

Across International Glacier 4 CF -86°C Ultra-Low Upright Freezer, 110 Volt

The Ai Glacier 4 Cu Ft -86°C ultra-low upright ULT freezer is designed for small labs that need a small amount of products or sample storage. Our unique single-compressor design offers ultra-low power consumption, very low noise, and ease of maintenance.

Whats Included:

• Ai G04 -86°C ultra-low upright freezer
• Remove-able shelf (17.5 x 17.5)”
• Ice scraper
• Printer paper for built-in printer
• x2 Door key
• User's manual

Features & Benefits

• CDC and VFC compliant
• Great for storage of vaccines, DNA, RNA, virus samples, organs, and serum
• ETL tested to UL 61010-1 and CSA C22.2 standards
• ETL tested to UL 471, Commercial Refrigerators and Freezers standards (optional)
• Remote alarm, RS232, 4-20mA transmitter (optional)
• Door lock, high or low-temperature alarms, power failure alarm, door open alarm, filter clogging alarm, password protection, tons of security features to protect you, your products, and the unit
• Digital temperature display with microprocessor-based temperature controller
• All stainless steel interior for clean operation, durability, and ease of maintenance
• Built-in printer tells you exactly how long it takes to go down to all temperatures
• Stainless steel interior for clean operation, durability, and ease of maintenance
• Dual silicon sealing gaskets for ultra airtight operation
• 48-hour battery backup for controller, alarm and printer
• Extremely quiet and reliable
• Built-in swivel casters with locks
• Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time.
• This unit is NOT designed to be used on a mobile platform.

---

Specifications

Model	G04
Electrical requirements	110V (±10%) 60Hz 1-Phase 950 watts 8.6A
Performance	Temperature range: -40°C to -86°C Time to reach -86°C: 4 hours
Compressor	Make: SECOP (formerly known as Danfoss), Germany Model: SC18MLX (104L2105) Power: 115V 60Hz 1-PHASE, 1HP Number of compressors: one Refrigerant: Ai proprietary mixture gases, CFC-free
Chamber	Dimensions: 17.75 x 19 x 20" (WxDxH) Material: stainless steel Effective capacity: 3.5 Cu Ft
Date printer	Built-in, records 7 days of data
Shelf	Come with unit: one adjustable shelf (2 compartments) Material: 304 stainless steel Capacity: 65 Lbs, evenly distributed Dimensions: 17.5 x 17.5 inches
Door and gasket	Inner door: two, each with one sealing gasket External door: one with dual sealing gaskets, lock-able
Access Port	One, 30mm diameter
Built-in swivel casters	Four
Noise Level	48 dBA
Communications	Remote alarm, RS232, 4-20 mA transmitter (optional)
Working environment	Temperature: 10°C to 32°C (humidity <57% Rh required at 32°C) Humidity: <80% Rh Altitude: < 2000 m / 6561 Ft Stable, well-ventilated platform with no excessive dust Keep freezer at least 12 inches from any walls or ceiling Use dedicated power, do not share outlet Extension power cable should be less than 10 feet is required Freezer and power outlet should be grounded properly Avoid direct sunlight, water spill and do NOT use freezer outdoor Clean condenser fins and remove frost inside chamber at least once a month Important! Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time.
Battery backup system	48 hours (for controller display and alarms only)

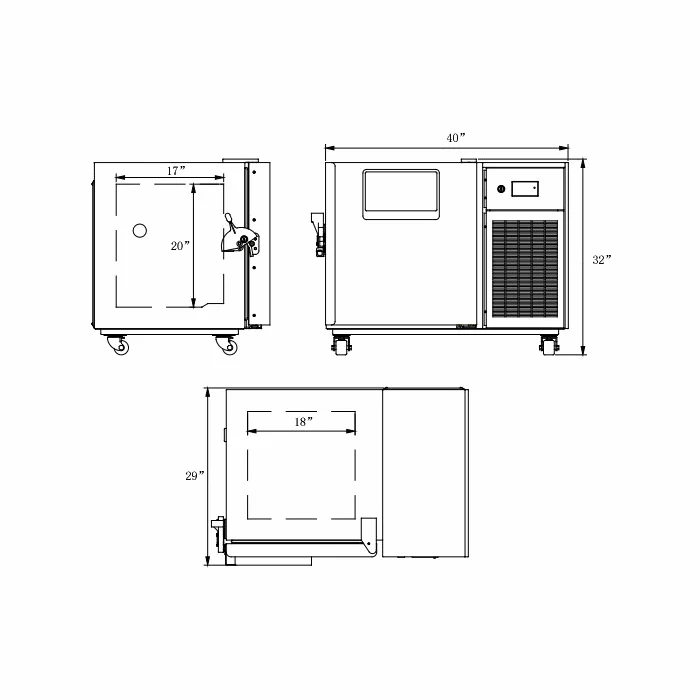

Unit/shipping weight & dimensions	380 Lbs / 494 Lbs 35 x 28 x 32" / 35 x 47 x 51" (WxDxH)
Safety	Compressor over-temp protection Compressor power surge delay protection Short circuit and ground protection Over-current protection Over-temperature and low-temperature protection Power failure protection Low battery, door open, filter clogging, system failure alarms External door with lock

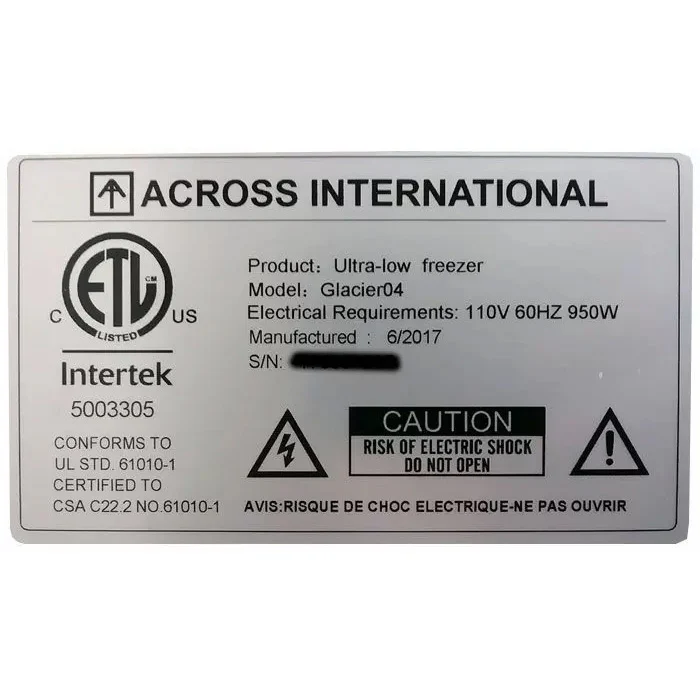

Compliance	UL STD 61010-1 (standard) CSA C22.2 NO. 61010-1 (standard) UL STD 471 (optional)
Warranty	One Year
