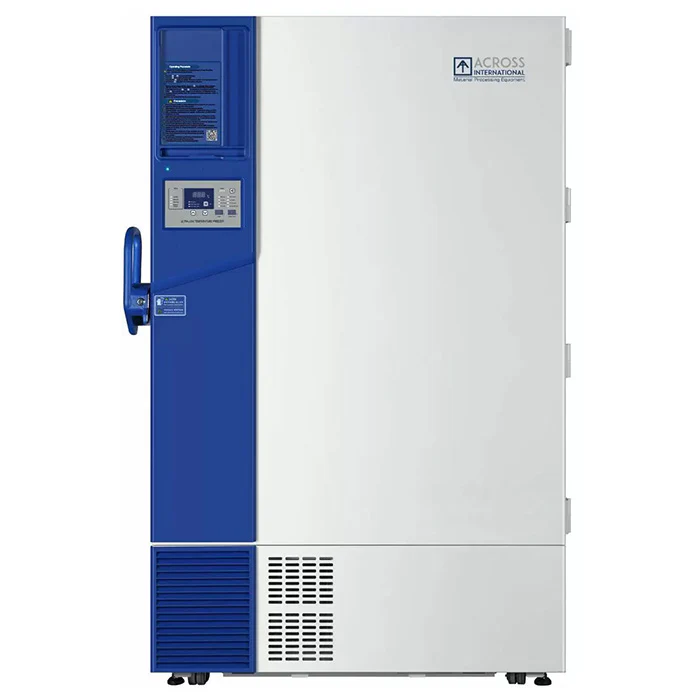

Across International RapidChill 34 CF -86°C Ultra-Low Freezer, 220 Volt

The new Ai 34 Cu Ft series RapidChill series -86C ultra-low freezers are now 50/60Hz compatible, meaning they can be used in US, as well as Asia, Europe and South America. These Ultra Lows are designed for fast cooling, ultra-low power consumption, very low noise, and ease of maintenance. All RapidChill ultra-low freezers are UL-certified.

Features & Benefits

• 50/60Hz compatible
• CDC and VFC compliant, great for storage of vaccines, DNA, RNA, virus samples, organs, and serum
• State-of-the-art Vacuum Insulated Panel (VIP, Micro-Cellular Polyurethane) insulated
• Safe, environmentally friendly, energy-efficient, and easy-to-acquire HC refrigeration
• Remote alarm, RS-485, and optional 4-20mA transmitter
• Door lock, high or low-temperature alarms, power failure alarm, door open alarm, filter clogging alarm, password protection, tons of security features to protect you, your products, and the unit
• Digital temperature display with microprocessor-based temperature controller
• Dual silicon sealing gaskets for ultra airtight operation
• 48-hour battery backup for controller and alarms
• Extremely quiet and reliable
• Compliant to UL 61010-1, CSA C22.2 and Energy Star standards

---

Specifications

Model	G34he
Electrical requirements	230V 50/60Hz. 1300 watts, 7 amps
Performance	Temperature range: -40°C to -86°lC Time from ambient to -86°C: 6 hours Uniformity: ±3 °C Time from -86°C to -50°C with the door closed (ambient 25°C): 5 hours 1 min door open recovery time (ambient 25°C, running temp -75°C): 40 mins

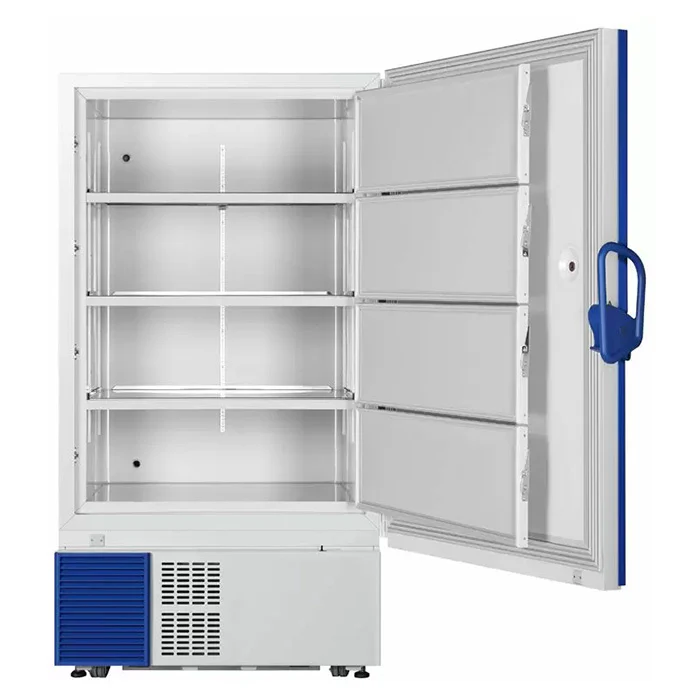

Chamber	Chamber dimensions: 40 x 28 x 51.5 inches Shelf max. weight capacity: 126kg (278lbs) Max. weight capacity of unit: 504kg (1111 lbs) 5x5x2" boxes capacity: 700 boxes
Volume	34 cu ft
Certificate	UL, Energy Star, CE
Information	Eco-friendly HC refrigerant Low noise 47 dBA USB interface, RS485 port Mobile casters Optimized insulation with VIP technology
Usage	Inverter technology for 0.33kWh/day/cu-ft ultra-low power consumption, compared to Thermo TSX70086A's 0.36 kWh/day/cu-ft
Working environment	Temperature: 10°C to 32°C (humidity <57% Rh required at 32°C) Humidity: <80% Rh Altitude: < 2000 m / 6561 Ft Stable, well-ventilated platform with no excessive dust Keep freezer at least 12 inches from any walls or ceiling Use dedicated power, do not share outlet Extension power cable should be less than 10 feet is required Freezer and power outlet should be grounded properly Avoid direct sunlight, water spill and do NOT use freezer outdoor Clean condenser fins and remove frost inside chamber at least once a month Important! Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time.
Unit/shipping weight & dimensions	Unit: 990 Lbs, 51 x 39.5 x 78 inches - Shipping: 1070 Lbs, 54 x 43.5 x 84.5 inches
Safety	High/low-temperature alarms Hot condenser alarm Power failure High/low voltage Sensor error Low battery High ambient temperature Door ajar
Warranty	2-year full service, 3-year parts, 5-year compressor
