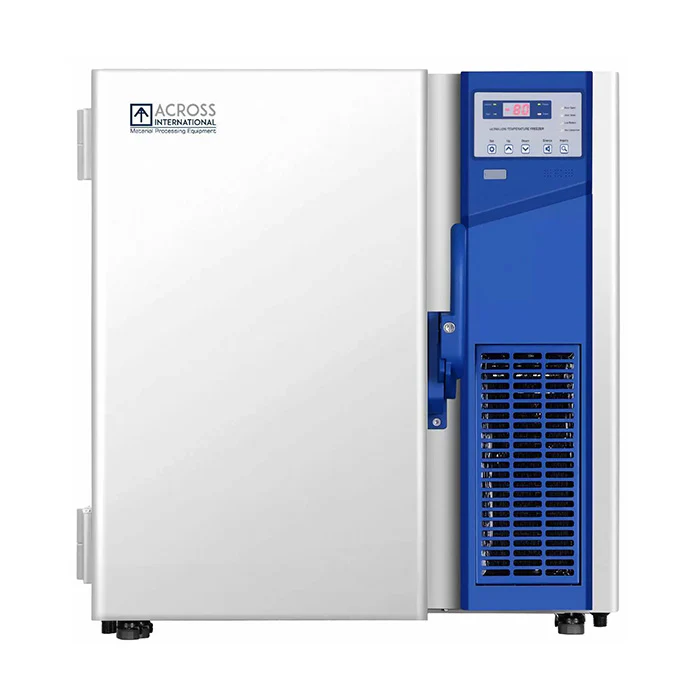

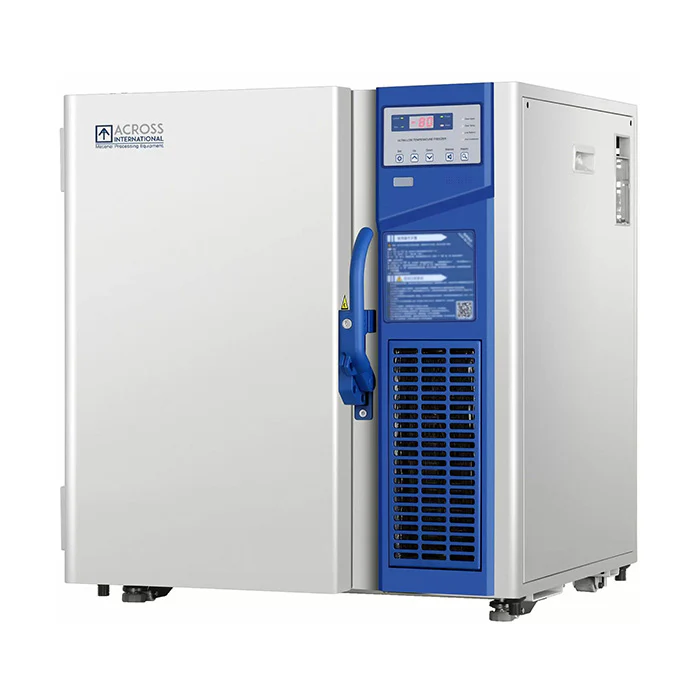

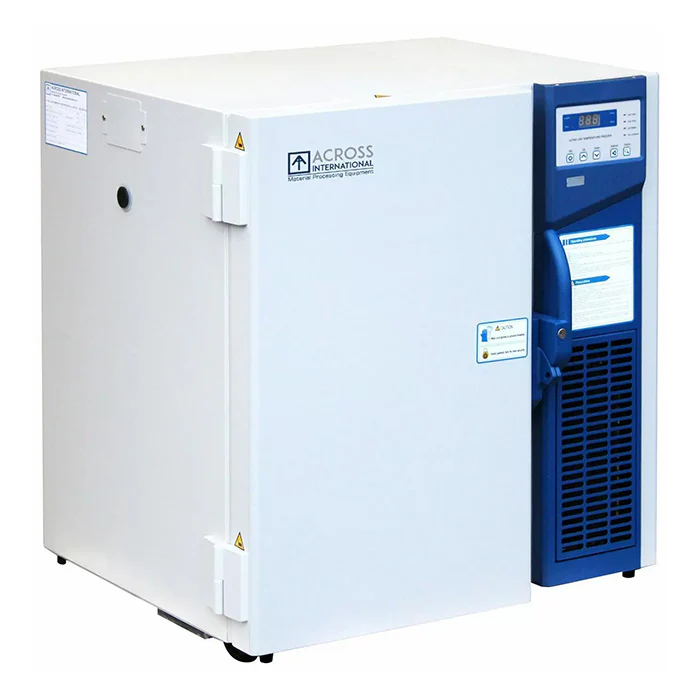

Across International RapidChill 4 CF -86°C Ultra-Low Stackable Freezer, 110 Volt

The Ai RapidChill series -86°C ultra-low upright ULT freezers are designed for fast cooling, ultra-low power consumption, very low noise, and ease of maintenance. All RapidChill ultra-low freezers are UL-certified.

Features & Benefits

• CDC and VFC compliant, great for storage of vaccines, DNA, RNA, virus samples, organs, and serum
• State-of-the-art Vacuum Insulated Panel (VIP, Micro-Cellular Polyurethane) insulated
• Safe, environmentally friendly, energy-efficient, and easy-to-acquire HC refrigeration system
• Remote alarm, RS-485, and optional 4-20mA transmitter
• Door lock, high or low-temperature alarms, power failure alarm, door open alarm, filter clogging alarm, password protection, tons of security features to protect you, your products, and the unit
• Digital temperature display with microprocessor-based temperature controller
• Dual silicon sealing gaskets for ultra airtight operation
• 48-hour battery backup for controller and alarm
• Extremely quiet and reliable
• Compliant to UL 61010-1, CSA C22.2 and Energy Star standards
• Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time.
• This unit is NOT designed to be used on a mobile platform.

---

Specifications

Model	G04h
Electrical requirements	110V (±10%) 60Hz 1-Phase 680W 6A
Power Consumption	5.5 kW/day
Performance	Temperature range: -40°C to -86°lC Time from ambient to -86°C: 4 hours Uniformity: ±4 °C Time from -86°C to -50°C with the door closed (ambient 25°C): 2 hours
Controller	Style: microcomputer controlled with analog display Range -40°C to -86°C Step: 1°C Thermo sensor: PT100 Displays: internal temperature, ambient temperature, input voltage, error code Indicators: Locked, running, power, alarm, door open, over temperature, battery low, condenser clean
Compressor	Make: SECOP (formerly known as Danfoss), Germany Style: direct cooling Power: 115V 60Hz 1-PHASE, 0.54HP Number of compressors: two HC refrigerants: R600A, R1150 and R50
Chamber	Dimensions: 13 x 19.5 x 24.5" (WxDxH) Material: powder coated stee Capacity: 3.5 Cu Ft Insulation: VIP (Vacuum Insulated Panel) 5x5x2" cryo box capacity: 60

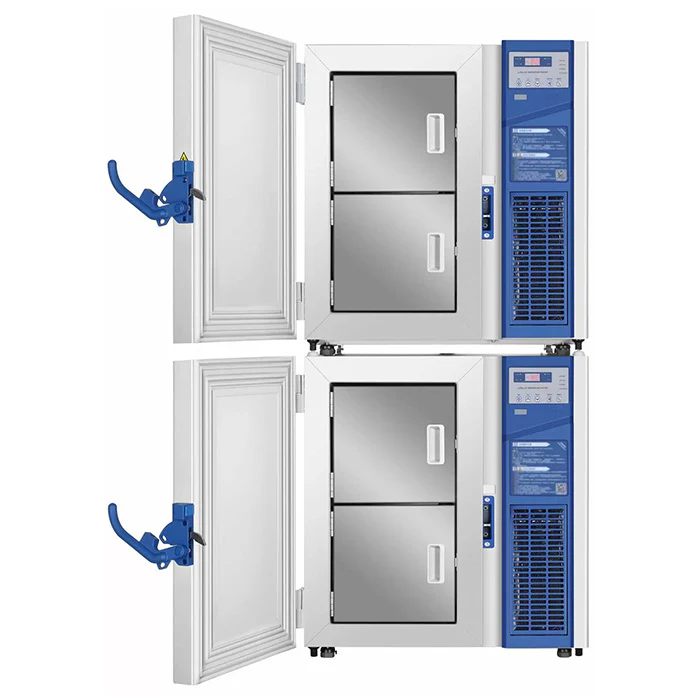

Shelf	Come with unit: one adjustable shelf (2 compartments) Material: 304 stainless steel
Door and gasket	Inner door: two, stainless steel External door: one, with four layers of silicone sealing gaskets, lock-able
Communications	Standard: RS-485, USB (stores 15 years of data for compliance purpose) Optional: 4-20mA transmitter
Access Port	One
Noise Level	46 dBA
Working environment	Temperature: 10°C to 32°C (humidity <57% Rh required at 32°C) Humidity: <80% Rh Altitude: < 2000 m / 6561 Ft Stable, well-ventilated platform with no excessive dust Keep freezer at least 12 inches from any walls or ceiling Use dedicated power, do not share outlet Extension power cable should be less than 10 feet is required Freezer and power outlet should be grounded properly Avoid direct sunlight, water spill and do NOT use freezer outdoor Clean condenser fins and remove frost inside chamber at least once a month Important! Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time.
Battery backup system	48 hours (for controller display and alarms only)

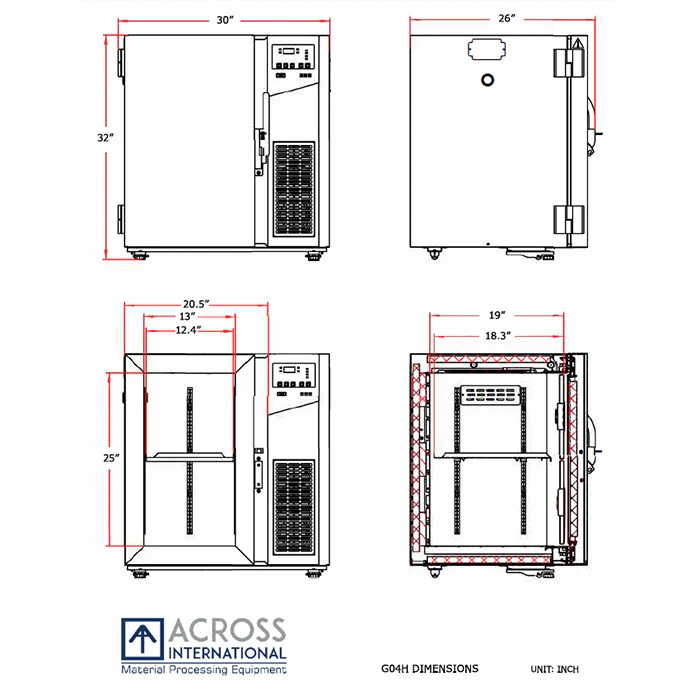

Unit/shipping weight & dimensions	240 Lbs / 30 x 26 x 32" 300 Lbs / 33 x 29 x 35"
Safety	Compressor over-temp protection Ambient over-temp protection Compressor power surge delay protection Password protection Sensor failure protection Over-temperature and low-temperature protection Power failure protection Low battery, door open, condenser clogging, system failure alarms External door with lock Ground protection
Compliance	UL 61010-1 CSA C22.2
Warranty	2-year full service, 3-year parts, 5-year compressor
