Agrowtek GrowControl SXC+ Indoor Climate Sensor With LCD Display, CO2 PPM Sensor, & 120 Volt Power Supply

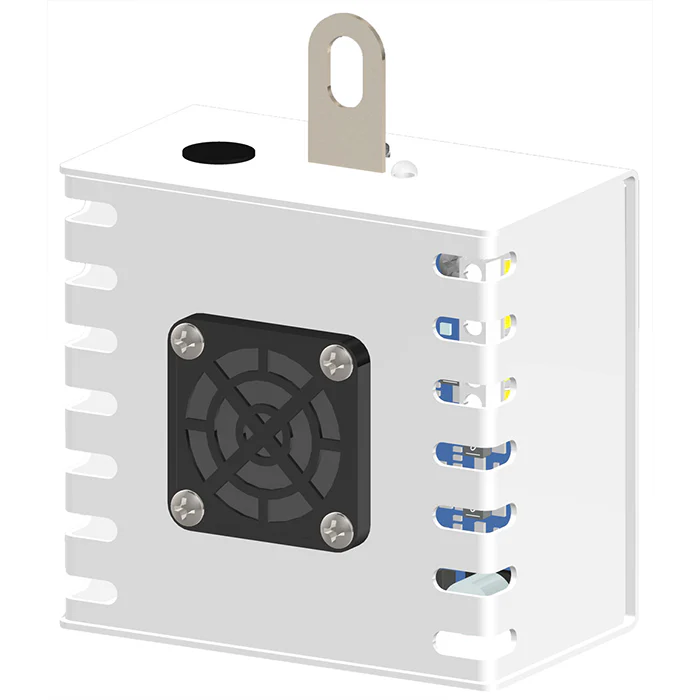

Hanging aspirated indoor climate sensor & data logger for temperature, humidity, light and CO2 ppm with LCD display.

GrowControl SXC+ Environment Sensor is a precision digital indoor monitor and data logger featuring temperature, humidity, ambient light and optionally CO2 ppm. Fan aspirated for continuous accuracy with removable air filter, this accurate and reliable sensor is feature packed. Bright color display and 3-button interface make this unit capable of operating stand-alone for sensor monitoring, alarm notifications and data logging, or connect to Agrowtek's GrowControlTM systems for advanced environmental control solutions.

Internal memory logs 21,600 data points per sensor for months or years of storage. Accurate real-time-clock with battery backup keeps log time accurate during power outages. USB AgrowLink connects the GrowNET port to a PC for datalog download to .csv, graphing, calibration, configuration, updates, and more using free PC software. Alarm set points can be configured to activate an internal buzzer to alert operators.

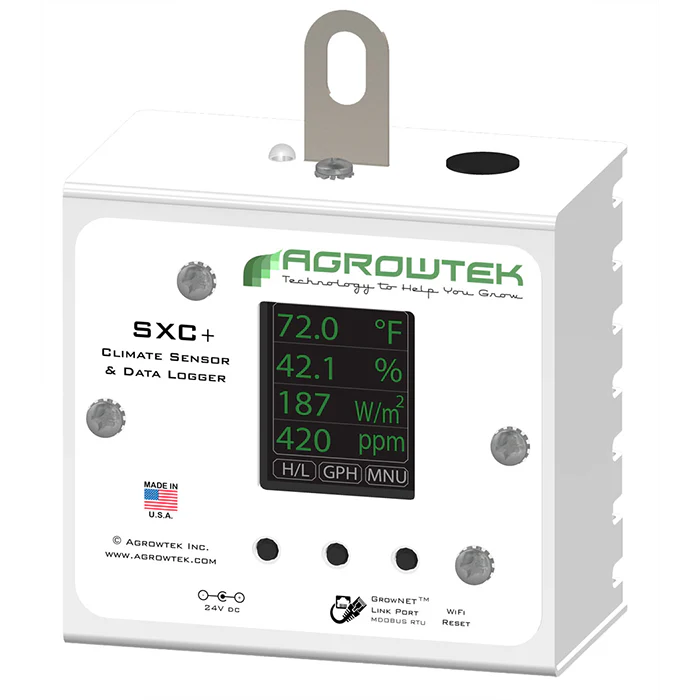

Full color display screen features large, bright green sensor readings for easy visibility, plus a range of functions that can be performed directly from the menus including:

For users with an onsite PC, Agrowtek offers the LX1 AgrowLINK, which allows it's user to utilize their free PC software for datalog download, graphing, calibration, configuration, firmware updates, etc. Learn more here!

If you're operation is set up to use MODBUS protocols, Agrowtek offers the LX2 ModLINK which connects GrowNET™ devices to RS-422/485 for MODBUS RTU protocol communication. Learn more here!

Finally, if you have a bigger operation on your hands, or just don't have an onsite PC, Agrowtek offers the ultimate in cultivation control with the GCX or GCX-Plus Cultivation Master Controller. The GCX can connect, control, and monitor up to 100 devices, and the GCX-Plus allows you to monitor up to 200 devices, both in real time with extreme accuracy! GrowControl systems are loaded with intelligent control functions optimized for today’s complex growing environments. Learn more here.

Features & Benefits

• LCD Screen
• High/low history
• Graphical history
• Alarm set points
• Sensor calibration
• Data logging options
• Display automatically shuts off after a programmable time-out to prevent photo period disruption, or can be set to stay on indefinitely.

SXW+ Specifications

Specification	Measurement
Power	24Vdc, ~5W
Max Cable Distance	1000ft
Aspirator	6cfm Fan with Foam Filter
Temperature Range	-20 - 60°C
Temperature Accuracy	±0.2°C typical | ±0.4°C maximum
Humidity Range	0-100% RH (non condensing)
Humidity Accuracy	±2% 0-80% typical | ±4% maximum
Light Irradiance Range	0 - 1000W/m2
Light Accuracy	±10%
4-20mA DAC Resolution	12 bit, 0.005mA
Interface	LCD Display, GrowNET, MODBUS
