Aqua Master C30 Triple Peristaltic Pump Unit

C30 pump unit 3x peristaltic pump set for nutrient dosing

---

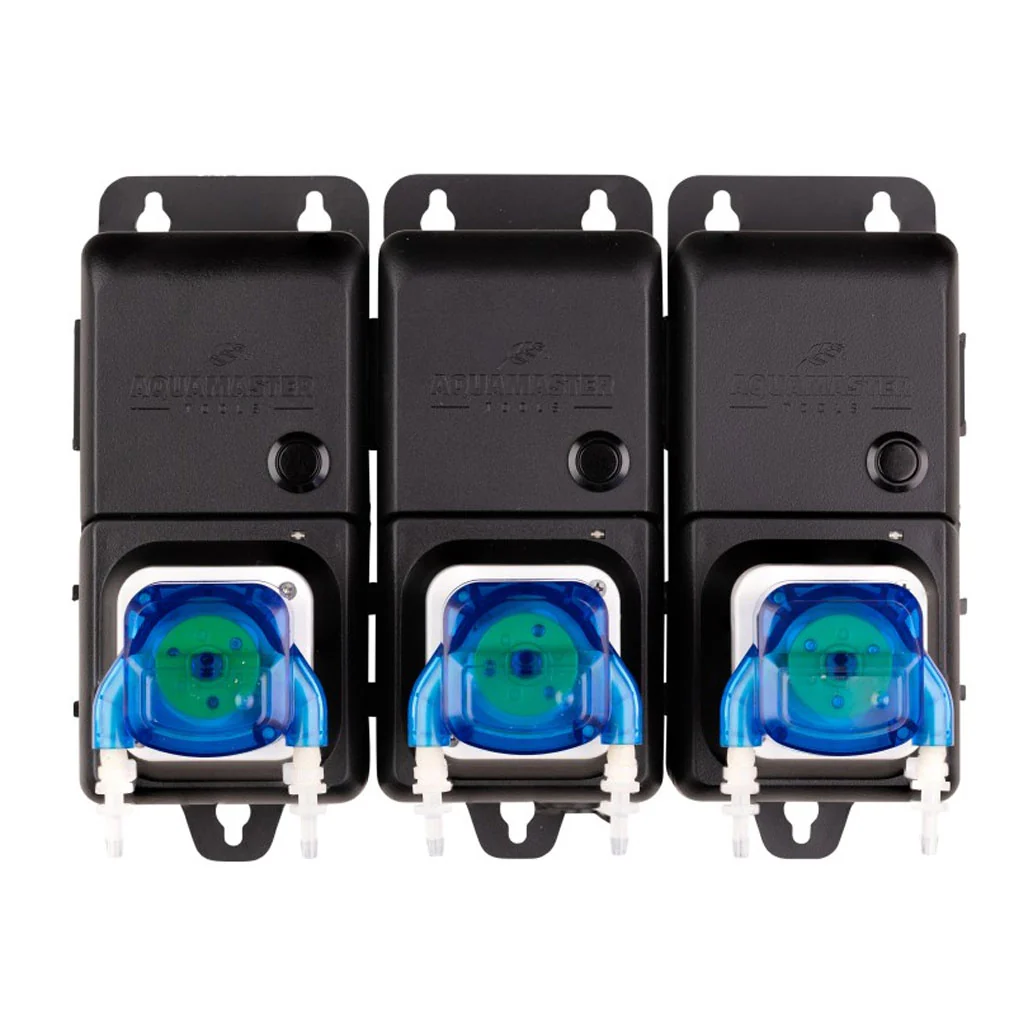

The C30 is a dosing unit with three peristaltic pumps, designed for accurate nutrient dosing. It is only suitable for EC dosing and not for pH control. Each pump has a standard dosing rate of 1.5 ml per second.

Connection and Expansion Options

The C30 offers flexible usage options:

• The C30 connects directly to the controller via the left UTP port (bottom side).
• The right UTP port is used for expansion with a C10 (1 pump) or a C20 (2 pumps).
• Mechanical linking is done via the side slide rail, and electrical connection via the included 50 cm UTP cable.

Pump numbers in the controller menu:

• C30 only: Pump 1, 2, and 3
• C30 + C10: Pump 1 to 4
• C30 + C20: Pump 1 to 5

Maximum: 5 EC pumps + 1 pH pump per controller.

---

Aqua Master C30 Single Peristaltic Pump Unit Includes:

• C30 dosing unit (3 pump)
• 3x Tubing (3 meters)
• UTP cable (150 cm) for controller connection
• UTP cable (50 cm) for expansion
• International Power Adapter
