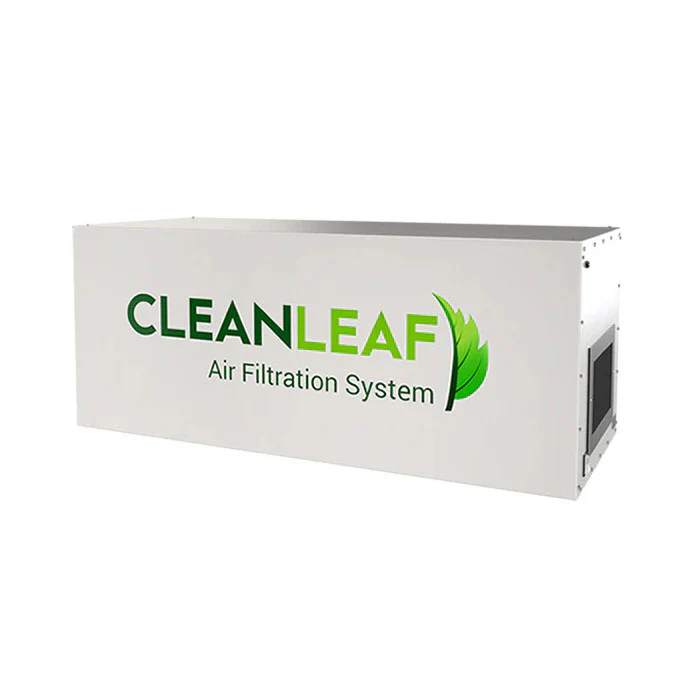

CleanLeaf CL2500 Series Air Filtration System with HEPA Filter, 1800 CFM
The CleanLeaf CL2500 series was engineered to capture the multiple airborne threats to large indoor grow facilities
Mold and fungi spores, bacteria, pollen, pest insects, VOCs and odors are all captured through a series of industry proven filtration technologies. Housed in a 16-gauge Cold-Rolled steel cabinet and finished with a light reflective white Polyurethane Powder Coating, each unit is self-contained for use individually or in groups. All units come with a standard 3 year warranty included on all parts excluding filters.

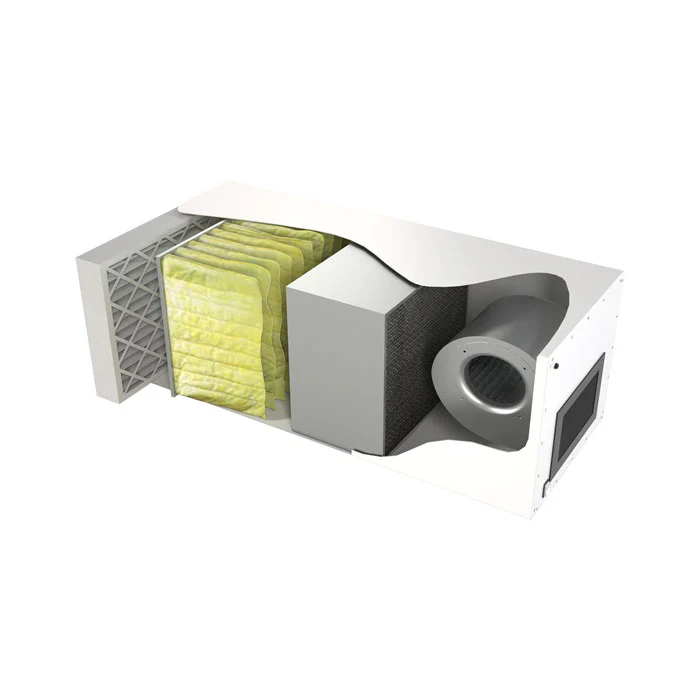

The CL1100 Series has 2 different options: Both options in this series come with the same 2 starting filters and your choice of the last filter
- 1) 35% Pleated Fiber Pre Filter - 24" x 24" x 4"
- 2) 95% 12 Pocket Bag Filter - 24" x 24" x 15"
- 3) Choice between:
- Charcoal After Filter - 75% Fill
- OR
- 99.97% True HEPA Filter
The CleanLeaf CL2500 with Charcoal filter runs at 2400 CFM while the CL1100 with HEPA filter runs at 1800 CFM
Specifications for the CleanLeaf 2500 Series
| Model | CL2500-HE |
|---|---|
| Airflow | 1800 CFM |
| Motor | PSC Type 1/4hp Direct Drive with Thermal Overload |
| Input power | 115V 60Hz Single Phase 10.2A |
| Dimensions | 24" W x 24" H x 59" L |
| Pre-Filter | 24" x 24" x 4" - 35% Pleated Fiber Pre Filter |
| Primary Filter | 24" x 24" x 15" - 95% 12 Pocket Bag Filter |
| After Filter | 20" x 20" x 12" - 99.97% True HEPA Filter |
| Hanging Weight | 190 lbs. |
| Shipping Weight | 200 lbs. |
| Model | CL2500-CF |
|---|---|
| Airflow | 2400 CFM |
| Motor | PSC Type 3/4hp Direct Drive with Thermal Overload |
| Input power | 115V 60Hz Single Phase 3.5A 500W |
| Dimensions | 20" W x 15" H x 44" L |
| Pre-Filter | 24" x 24" x 4" - 35% Pleated Fiber Pre Filter |
| Primary Filter | 24" x 24" x 15" - 95% 12 Pocket Bag Filter |
| After Filter | 24" x 24" x 2" Charcoal After Filter - 75% Fill |
| Hanging Weight | 150 lbs. |
| Shipping Weight | 160 lbs. |
