DAB ESYLINK Wireless Interface Accessory Kit

The ESYLINK is a DAB accessory equipped with a wireless 802.15.4 interface, designed to expand the functionality of the ESYBOX system. This versatile module allows connection to digital inputs such as pressure switches and floats, enabling more precise control and automation. It also manages two volt-free relay outputs for functions like alarms and system notifications, while offering the capability to connect an auxiliary pressure sensor for enhanced pressure management and set point reference. In addition to these features, the ESYLINK can be used to update the software on the ESYBOX, ESYBOX MINI, and ESWIM models, ensuring devices are always running the latest available version for optimal performance.

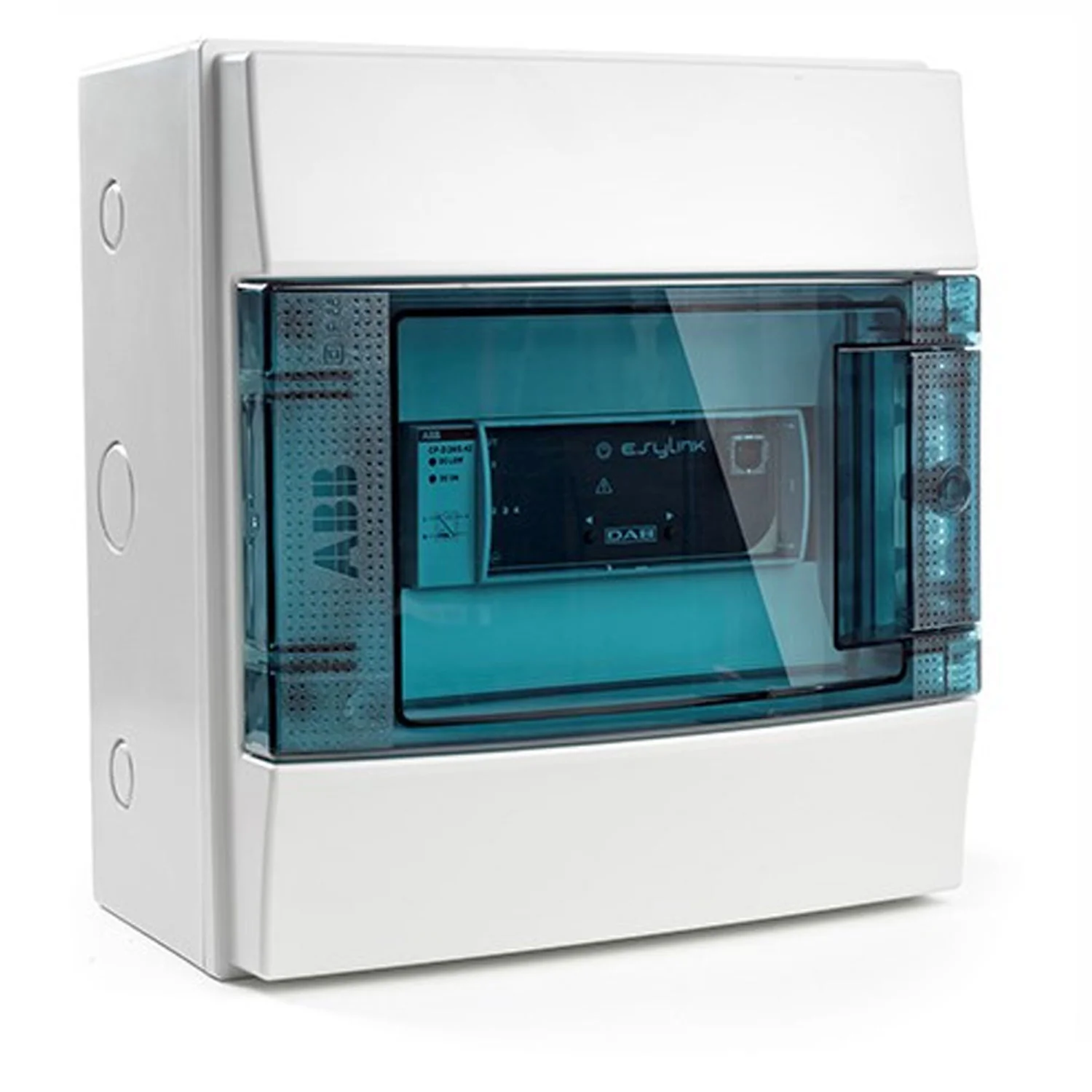

Kit Includes: ESYLINK, electrical box 8DIN, power transformer (115-230v 50/60Hz input - 24v output), and 3 cable gland.

---

Specifications for the DAB ESYLINK

• Supply Voltage: 24 V +/- 20%
• Current Min: 55 @ 24V
• Current Max: 150 @ 24 V
• Protection Class: IP 20
• Working Temperature: 32 - 122°F
• Input 1: Function external Float Switch
• Input 2: Function auxiliary setpoint
• Input 3: Function system disabling and fault reset
• Input 4: Function Low Pressure detection (KIWA)
• Output 1: Communication active alarm
• Output 2: Communication motor running status
• Dimensions: 4.13in x 3.70in x 2.36in (6 DIN Mods)
• Weight: 200g
