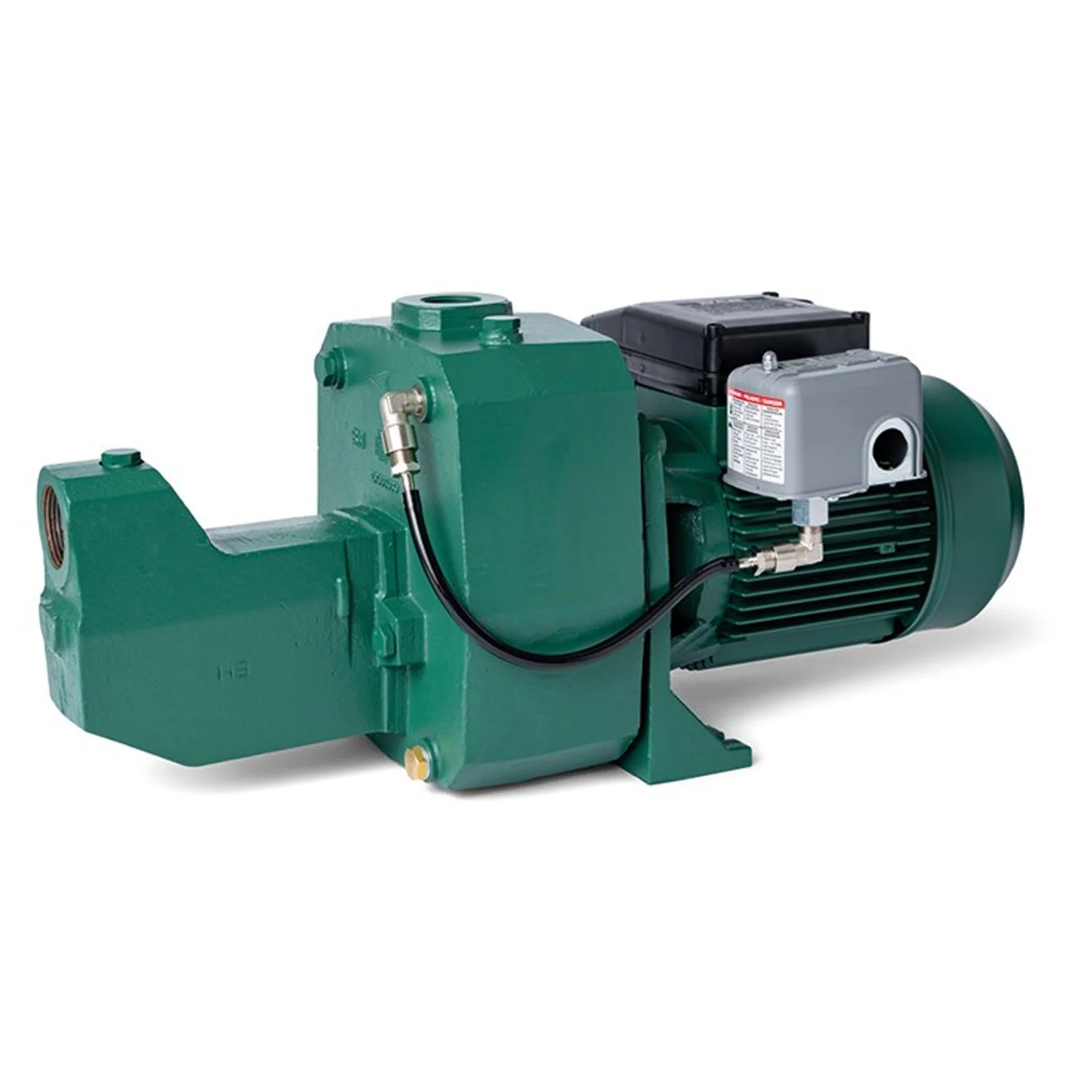

DAB JET Self Priming Centrifugal Electric Pump
The DAB JET Self-Priming Centrifugal Pump is designed for reliable water transfer in residential, agricultural, and light industrial applications. Engineered to handle water containing air bubbles and small amounts of sandy impurities, this pump ensures consistent performance even under challenging suction conditions. The robust construction features a cast iron pump body and motor support, while key hydraulic components such as the impeller, diffuser, Venturi tube, and sand guard are made from durable techno polymer. Equipped with stainless steel adjustment rings and carbon/ceramic mechanical seals, the JET offers dependable operation and long service life. With its internal ejector, high suction capacity, and efficient self-priming capabilities down to 29 ft, the JET is an ideal choice for domestic water supply, irrigation systems, small-scale farming, and gardening.
Liquid Quality Requirements: Clean, free from solid or abrasive substances, non-viscous, non-aggressive, non-crystallized, and chemically neutral
DAB JET Self Priming Centrifugal Electric Pump
| Horsepower | 1.5 HP | 2 HP |
|---|---|---|
| Power Supply | Single Phase 230V / 60 Hz | |
| Operating Range | Capacity up to 47gpm; Head up to 218 ft (94 psi) | |
| Motor Power | 1.1 kW / 1.5 hp | 1.85 kW / 2 hp |
| Motor Performance | 7.7A / 3400 RPM | 10.5 A / 3400 RPM |
| Maximum Flow Rate | Up to 23 gpm | Up to 35 gpm |
| Maximum Pressure | 115 psi | |
| Maximum Suction Depth | 29 ft | |
| Liquid Temperature Range | 32°F to +104°F | |
| Maximum Ambient Temperature | +104°F | |
| Discharge Port (DNA) | 1-1/4in NPT | |
| Delivery Port (DNM) | 1in NPT | |
| Insulation Class | F | |
| Service Factor | 1.3 | 1.2 |
| Installation | Horizontal Fixed Position | |
| >Motor Protection Rating | IP 44 | |
| Terminal Block Protection Rating | IP 55 | |
| Certifications | CSA Standard C22.2, UL Standard 778 5th Edition | |
