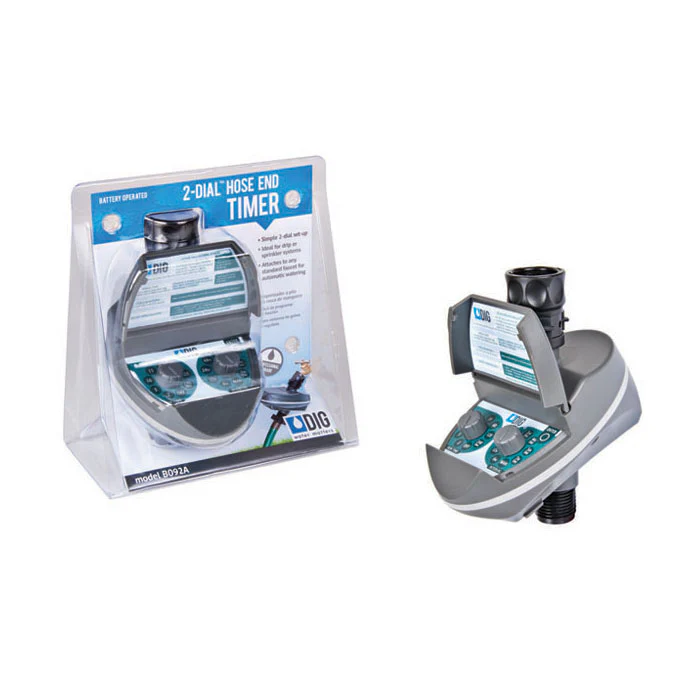

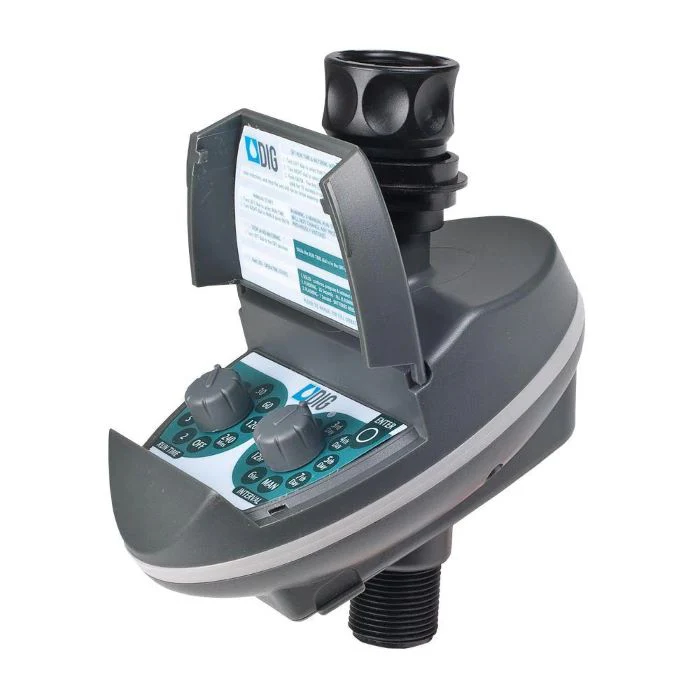

DIG 2-Dial Hose End Timer - Pack of 3

The B092A, 3/4″ Two-Dial Hose End Timer has joined DIG’s innovative and rugged line of battery operated controllers and timers, offering simplified programming and improved monitoring of battery power for reliable operation.

---

Features

• 3/4” FHT inlet and MHT outlet
• Watering duration from 2 minutes to 240 minutes
• Eight watering intervals ranging from every six hours to once per week
• Low battery auto lock out to ensure the timer cannot open unless it can close
• Low energy use (less than 20 micro amps in standby mode) ensures long battery life
• Easy manual operations using a single button
• High water flow at normal water pressures
• Operates on low water flows of less than 0.5 GPM
• 14% of higher flow at 30 PSI
• High strength female hose thread connection with easy removal via spring clip
• Powered by one 9-volt alkaline battery with battery life up to one year
• Weather resistant
• Three year limited warranty

---

Programming options

• Eight pre-set watering durations from 2 minutes to 240 minutes
• Watering frequency: eight watering intervals ranging from every six hours to once per week

---

Specifications

• Operating pressure 10 PSI to 80 PSI (0.6 – 5.5 Bar)
• Flow rate up to 6.3 gpm at 30 PSI (24 L/PM at 2 Bar)
• Temperature range: 40°F to 125° F (3° C to 50° C)
• Power source: 9-volt alkaline battery (not included)
• Solenoid: durable electric motor
• Power consumption: 20 micro amps in standby mode
• Materials: body ABS, and inner parts of high-impact plastic
• Dimensions: 6" D X 4" W x 6.5" H (15.2 cm X 10.0 cm X 16.2 cm)
