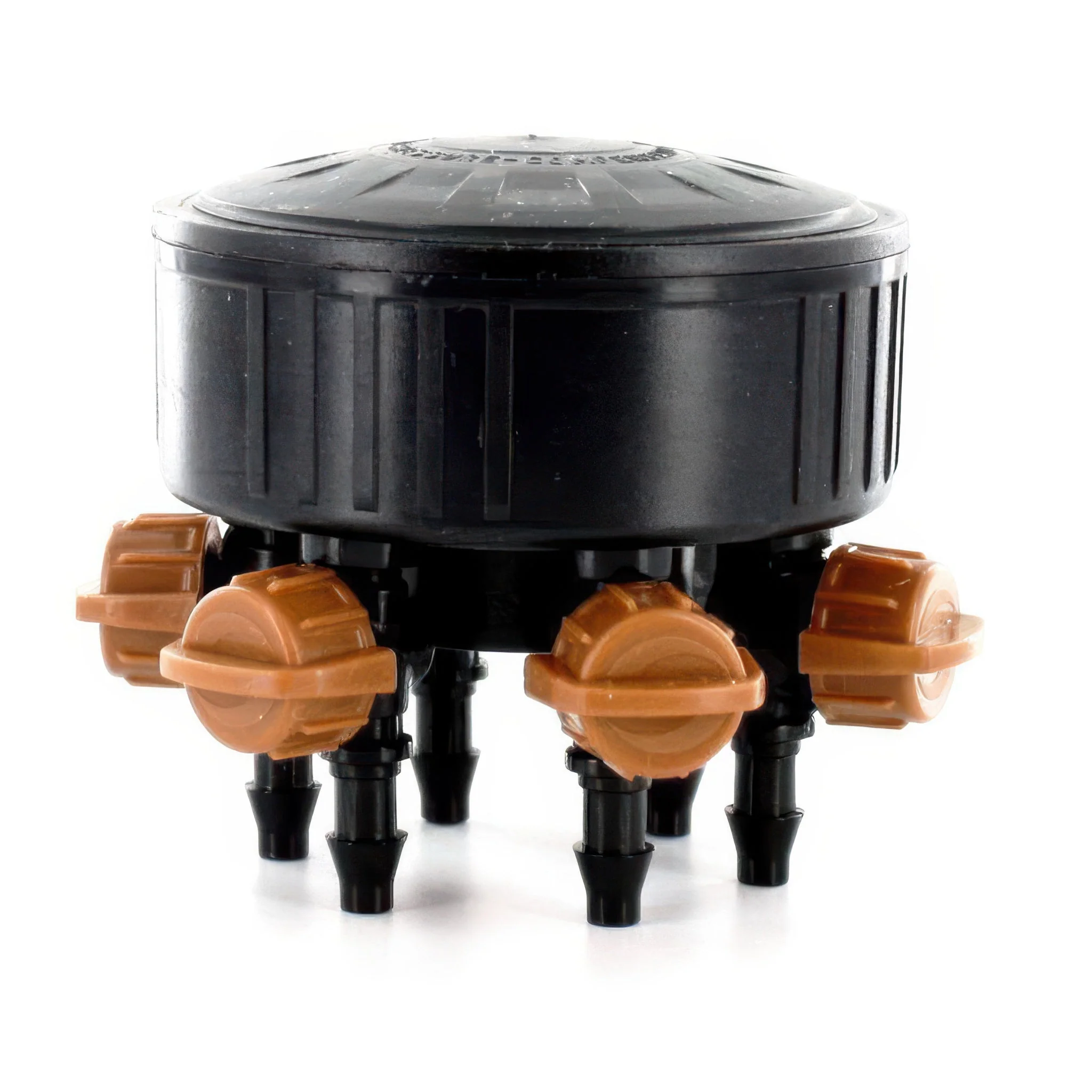

DIG 6-Outlet Adjustable Drip Manifold, 1/2 Inch FPT, 0-20 GPH - Pack of 10

Converts an existing 1/2″ sprinkler riser to a 6-outlet, adjustable high-flow drip system with a flow rate 0 to 20 GPH per zone. The 6-outlet drip manifold operates at any pressure between 15 to 50 PSI. It may be used with 1/4" micro tubing, 1/4" dripline or with individual drippers

---

Features:

• Swivel barbed outlets allow installation flexibility and protection of flow control
• Made of rugged materials to withstand adverse conditions
• Can be installed above or below grade in a 6" (15 cm) emitter box
• Use with 1/4" (.150" -.170" ID (4 mm ID) distribution tubing or with 1/4" (4 mm) dripline

---

Specifications

• Flow rate is adjustable between 0-20 GPH (0-75 L/H) per each outlet
• Operating pressure: 15-50 PSI (3.5 BAR)
• Temperature range: up to 122°F (50°C)
• Inlet size: female pipe thread (FNPT)
• Outlets size: 1/4" barbed mini valve
• Accepts 1/4” distribution tubing with .150" to .170" ID and 1/4" drip line
• Filter requirement: minimum of 40 mesh
• Materials:
  • Body and cover: high-impact plastic
  • Barbed valve: high-impact plastic
  • Diaphragm: EPDM
