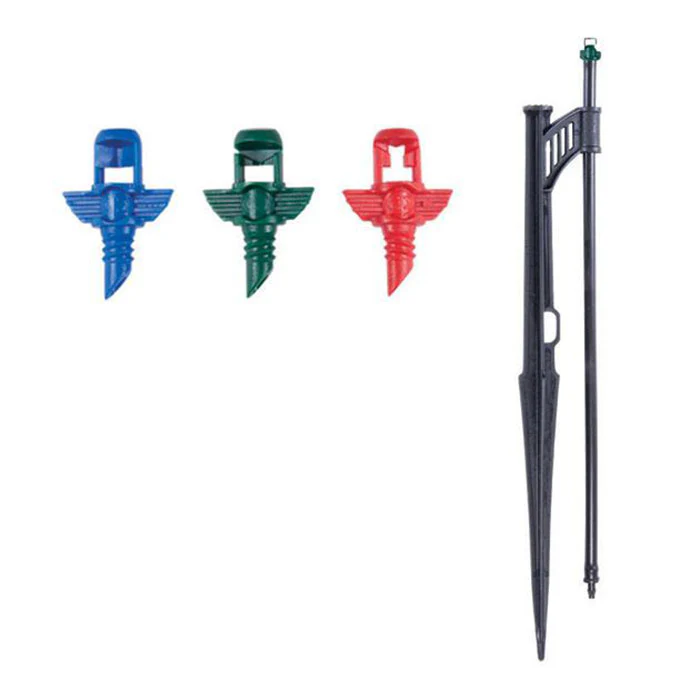

DIG Fan Micro Sprayer Stake Assembly - Pack of 100

DIG fixed pattern Wing Fan Micro Sprayers with male hex thread are available in 90°, 180° and 360° or as a complete assembly on PE flex riser with spike, offering a flat trajectory spray pattern with a flow rate of 6.2 to 44 GPH at 15 to 30 PSI. Used for groundcovers, shrubs and trees, the fan micro sprayers are ideal for areas where low flow overhead irrigation is desired or for areas where drip emitters or conventional sprinkler systems are not practical.

Features

• Easy to install using the quick thread base and wide wing edges
• Stake assembly includes a 12″ thick wall poly distribution riser with .300″ OD
• Can be used with 1/4″ (.150″-.160″ ID) distribution tubing
• Three color-coded nozzles for easy identification
• Flat trajectory spray pattern in 90°, 180° and 360°
• One-piece construction
• Recommended installation 8 to 10 inches above the ground
• Filter requirement: minimum of 80 mesh
• Constructed of UV-resistant, durable plastic material to withstand the most adverse conditions

---

Features

• Flow rate: 6.2 to 44 GPH or.103 -.738 GPM (34-143 L/H)
• Operating pressure: 15-30 PSI (1-2.06 BAR)
• Nominal operating pressure: 30 PSI (2.1 BAR)
• Wetting diameter: up to 11.2' (3.4 m)
• Orifices sizes: .30-.80"
• Filter requirement: minimum of 80 mesh
