DIG Inline Drip Emitter - Pack of 400

The Inline Drip Emitters offer installation simplicity using 1/4” distribution tubing. They are available in two flow rates of .5 GPH and 1 GPH at 15 PSI, and can be used with 1/4” distribution tubing as the mainline for pots, baskets, planter boxes, containers and for low-pressure gravity feed systems. Install the drip emitters as needed in any spacing with the 1/4″ distribution tubing as the mainline.

Features

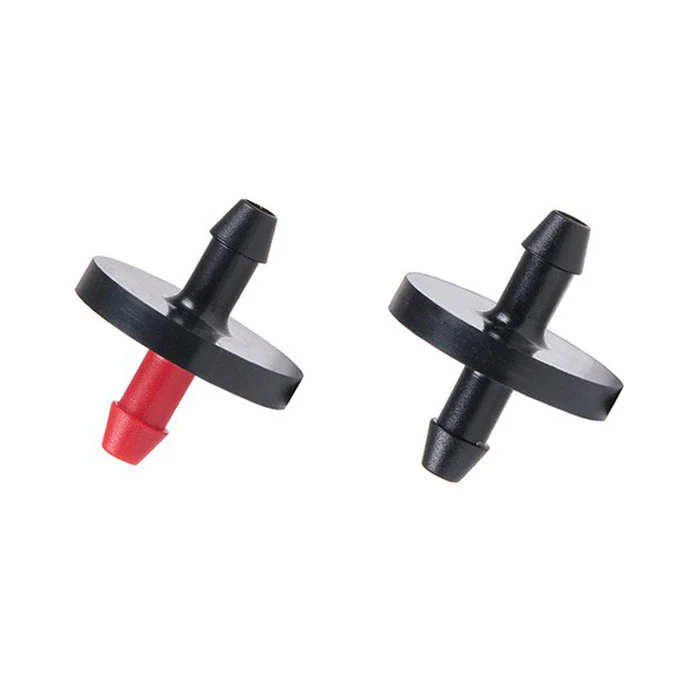

• Color-coded to easily identify flow rate
• Can be installed where desired along the 1/4″ distribution tubing
• Ideal for a loop-type layout
• Uniform flow rate at low pressure
• 1/4″ barbed inlet and outlet for installation into 1/4″ micro tubing
• Resistant to chemicals and fertilizers used in landscape applications
• Constructed of UV-resistant, durable plastic material to withstand the most adverse conditions

---

Specifications

• Operating pressure range: 5 to 25 PSI
• Recommended operating pressure: 10 to 25 PSI
• Flow rates and color codes:
  • .5 GPH color code – red
  • 1 GPH color code – black
• Inlet side: 1/4" barb
• Outlet side: 1/4" barb
• Filter requirement: minimum of 150 mesh
• Material: polypropylene
