DIG Living Wall Modular Vertical Garden Kit - Pack of 2

Grow a variety of plants including perennials, herbs and succulents with DIG Vertical Garden Wall Mounting Kits. DIG’s Living Wall™ Modular Vertical Garden kit is designed with expandable wall mounting brackets from which up to four large and four small pots can be hung vertically. The kit also includes an integrated professional watering system to deliver controlled amounts of water into each individual pot using pressure compensating drip emitters with a check valve.

The kit supports an open area between the pots and the wall, providing protection from moisture and preventing discoloration of the exposed wall.

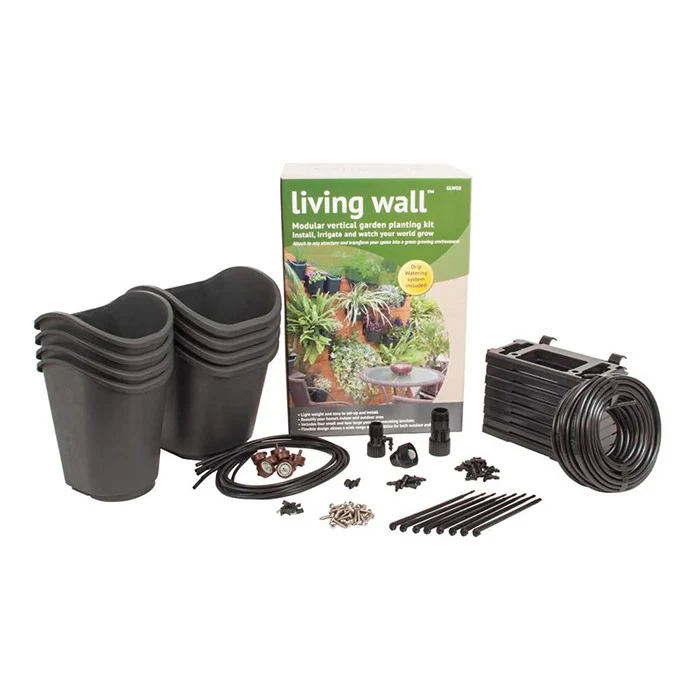

What Is In Each Box?

The contents listed is for a single box. Since this is a "Pack of 2", you will receive double of whats listed here.

---

Features

• Convenient modular wall mounting brackets allow the pots to be hung and removed from the wall very easily
• Mounting brackets can be easily secured to each other with a simple self-lock position for quick and easy installation and kit expansion
• Mounting brackets can be connected in a wide range of patterns with vertical or horizontal panels
• Pots can easily be mounted, removed, re-planted and re-mounted again for very convenient system installation
• Water supply is all out of sight except for the very small micro tubing that delivers water to a pressure compensating dripper positioned at each pot
• Water line from the Living Wall™ vertical garden kit can be connected into the water supply household faucet or garden hose
• All connections are drip irrigation standard and additional parts are available at local hardware stores or garden centers
• Uses DIG’s pressure compensating drippers with a built-in check valve that eliminate water draining when the system is shut off, saving additional water
• Quick and easy to install and maintain

---

Specifications

• Small pot size: 4 3/4" (12.1 cm) width x 5 1/2” (14 cm) depth x 6 1/2” (16.5 cm) height
• Large pot size: 6 7/8” (17.5 cm) width x 6 7/8” (17.5 cm) depth x 6 1/2” (16.5 cm) height
• Pot color: grey
• Pot weights:
  • Small pot: .367 lbs. (.166 kg)
  • Large pot: .592 lbs. (.269 kg)
• Modular wall mounting bracket: 7” (17.8 cm) Width x .7” (1.8 cm) Depth x 4.5” (11.4 cm) Height
• Wall mounting bracket color: black
• Screw size: # 8 x 3/4” length
• Wall mounting bracket weight: .121 lbs. (0.055 kg)
• Drip irrigation operating pressure: 10-50 PSI (.7 to 3.4 bar)
• Number of drippers: 8
• Required opening pressure: 4.3 PSI (.3 bar)
• Closing pressure: 2.2 PSI (.15 bar)
• Flow rates and color codes:
  • .3 GPH (1.1 L/H) color code brown inlet x gray outlet
• Dripper inlet size: 1/4” barb
• Dripper outlet side: 1/8” (3 mm) barb
• The irrigation kit is expandable up to 65 pots using 1/4” (6 mm) micro tubing as the main line. If larger, the main line needs to be 1/2” (16 or 17 mm).
