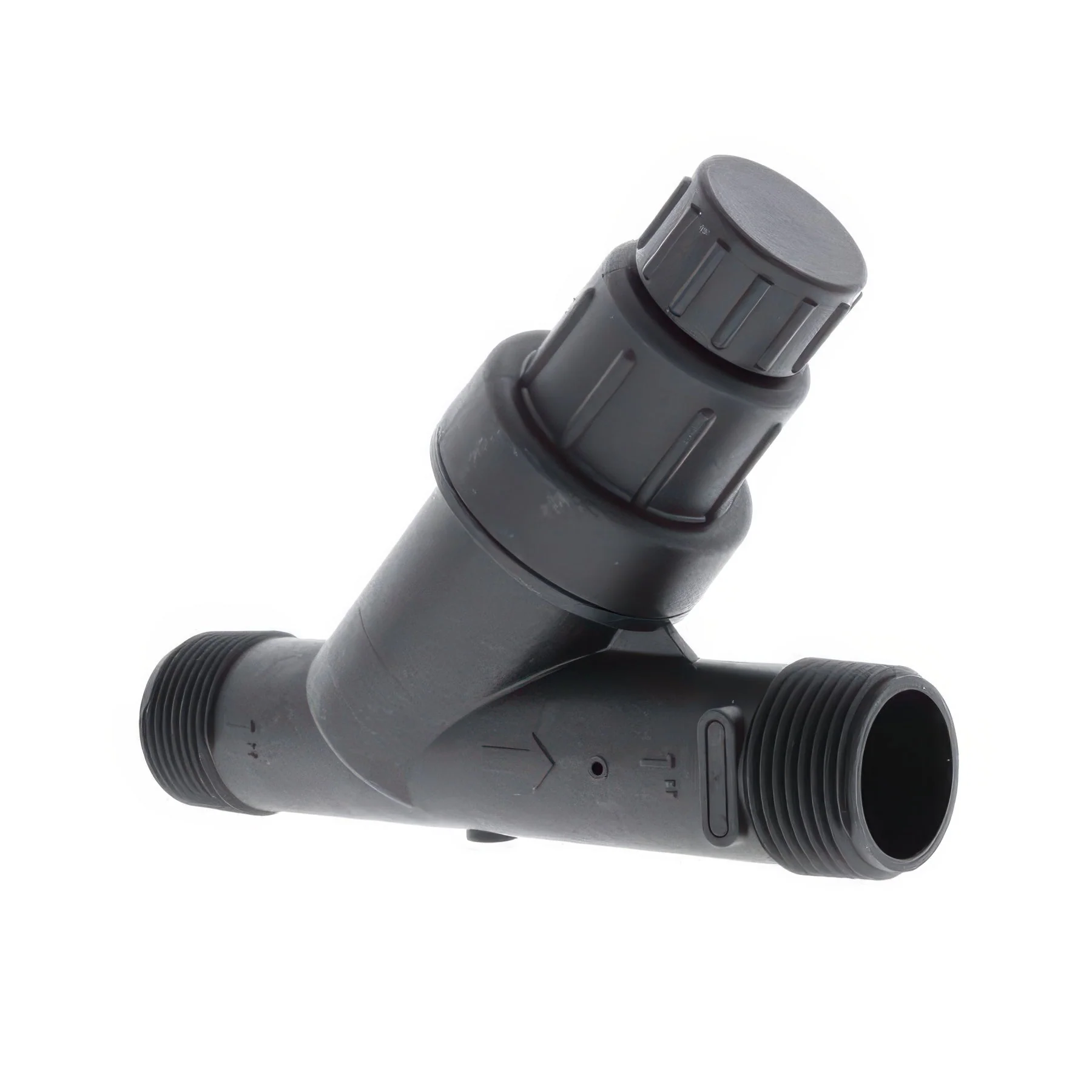

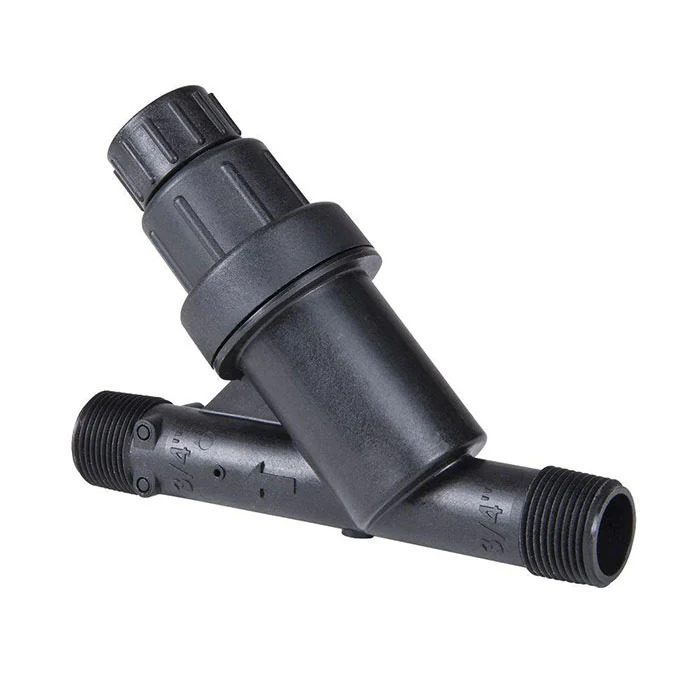

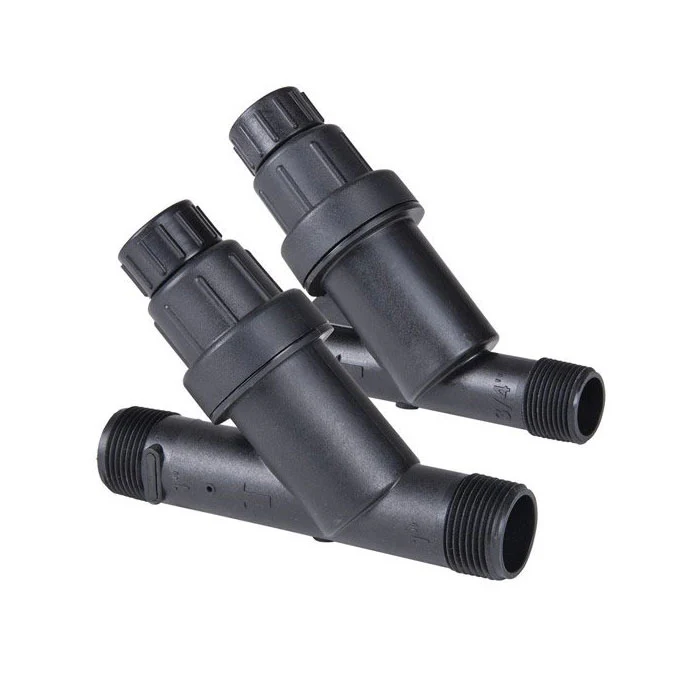

DIG Pressure Regulating Filter - Pack of 5

DIG’s two-in-one, 3/4” and 1” Filter/Pressure Regulator combines a 150-mesh stainless steel filter with a 25-PSI or 45-PSI pressure regulator, reducing the number of components needed to start a drip irrigation zone. The heavy-duty filter/pressure regulator’s compact design fits in smaller-sized areas allowing several drip zones inside an irrigation box. For best results install it upstream of the control valve for reliable operation and easy maintenance of a drip irrigation zone.

---

Features

• Compact design – combines two units in one to allow for faster and easier installation
• All-purpose screen filter with built-in pressure regulator for use in drip irrigation or micro sprinkler systems
• One-piece construction that combines a 150-mesh stainless steel screen filter and a pressure regulator
• Reduces incoming water pressure and protects downstream drip irrigation components
• Stainless steel screen has excellent resistance to most common chemicals
• Easy maintenance – the screen can be removed from the filter for easy cleaning
• Heavy duty glass-filled polypropylene body provides reliable operation under a wide range of pressures
• Available in 3/4” or 1” with a 25- or 45-PSI pressure regulator
• Available with a 3/4” flush cap at the bottom of the filter for easy flushing
• Provides simple conversion of an AC/DC valve into a drip zone and easily fits in a valve box
• Constructed of UV-resistant, durable plastic material to withstand the most adverse conditions for years of reliable operation

---

Specifications

• Operating pressure: up to 120 PSI (up to 8.3 bar)
• Screen: stainless steel 150 mesh/100 micron
• Preset pressure rating: 25 PSI or 45 PSI (1.7 or 3 bar)
• Flow rate: 3/4” up to 6 GPM
• Temperature range: up to 130°F
• Inlet and outlet size: 3/4" and 1” with MNPT
• Material:
  • Body: glass-filled polypropylene
  • Screen: stainless steel
• Thread: to thread: 4 1/4" W
• Length: 6” L
• Cover diameter: 1 3/4”
