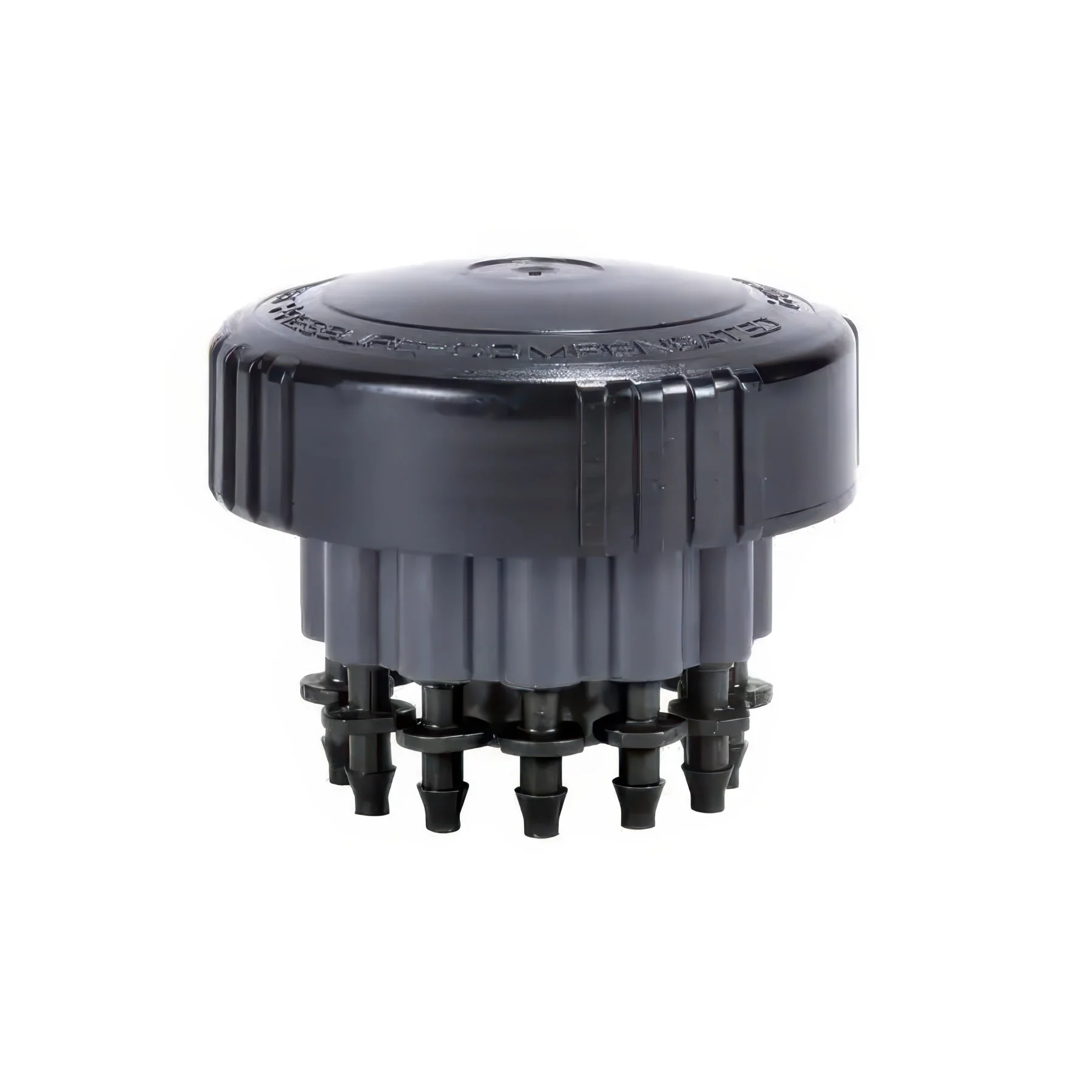

DIG T.O.P. 12 Outlet Pressure Compensating Drip Manifold, Pack of 10

DIG’s TOP is an advanced pressure compensating drip manifold that offers a slow, precise application of water and nutrients directly to the plant’s root zone in a predetermined fashion. It contains flow-regulating, self-flushing drip emitters with a built-in filter that perform at a wide range of operating pressures.

Notes: This item is just the manifold and emitters. DIG has a TOP Manifold Assembly Kit that includes much more for getting started

Features

• Constructed with 12 built-in individually pressure compensating drip emitters
• Self-flushing emitters allow passage of water and minimize clogging
• Interchangeable drip emitters for variable flow rates in a single head
• Color-coded drip emitters and barbs easily identify flow rate at each zone
• Each drip emitter individually filtered (approx. 80 mesh)
• Backup mini disk filter
• Rugged materials to withstand the most adverse conditions
• Install above grade or place below grade in a 6” emitter box
• Inlet plugs provide the option to cap off up to eight drip emitters

Specifications

• Flow rates: .6, 1, 2.2 and 3.3 GPH (2.2, 4, 8.3 and 12.5 L/H)
• Pressure compensating range: 8-80 PSI (.5 - 5.6 BAR)
• Recommended operating pressure: 15-50 PSI (1 - 3 BAR)
• Temperature range: up to 122°F (50°C)
• Inlet size: 1/2” FNPT
• Use with 1/8” (.187" OD) or 1/4” (.150" - .160" ID) distribution tubing
• Materials:
  • Body & Cover: High-impact plastic
  • Filter: Nylon
  • Diaphragm
• Filter requirement: minimum of 120 mesh/ 130 micron,depending on water quality and concentration of dirt particles
• Dimensions: 3” W x 2” H (7.6 cm W x 5 cm H)
