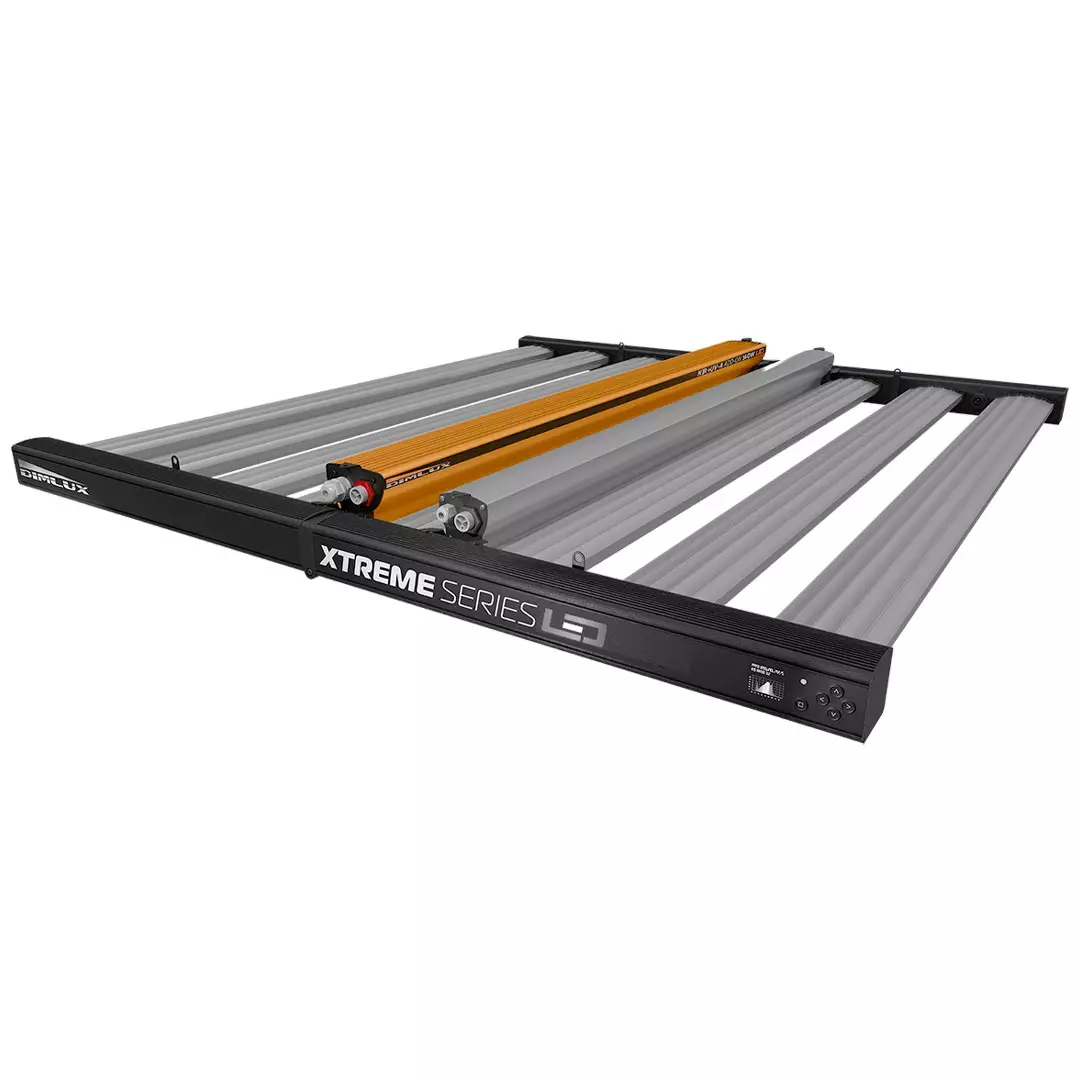

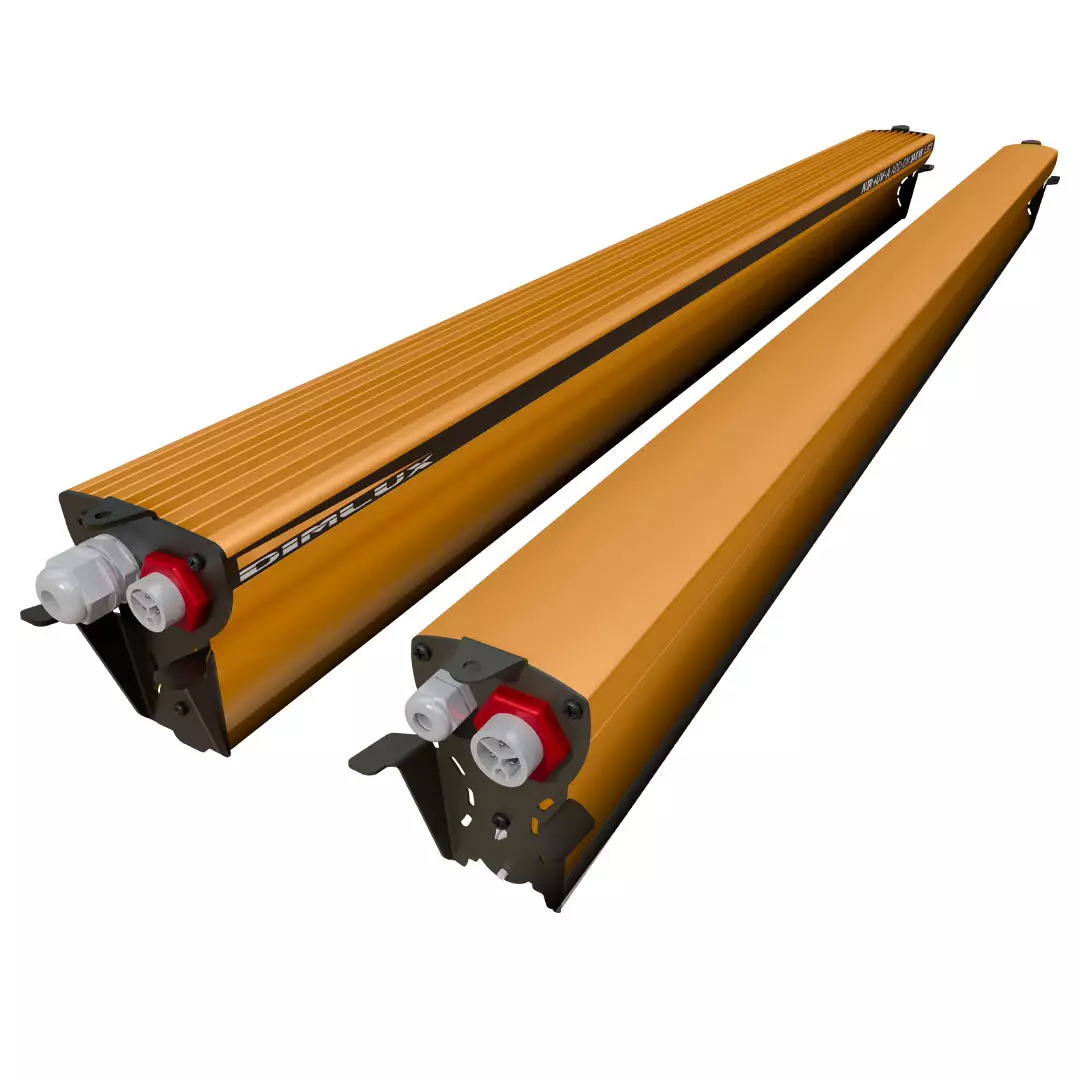

Dimlux Xtreme Series Supplemental LED Grow Light Bar
These add on bars should be used in conjunction with the Dimlux Xtreme Series LED fixtures. The 70W add-on bar is suitable for use with the 500W fixture and the 140W add-on bar is suitable for use with the 750W and 1000W fixtures.
Can be used to accelerate the flower setting on Dimlux LED fixtures. The add-on bars can also help boost photosynthesis (higher DLI). Increases resistance to fungi, and other pathogens. Increases resin production which brings out flavonoids and terpenes.
Features & Benefits
Independent control of the NIR and UV-A channels makes it possible to mix the right amount of grow/control light at any time in the grow cycle. UV-A can be gradually increased as the plant progresses through its growing phase. NIR can be added during the flowering phase, to be used as a photosynthesis booster along with red.
Also, by adding NIR photons at the beginning of the night, the Phytochrome far-red can be converted more quickly to its inactive form Phytochrome red. As a result, the plant will "fall asleep" faster, which increasing photosynthesis during the day and improves metabolism during the night.
General Specifications
- Optics: Patented Deep Penetration Ultra High Transmittance Lens
- Auxiliary Light: Patented Light Pipe Multi Color 65k
- Thermal Management: Passive
- Operating Temperature: 0-40°C / 32-107°F (non-condensing)
- Total Harmonic Distortion (THD): < 10%
- Lifetime L90: > 50,000h
- IP Rating: IP50
- Certifications: CE, UL 8800, UL 1598 Wet Location
- Photobiological Safety: IEC 62471 - Risk Group 2
- CAUTION: UV Emitted from these products
- Warranty: 3 Year Standard

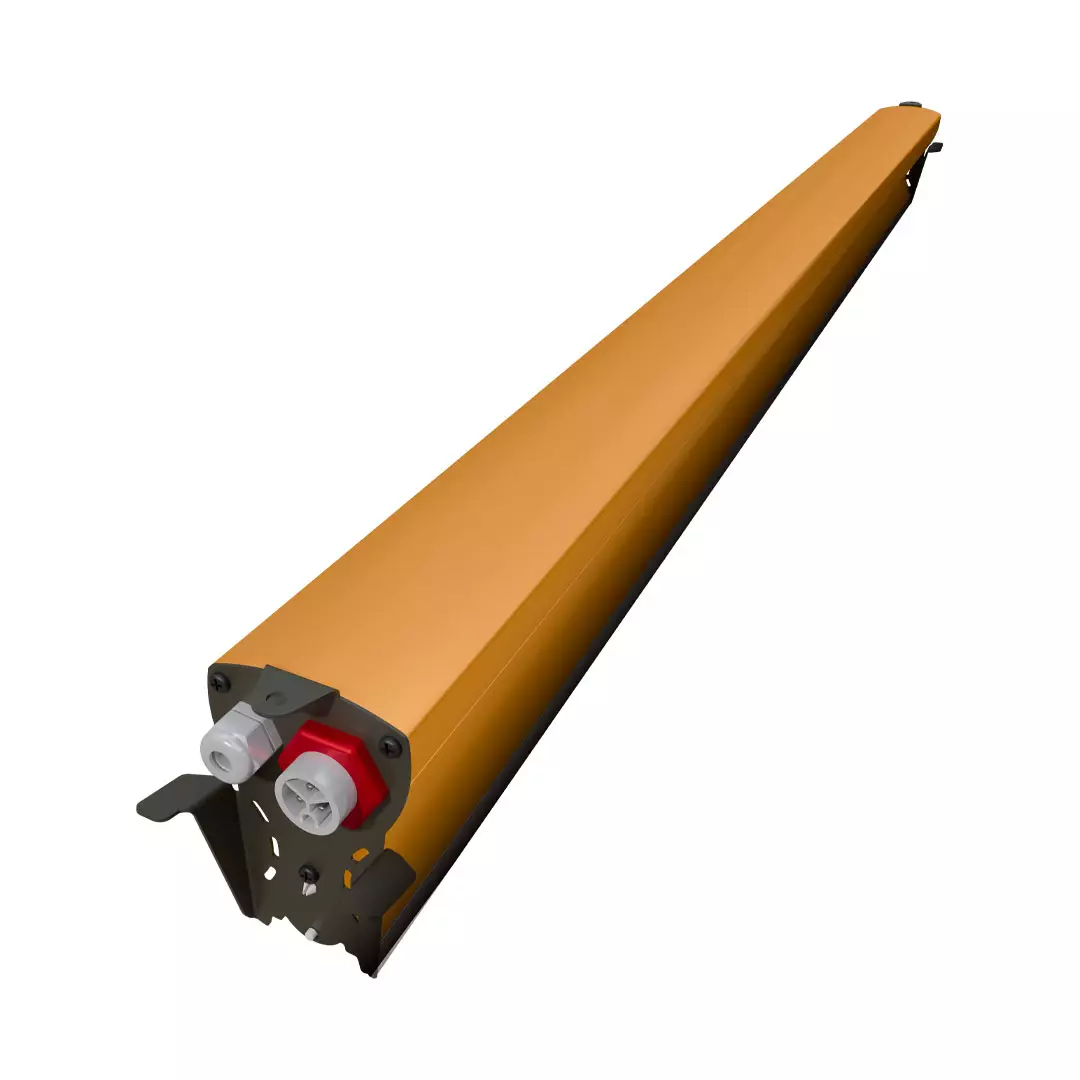

Specifications - XTREME NIR+UV-A 70W
- Light Source: 70W LED Dual Band
- FAR-RED (670-760nm) Photon Flux: 123 μmol/s
- UV-A (370-405nm) Photon Flux: 31 μmol/s
- Total Photon Efficacy (350-800nm): 2.91 μmol/J @ 230-240V AC
- AC Input Power: 72.5W @ 230V AC
- AC Input Voltage: 120-277V AC, 50/60Hz
- AC Input Current: 0.65A @120V / 0.27A @277V
- Rec. Hanging Height: 4' × 4' min. 2'
- Rec. Hanging Height: 40" × 40" min. 20"

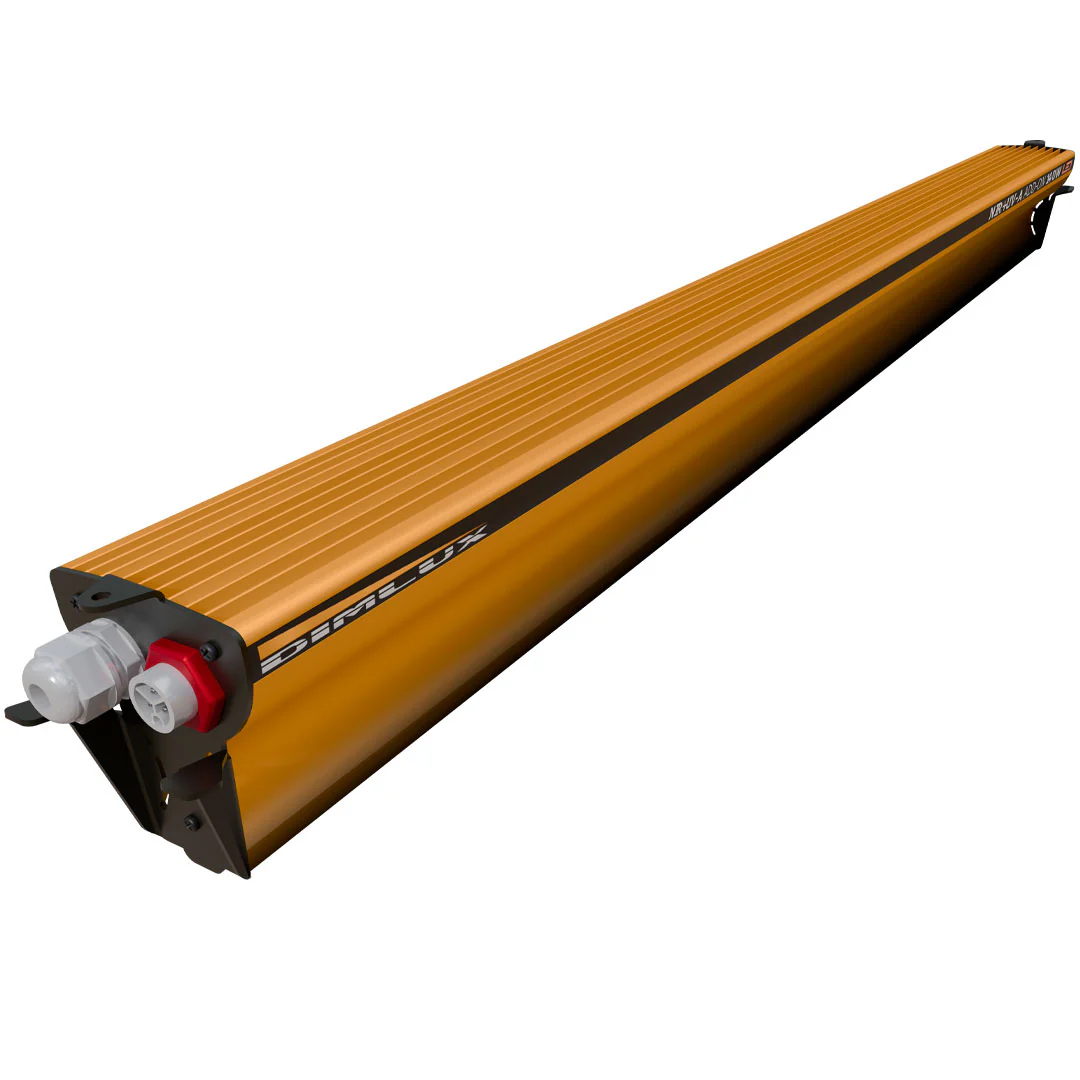

Specifications - XTREME NIR+UV-A 140W
- Light Source: 140W LED Dual Band
- FAR-RED (670-760nm) Photon Flux: 247 μmol/s
- UV-A (370-405nm) Photon Flux: 62 μmol/s
- Total Photon Efficacy (350-800nm): 2.95 μmol/J @ 230-240V AC
- AC Input Power: 156.1W @ 230V AC
- AC Input Voltage: 120-277V AC, 50/60Hz
- AC Input Current: 1.3A @120V / 0.56A @277V
- Rec. Hanging Height: 5' × 5' min. 2.5'
- Rec. Hanging Height: 4' × 4' min. 2'
