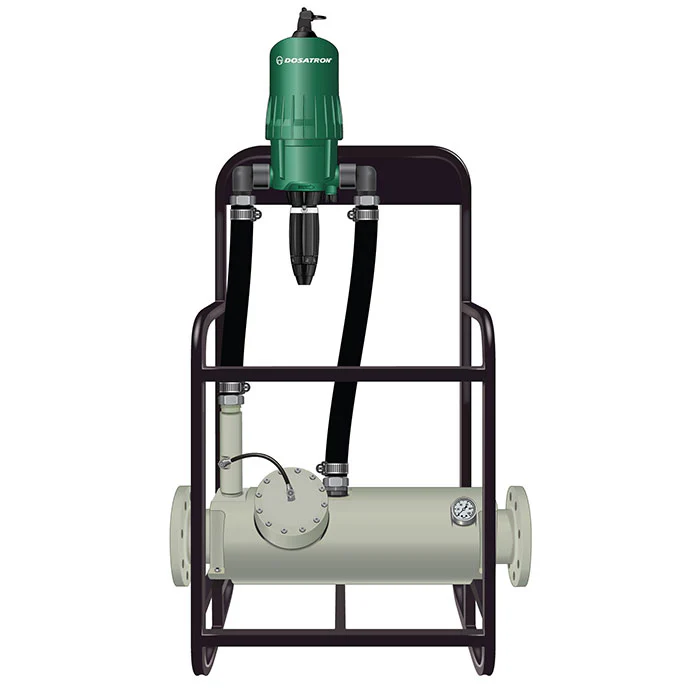

Dosatron D400MZ05 Water Powered Doser, 400 GPM, 1:1000 to 1:200, Viton Seals (D400MZ05VFII)

The water-powered Dosatron D400MZ05-400 GPM is part of the Mega-Flo series. This high flow fertilizer pump has a maximum flow of 400 GPM and a minimum flow of 110 GPM with a 4” flange connection.

It features externally adjustable injection rates and built-in bypass with dimensions of 57” x 31 ½” x 20 ¾”. The D400MZ05 Dosatron injector is great for nutrients, fertilizers, insecticides, fungicides, acids, wetting agents, disinfectants, and cleaners.

Maintneance & Rebuilt Kits

• For a recommended yearly maintenance use Seal kit # PJDI122VVF.

---

Specifications

• Dilution Range: 1:1000 to 1:200 (0.1 to 0.5%)
• Water Flow Range: 110 to 400 GPM
• Operating Pressure Range: 7.25 to 116 PSI
• Weight: 95 lbs.
• Connection Size: 4” flange
• Maximum Temperature: 104° F
• Features: Built-in bypass, externally adjustable injection rate
• Included Accessories: 13’ suction hose, weighted strainer, quick start guide
• Recommended Accessories: 4” FPT Flange Kit - part #: D400FL-KIT
