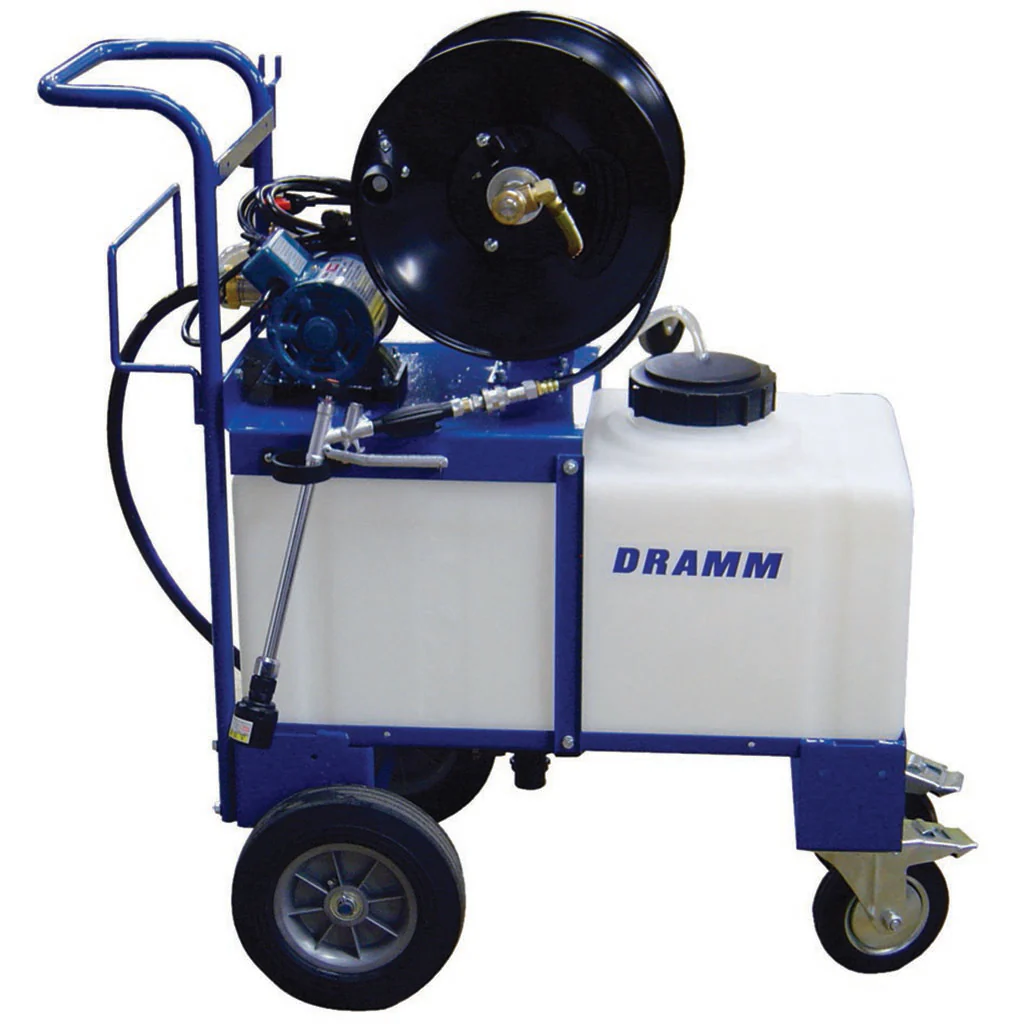

Dramm MSO 100 Sprayer, 20 Gallon

The Dramm MS20-100 is a hydraulic sprayer designed to apply all forms of chemicals. It offers an adjustable pressure regulator with a maximum pressure of 500 psi. Combined with the MS-TG trigger gun and the pump output of 1/2 gpm, the MS20-100 creates a very fine spray for even coverage. The included trigger gun offers an adjustable pattern that will spray from a 20-foot straight stream to a 10-foot mist cone. The MS20-100 includes 100 feet of hose, a hose reel, a cart assembly and a telescoping spray wand. Clean-up is easy and maintenance is simple. The MS20-100 uses oilless bearing and stainless steel pump parts. Manufacturer's 6-month parts and labor warranty.

Features & Benefits

• Fully adjustable pressure – up to 500 PSI
• Trigger Gun with adjustable spray pattern and output rates
• Solid bronze & stainless steel pump construction with oilless bearings
• Applies most chemical formulation
• 100' hose
• 20-gallon solution tank
• Hose reel
• Optional telescoping spray-wand
• Manufacturer's 6-month parts and labor warranty

Technical Data

• Power Supply: 110 V 60 HZ 200 Watts
• Horse Power: 1â?„4 hp
• Maximum Pressure: 500 PSI
• Maximum Discharge Rate: 0.5 GPM
• RPM: 1800 (no load), 1740 (under Load)
• Bearings: Oilless
• Drive System: Direct drive
• Pump Type: Piston
• Plunger Size Cylinder: bore .984" – Stroke .157"
• Spray Gun Adjustable output: 0.0 - 0.5 GPM
• Discharge Hose Length: 33 feet or 100 feet
• Suction & Return Hose Length: 6 feet
• Power Cord Length: 8 feet
• Spray Distance Stream: 20 feet Mist: 10 feet
