J&D Manufacturing Galvanized WM Light Deprivation Exhaust Fan with Light Trap
Using light deprivation to control growth cycles is a strategy that many agriculturists use. Besides bringing production to maturity in a shorter time period, light deprivation also decreases aggressive behaviors while increasing ROI. Minimizing light while still maintaining optimal ventilation in your house can be difficult. J&D’s WM Light Dep Exhaust Fan is the solution you should implement today. Performance data was gathered with the light trap installed. There is no guess work on how much performance is compromised after adding the light trap and shutter
WM Light Deprivation Exhaust Fan Features:
- Allows for greater control over growth cycles
- Full range of sizes, even for small operations
- Test data is for fan with light trap enabling dependable and accurate air exchange calculations

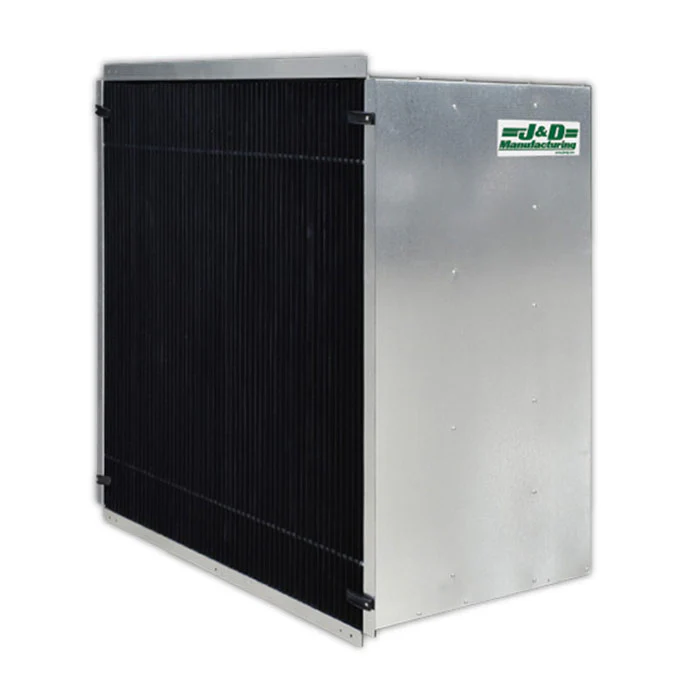

- Fan with light trap mounts flush to the interior of the building freeing up valuable space in your house and eliminating a protruding ledge that can collect debris and possible pathogens

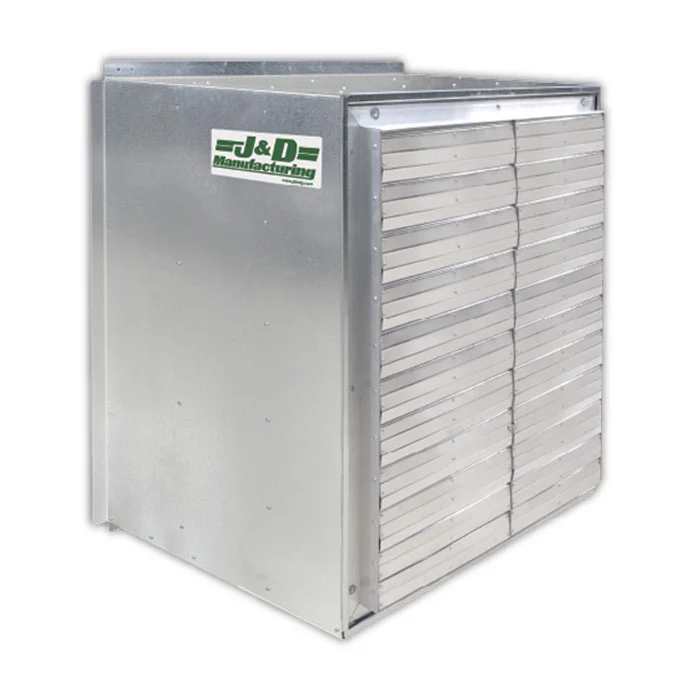

- Aluminum shutter with tie bar/s to minimize unwanted air infiltration and noisy flapping
- 1.5 million:1 light reduction factor
- Washable and Easy-to-assemble
- Nylon Light Trap Clips - For tool-less light trap removal, allowing for quick cleaning and maintenance access
- Durable, corrosion - resistant, 18 gauge galvanized steel housing for long life
| Fan Size | Rough Opening |
|---|---|
| 24" | 35" W x 35" H |
| 30" | 41" W x 41" H |
| 36" | 47 1/4" W x 47 1/4" H |
| 50" | 59" W x 59" H |
Applications:Greenhouse, Poultry
Not able to find the size fan or configuration that you are looking for? Give us a call at 888-815-9763 and one of our sales members will be happy to help you find what you need!
J&D Manufacturing Motor Types
J&D Manufacturing Standard Motor
- Totally Enclosed
- Maintence-free, completely sealed ball bearings
- High-Efficiency
- UL and CUL recognized
- Covered by a 2 Year Warranty
J&D Manufacturing Gold Star Motor
The Gold Star Motor is an excellent option for new installations or upgrading/retrofitting old fans. This extremely versatile motor can be used to run belt or direct drive fans and can be ordered with one of three different mounted options, rigid base, thread, and yoke. The Gold Star Motor can operate in any orientation, and you’ll enjoy the motor’s efficiency and wash-down capability with its impressive IP66 rating. It’s easy to install and easy to maintain making the Gold Star Motor the best choice.
J&D Manufacturing Gold Star Motor Features:
- IP66 rated - Dust tight & Can be washed down from any angle
- Alminum finned housing for incredible heat dissipation
- Multiple mounting options: Rigid base mount, Thread mount, Yoke mount
- Tapered and sealed bearings allow this motor to operate in any position - Vertical, Horizontal, Angled
- Shaft has both flat(s) and keyway for direct and belt drive compatibility
- Progressive rotor design for higher efficiency and longer life
- High efficiency motors with a greater energy savings over standard motors
- Large wire access cover for easy and frustration free wiring installation
- Has built in automatic thermal overload protection
- Class F insulation allows for a higher internal temperature rise over the ambient temperature without reducing the life of the motor
- 3 Year Warranty
| SKU | Fan Size | CFM | Voltage | Phase | Amps |
|---|---|---|---|---|---|
| VF24DMLT1 | 24" | 4,267 | 115/230 | Single | 4.8/2.4A |
| VF24DMLT1-GS | 24" | 4,854 | 115/230 | Single | 5.88/2.94A |
| VF30DMLT1 | 30" | 6,216 | 115/230 | Single | 6.1/3.09A |
| VF30DMLT3-GS | 30" | 6,645 | 115/230 | Single | 6.1/3.09A |
| VF36GGLT1 | 36" | 10,948 | 115/208-230 | Single | 9.0/4.5A |
| VF36GGLT3 | 36" | 11,044 | 230/460 | Three | 3.2/1.6A |
| VF50GGLT1 | 50" | 19,717 | 115/208-230 | Single | 18/9A |
| VF50GGLT3 | 50" | 22,038 | 208-230/460 | Three | 6.2/3.1A |
| SKU | HP | RPM | Motor Type | Hz | Prop Type |
|---|---|---|---|---|---|
| VF24DMLT1 | 1/2 | 1,703 | Standard | 60 | 3 Blade Aluminum |
| VF24DMLT1-GS | 1/2 | 1,652 | Gold Star | 60 | 4 Blade Poly |
| VF30DMLT1 | 1/2 | 858 | Standard | 60 | 3 Blade Aluminum |
| VF30DMLT3-GS | 1/2 | 831 | Gold Star | 60 | 3 Blade Aluminum |
| VF36GGLT1 | 1 | 760 | Standard | 60 | 4 Blade Galvanized |
| VF36GGLT3 | 1 | 754 | Standard | 60 | 4 Blade Galvanized |
| VF50GGLT1 | 2 | 634 | Standard | 60 | 3 Blade Galvanized |
| VF50GGLT3 | 2 | 690 | Standard | 60 | 3 Blade Galvanized |
