J&D Manufacturing Manual Variable Fan Speed Controller

Manual variable fan speed controllers

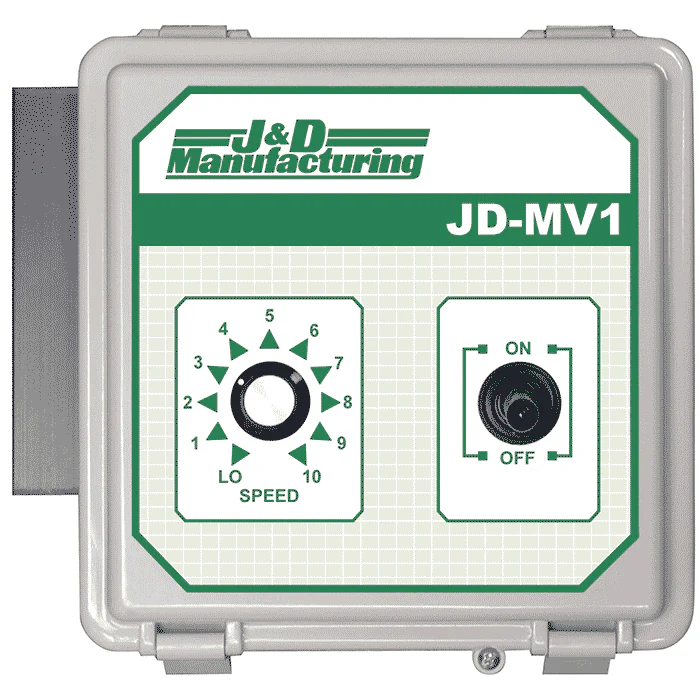

The JDMV1 and JDMV1-C are manual, variable speed controls. It has (1) variable speed output (12 FLA) and a 15 amp overload protection fuse. Use this simple control to ramp up or down the speed of your circulation fans.

Manual speed control for fans that have variable speed-capable motors. Designed for greater heat dissipation. Rubber gasket sealed enclosure. Separate on/off toggle switch and manual variable output knob. Internal adjustable low output setting. 115/230 Volts and 12 amps capacity with a 15 amp overload protection fuse.

This fan speed controller comes with or without a cord. The model with no cord can be wired for 115 or 230 Volts. The -C model comes with an 8 ft. power cord that is ready to be plugged in.

Features of the JDMV1

• (1) Variable speed output (12 FLA)
• 15 amp overload protection fuse
• Rugged and sealed enclosure (6" x 6" x 3-3/4")
• ON/OFF switch and manual variable output knob
• RFI noise suppression filter (provides RFI and EMI suppression)
• Internal adjustable “LO” output setting
• This model comes with no cord can be wired for 115 or 230 Volts.
