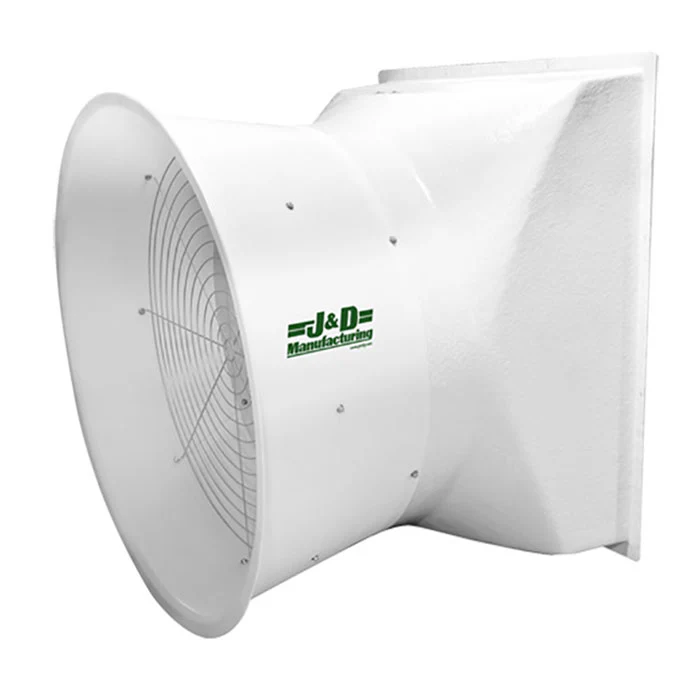

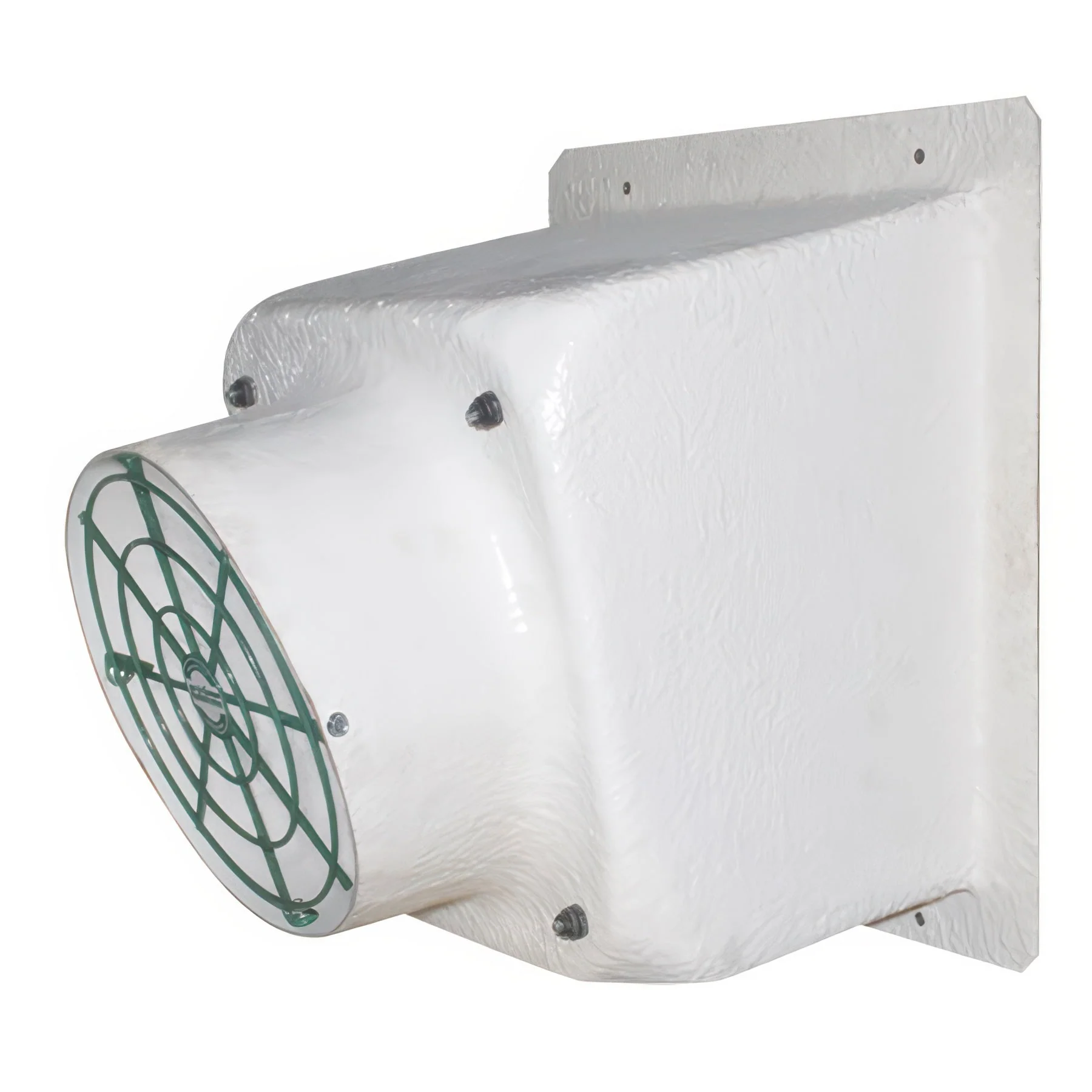

J&D Manufacturing Tornado Fiberglass Exhaust Fan

J&D Manufacturing's Tornado exhaust fan is made to withstand even the harshest agricultural environments.

With it's stainless steel mounts and corrosion-resistant fiberglass housing with gel coat for easy cleaning and minimal dirt build-up, the Tornado exhaust fan will provide many years of high performance ventilation. The fiberglass housing carries a 20-Year warranty. We stand behind our products even in the harshest agricultural environments. The Tornado is a great exhaust fan, especially for all-in, all-out facilities.

Tornado Fiberglass Exhaust Fan Features:

• Available in 16", 24", and 36"
• 20 Year Warranty on fiberglass housing
• Rust-free, corrosion-free, molded fiberglass housing with gel coat for low maintenance
• Stainless steel internal frame and hardware for corrosion resistance
• Your choice of poly or Alminum shutter
• Spring belt tensioner on 50" belt drive models
• Slant wall housing for more efficient airflow
• Performance-enhancing poly cones available on 20"- 50" fans
• 36" models are available with galvanized, nylon, or stainless steel prop
• Lifetime Warranty on cast Alminum props, available on select 50" models
• 50" belt drive model's bearings are eccentric locking, pre-lubricated, permanently sealed and rubber mounted to improve operation and reduce prop fatigue and are covered by a 3 Year Warranty
• Totally enclosed, maintenance-free, high-efficiency motors
  • Select 24" & 36" models use J&D's Gold Star, direct drive, IP66 rated, CSA recognized motor, covered by a 3 Year Warranty
  • Standard models use motors that have completely sealed ball bearings, are UL and CUL recognized, and are covered by a 2 Year Warranty

Applications: Dairy, Greenhouse, Industrial, Poultry

J&D Manufacturing Motor Types

J&D Manufacturing Standard Motor

• Totally Enclosed
• Maintence-free, completely sealed ball bearings
• High-Efficiency
• UL and CUL recognized
• Covered by a 2 Year Warranty

J&D Manufacturing Gold Star Motor

The Gold Star Motor is an excellent option for new installations or upgrading/retrofitting old fans. This extremely versatile motor can be used to run belt or direct drive fans and can be ordered with one of three different mounted options, rigid base, thread, and yoke. The Gold Star Motor can operate in any orientation, and you’ll enjoy the motor’s efficiency and wash-down capability with its impressive IP66 rating. It’s easy to install and easy to maintain making the Gold Star Motor the best choice.

J&D Manufacturing Gold Star Motor Features:

• IP66 rated - Dust tight & Can be washed down from any angle
• Alminum finned housing for incredible heat dissipation
• Multiple mounting options: Rigid base mount, Thread mount, Yoke mount
• Tapered and sealed bearings allow this motor to operate in any position - Vertical, Horizontal, Angled
• Shaft has both flat(s) and keyway for direct and belt drive compatibility
• Progressive rotor design for higher efficiency and longer life
• High efficiency motors with a greater energy savings over standard motors
• Large wire access cover for easy and frustration free wiring installation
• Has built in automatic thermal overload protection
• Class F insulation allows for a higher internal temperature rise over the ambient temperature without reducing the life of the motor
• 3 Year Warranty

NOTE: Not able to find the size fan or configuration that you are looking for? Give us a call at 888-815-9763 and one of our sales members will be happy to help you find what you need!

*NOTE: 3-Ply= 3 Blade Poly, 3-Alm= 3 Blade Aluminum, 2-Ply= 2 Blade Poly, 2-Nyl= 2 Blade Nylon, 3-Glv= 3 Blade Galvanized
