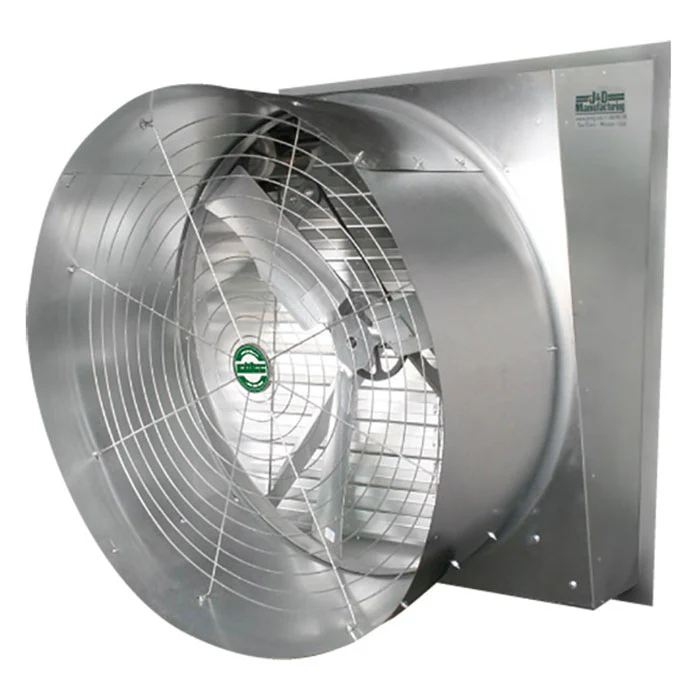

J&D Manufacturing Typhoon Galvanized Slant Exhaust Fan
The Typhoon slant wall exhaust fan from J&D Manufacturing has a heavy gauge galvanized housing and X-frame motor mount to provide a solid structure. Typhoon fans include an aluminum shutter with tie bar and galvanized shutter clips to hold the shutter tight to the frame for less vibration. With a quick twist of the clips, the shutter can be removed for easy cleaning and maintenance. Typhoons are designed for exceptional performance, low maintenance and low operating cost for your agricultural, horticultural or industrial application.
Typhoon Exhaust Fan Features:
- Heavy duty 18 gauge galvanized housing
- Smooth spun venturi to maximize airflow
- Rugged X-frame motor mount for stability and quiet operation
- Available with or without a performance boosting cone
- No cone models include a 1" x 2" wire mesh guard that is hot dip galvanized after welding for superior corrosion resistance and is attached with plastic guard clips to reduce noise and vibration
- Cone models include a hot dip galvanized safety cone guard
- Optional 1/2" x 1" guard available to mount on the intake side to meet OSHA requirements (allowing safe fan installation at any height)
- Ships fully assembled except shutter and/or cone
- 3, 4, or 6 blade galvanized or 3 blade cast aluminum props
- Lifetime Warranty on 3 blade cast aluminum props, available on select 50" models
- Spring belt tensioning system on all belt drive models
- Two speed and variable speed motors available on select models (variable speed requires separate speed control)
- Shaft bearings are pre-lubricated, permanently sealed and rubber mounted with an eccentric locking double set screw collar for smooth operation, and are covered by a 3 Year Warranty
- Totally enclosed, maintenance-free, high-efficiency motors have completely sealed ball bearings, and are covered by a 2 Year Warranty
| Fan Size | Rough Opening | Recommended Side By Side OC Dimension for Fans with Cone |
|---|---|---|
| 24" | 31" W x 32" H | 34"+ |
| 30" | 37" W x 38 1/2" H | 40"+ |
| 36" | 41" W x 42 3/4" H | 46"+ |
| 42" | 49 1/4" W x 51" H | 53"+ |
| 50" | 55" W x 57" H | 60"+ |
Applications: Dairy, Greenhouse, Industrial, Poultry
J&D Manufacturing Typhoon Exhaust Fan Spec Table
| SKU | Fan Size | CFM | Voltage | Phase | Amps |
|---|---|---|---|---|---|
| VNS36S | 36" | 8,085 | 115/230 | Single | 6.6/3.3A |
| VFS36CS1 | 36" | 12,995 | 115/230 | Single | 9.0/4.5A |
| VNS50S | 50" | 18,279 | 115/230 | Single | 9.0/4.5A |
| VNS50S3 | 50" | 18,390 | 230/460 | Three | 3.2/1.6A |
| VFS503CSCA | 50" | 19,397 | 230/460 | Three | 3.2/1.6A |
| VFS50CS | 50" | 19,785 | 115/230 | Single | 9.0/4.5A |
| SKU | Hz | HP | RPM | Cone | Prop Type |
|---|---|---|---|---|---|
| VNS36S | 60 | 1 | 565 | No Cone | 4 Blade Galvanized |
| VFS36CS1 | 60 | 1 | 737 | With Cone | 4 Blade Galvanized |
| VNS50S | 60 | 1 | 592 | No Cone | 3 Blade Galvanized |
| VNS50S3 | 60 | 1 | 588 | No Cone | 3 Blade Galvanized |
| VFS503CSCA | 60 | 1 | 591 | With Cone | 3 Blade Cast Aluminum |
| VFS50CS | 60 | 1 | 591 | With Cone | 3 Blade Galvanized |
