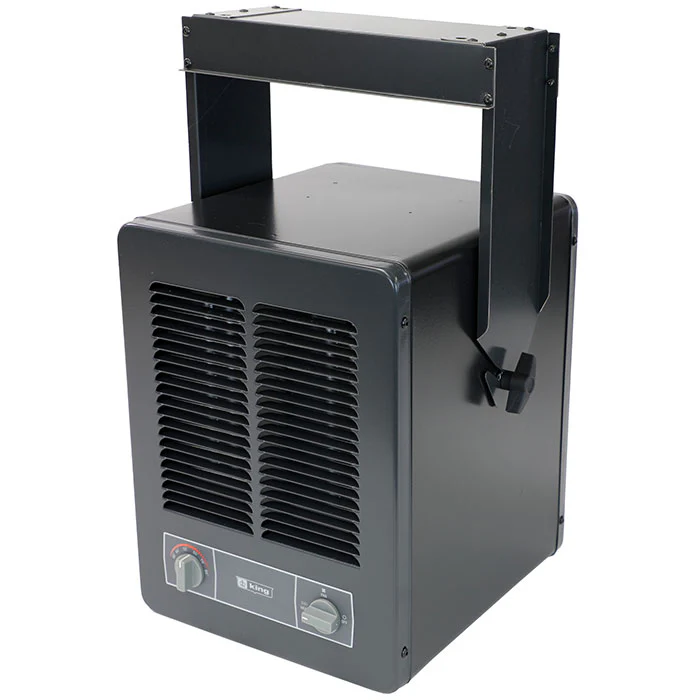

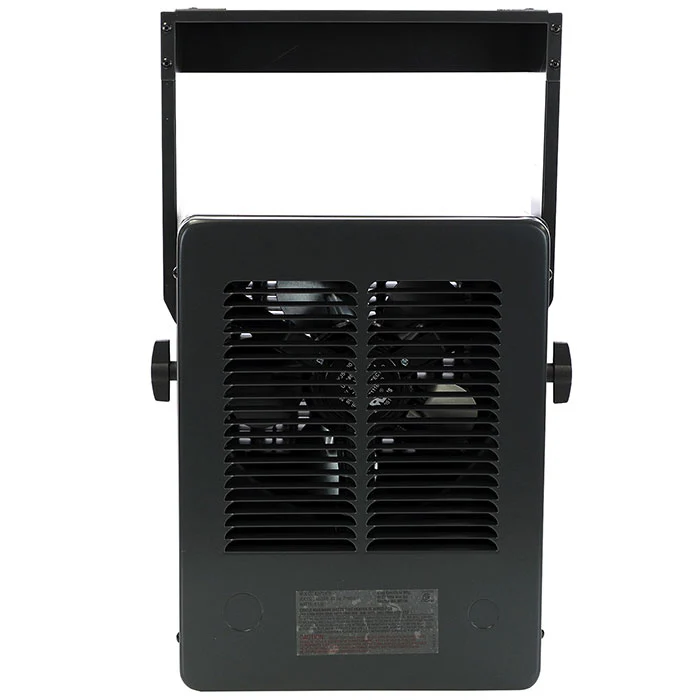

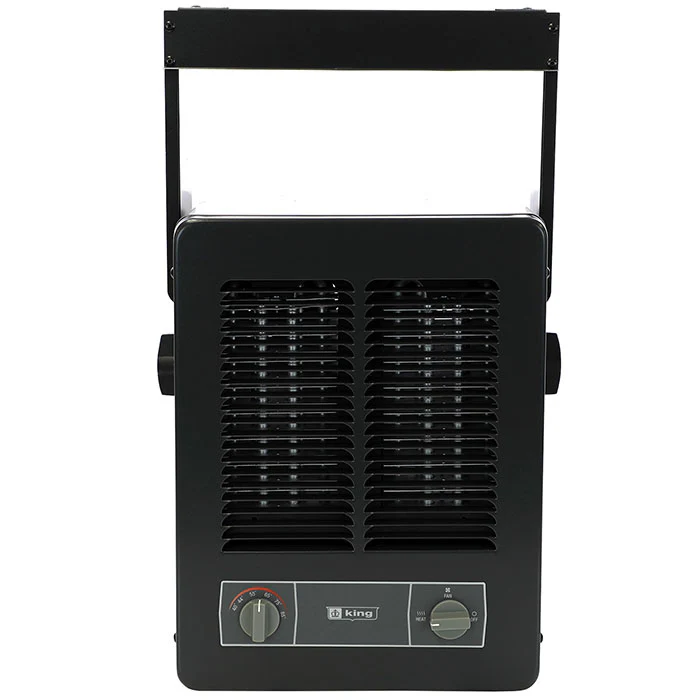

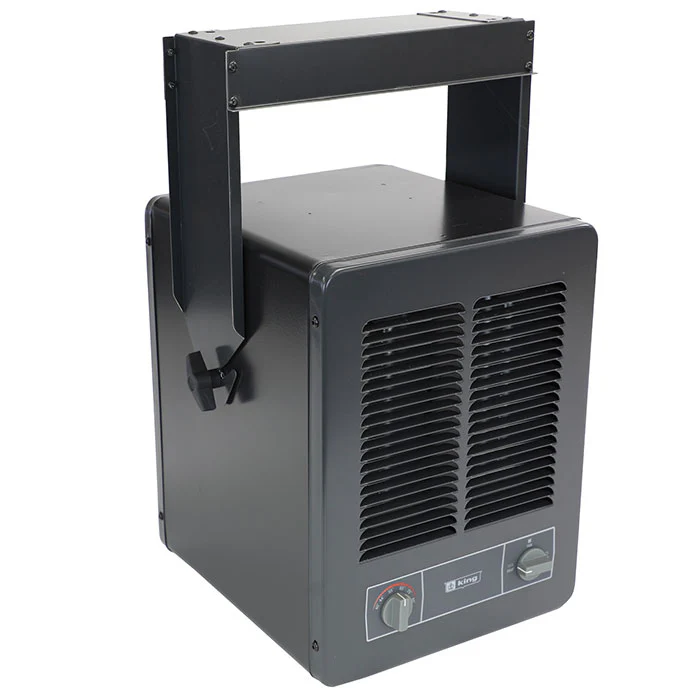

King Electric KBP Compact Heating Unit, 5700 Watt, 1-Ph, 19,454 BTU - 240 Volt

The KBP is the industry standard for multi-wattage garage / shop heaters. It even provides an idea solution for Greenhouse heating. Designed for rugged performance, the flow-through design efficiently moves air by pulling air from the back of the heater and discharges it out the front, easily heating a large space. With high quality components suitable for both residential and commercial applications, it comes standard with a 3-position switch and an accurate built-in thermostat. The integral fan delay continues to dissipate heat from the elements during the cool down period, maximizing the heat exchange in the room. King’s exclusive dual Pic-A-Watt steel fin elements allow customers to select from a range of wattage options, tailoring the heater to an area’s specific heating requirements.

King Electric KBP Compact Heating Unit Features

• Original Pic-A-Watt Element
• Multiple wattage options, to tailor to a room’s specific heating requirements
• Patented Smart Limit Protection
• Built-in Thermostat
• Selector Switch: Fan/Heat/Off
• Long Life Cast Iron Motor
• Fan Delay To Dissipate Heat
• Universal Wall/Ceiling Bracket Included
• Proudly made in the USA
• 5 Year Warranty

King Electric KBP Compact Heating Unit Specs

• Pic-A-Watt Heating Element: Exclusive King multi-tap element allows field adjustment to several wattages at time of installation. Steel sheath elements of various resistance are copper brazed to steel plate fins producing a multi-wattage heating element.
• Built-in Thermostat: Single pole factory installed hydraulic capillary tube thermostat for precision heating control. Operating range 40° to 90° F.
• Fan/Heat/Off Switch: 3-position switch provides heating and summer fan only operation.
• Fan Delay Switch: The fan continues to operate after the thermostat shuts off in order to remove the residual heat left in the elements. Power must not be interrupted.
• CFM: 270
• Universal Mounting Bracket: Combination ceiling/wall bracket is included with every heater.
• Unit Bearing Motor: Permanently lubricated, long life, unit bearing 4-Pole motor with 20 cc of oil. Enclosed rotor provides long-lasting, trouble-free operation. Thermally protected. 1300 RPM.
• Electrically Held Smart Limit Protection: Heater shuts off when an over temperature condition exists and automatically resets when the normal operating temperature returns.
• Tested: UL 2021
• Approval: cCSAus

Note: 3-Phase units do not have Heat / Fan / Off
