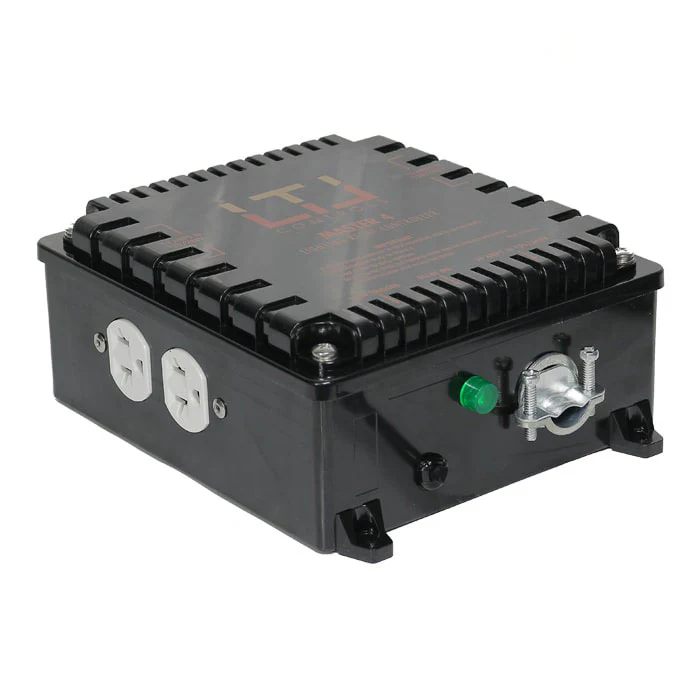

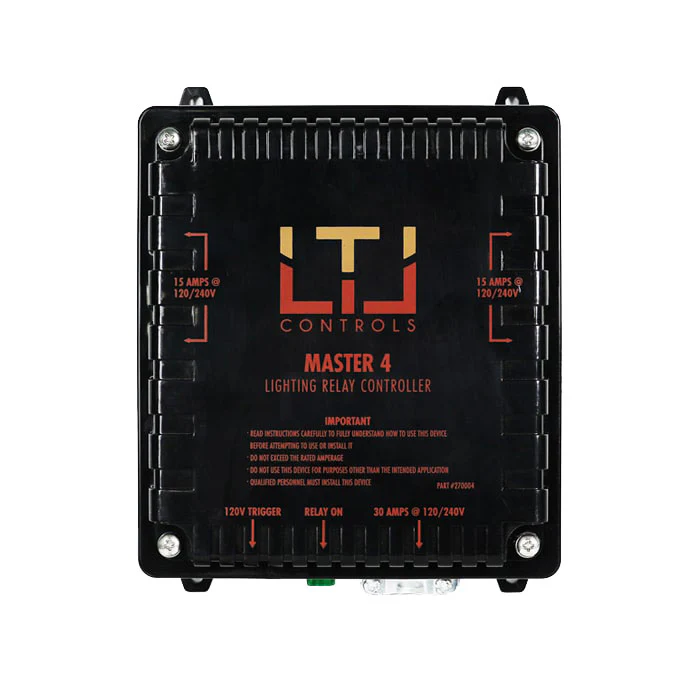

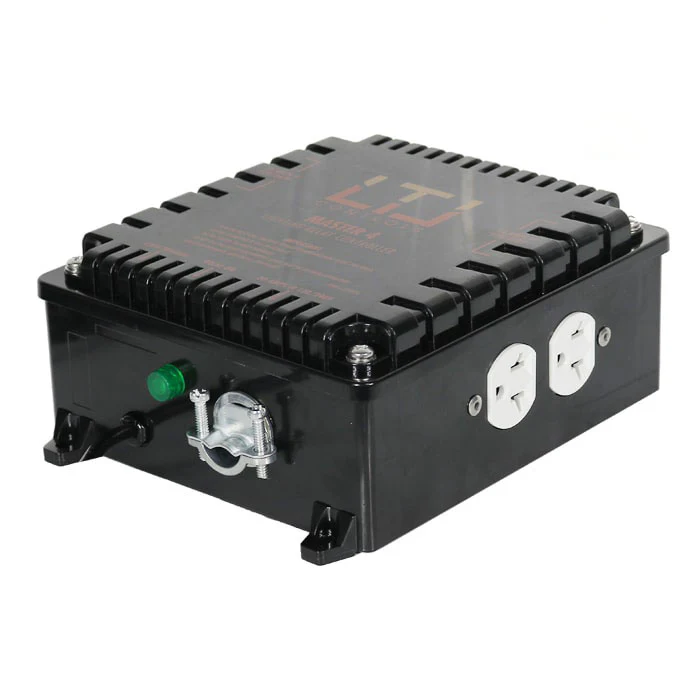

LTL Controls Master 4 Lighting Relay Controller, 120/240 Volt

The Master 4 by LTL Controls is the safest and easiest way to control a 4 HID light setup.

This controller has the capability to run a maximum of (4) 1000 Watt ballasts using 120 Volt power & 240 Volt power, with a maximum relay amperage of 30 Amps, and includes a 120 Volt trigger cable which can be connected to a 120 Volt timing device.

It is recommended to consult a certified electrician before installing or using this controller, especially if you are unfamiliar with electrical wiring and circuits. (120 volt & 240 volt Universal Plug)

Features:

• 120 Volt Trigger Cable
• Can be connected to 120 Volt timing device
• Maximum relay amperage of 30 amps

Technical specifications:

• Main Power Voltage: 120 or 240 volt
• Receptacle Type: Universal
• Maximum Lighting Wattage: 4000 (1000/outlet)
• Maximum Relay Amperage: 30 Amps
• Operating Temp Range: 32-110 °F
• Operating Humidity Range: 0-99% (non-condensing)
• Minimum Relay Operations: 100,00 @ full load
