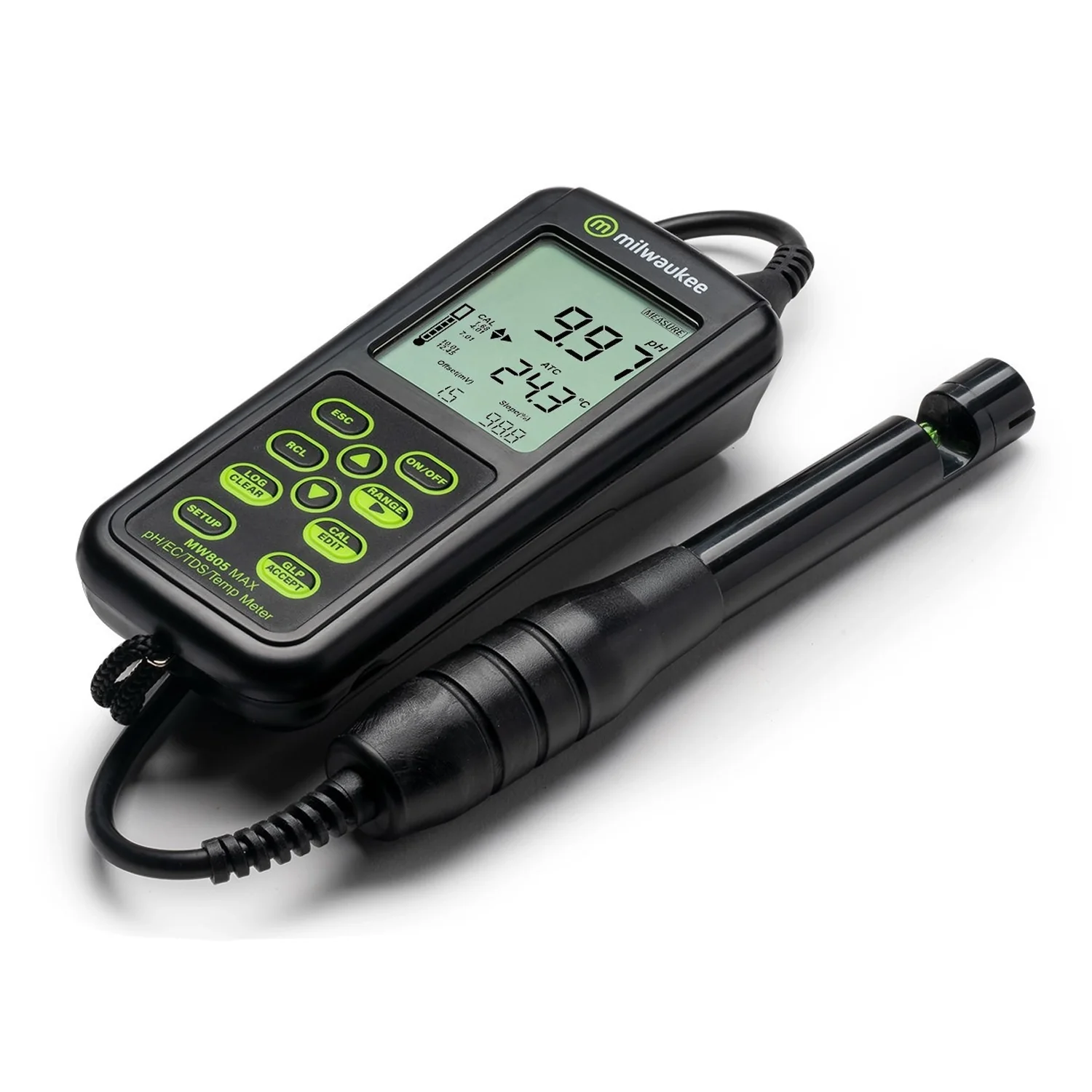

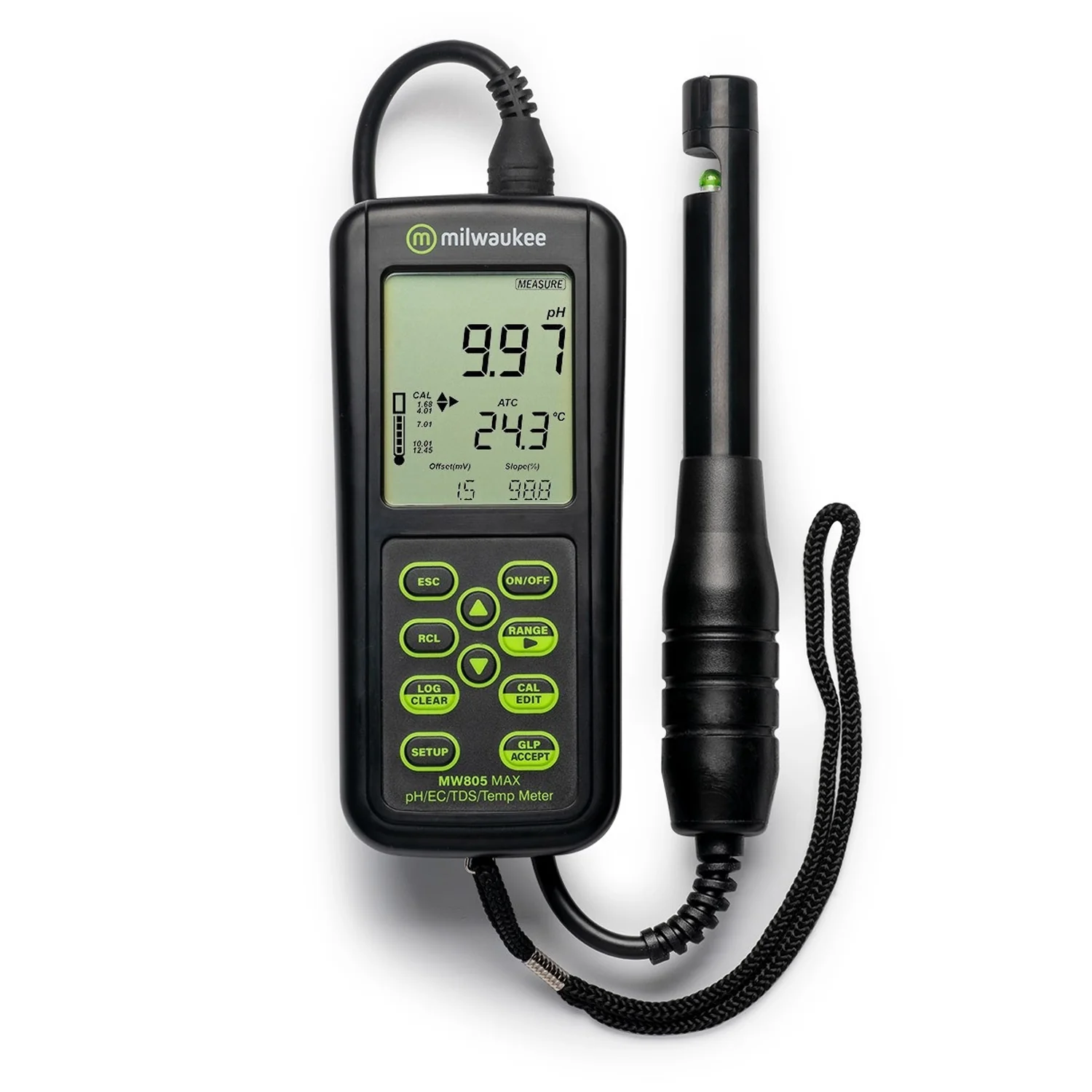

Milwaukee MW805 MAX 4-in-1 pH/EC/TDS/Temp Meter

This Milwaukee MW805 MAX pH/EC/TDS/Temp. 4-in-1 combo meter allows you to measure pH, EC (conductivity), TDS and Temp. with a single meter and one single probe.

pH and conductivity are critical for growers. pH can effect plant nutrient and water uptake and reduce the efficiency of fertilizer, herbicides and pesticides. Managing conductivity helps growers pinpoint fertilizer and other needs.

The Milwaukee MW805 MAX Combo Meter lets you easily and accurately test pH, conductivity and total dissolved solids (TDS) using a single meter and integrated probe.

Simple, portable and rugged. No more juggling multiple electrodes and wires. Automatic temperature compensaton included.

The MW805 MAX is the ultimate solution for pH and nutrient management.

---

Design Features
The design of the MW805 MAX is focused on simple operation and ruggedness. With a single probe, big screen, easy calibration, the MW805 is exceptionally simple to operate.

A tough meter build and a rugged but replaceable probe means that you can expect years of use.

The Milwaukee Combo meter offers:

• pH, conductivity / nutrient EC, TDS (ppt) with automatic temperature compensation
• Selectable TDS factors from .40 to 0.8; defaulet value 0.50
• Stability indicator prompting the user when the readings stabilize
• Dedicated GLP key to store and recall data on system status
• A replaceable, Amplified Combination pH/EC/TDS/Temp probe with a single 3 foot cable (1 meter) for easy use (MA852D/1 probe included)
• A cloth junction on the pH sensor to reduce contamination when measuring fertilizer solutions. Gel filled for long lasting measurments
• A light weight and portable form factor at just 9.2 ounces (260 g) with battery and just over 3 inches wide
• A large easy to read display
• Factory calibration for Temperature and simple, highly accurate, single cell automatic, one point calibration for EC and an automatic up to 5 point calibration for pH
• IP 67 rated rugged case built for field or lab applications
• Specialized design for hydroponic, aquaponic, and greenhouse growers

---

Care and Use

The MW805 MAX Combo Meter includes both a pH and EC sensor in the MA852D/1 integrated probe. Both need maintenance. Properly maintaining your probe will give you fast, accurate results for longer. All pH sensors have a limited life and response time gets longer with age. EC sensors are more robust but can still be affected by residue build up.

Store the pH probe in storage solution MA9015. Only use tap water short-term if MA9015 is not immediately available and NEVER store in distilled Water (DI) or Reverse Osmosis (RO) water. This will damage the sensitivity of the probe.

Here are top four tips.

• 1. Always store with the cap full of Storage Solution MA9015 for BEST RESULTS.
• 2. Clean your probe regularly by soaking in cleaning solution MA9016 for about 20 minutes.
• 3. Calibrate after cleaning and/or storage before testing to adjust for changes in the pH and EC sensor.
• 4. Gently stir the probe in the sample for a faster result.

Calibration
To ensure the meter's stated accuracy, be sure to order the Combo-Start Kit our BEST Value here: pH-START Kit. This has the MA9004 (230 mL bottle of 4.01 calibration Solution), MA9007 (230 mL bottle of 7.01 calibration Solution), MA9015 (230 mL bottle of Storage Solution), MA9016 (230 mL bottle of Cleaning Solution) all in one kit. For the EC/TDS you will need MA9061.

Sine the MAX MW805 can calibrate of to 5 pH points for HIGH accuracy, you may need to check our SOLUTIONS Tab.

---

Specifications for Milwaukee MW805 PRO
