Netafim Low Volume Control Zone Kit

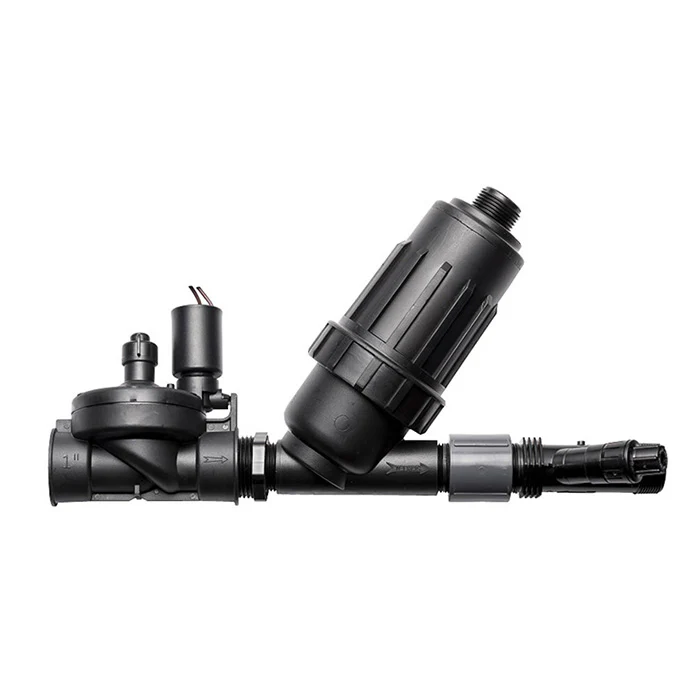

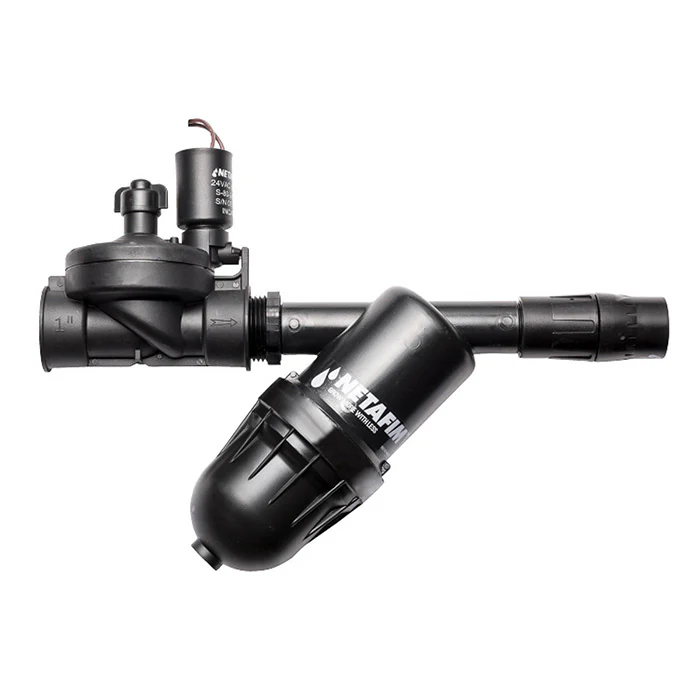

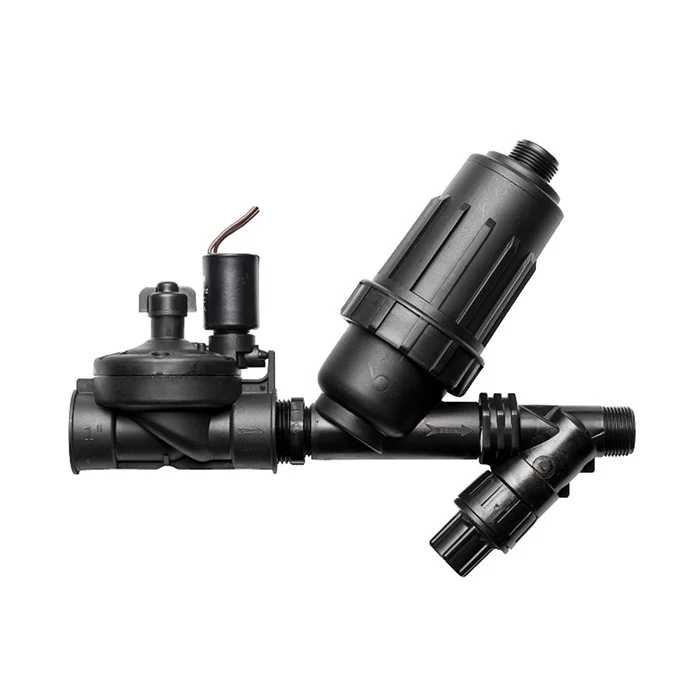

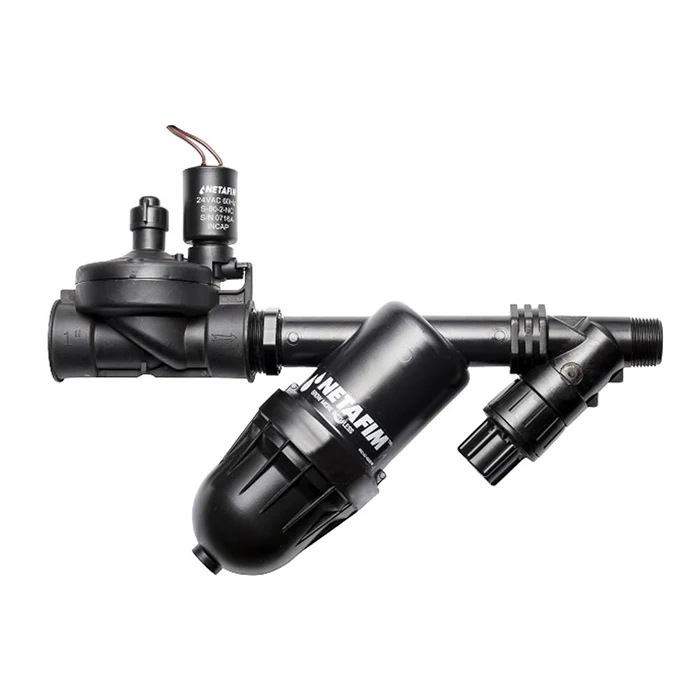

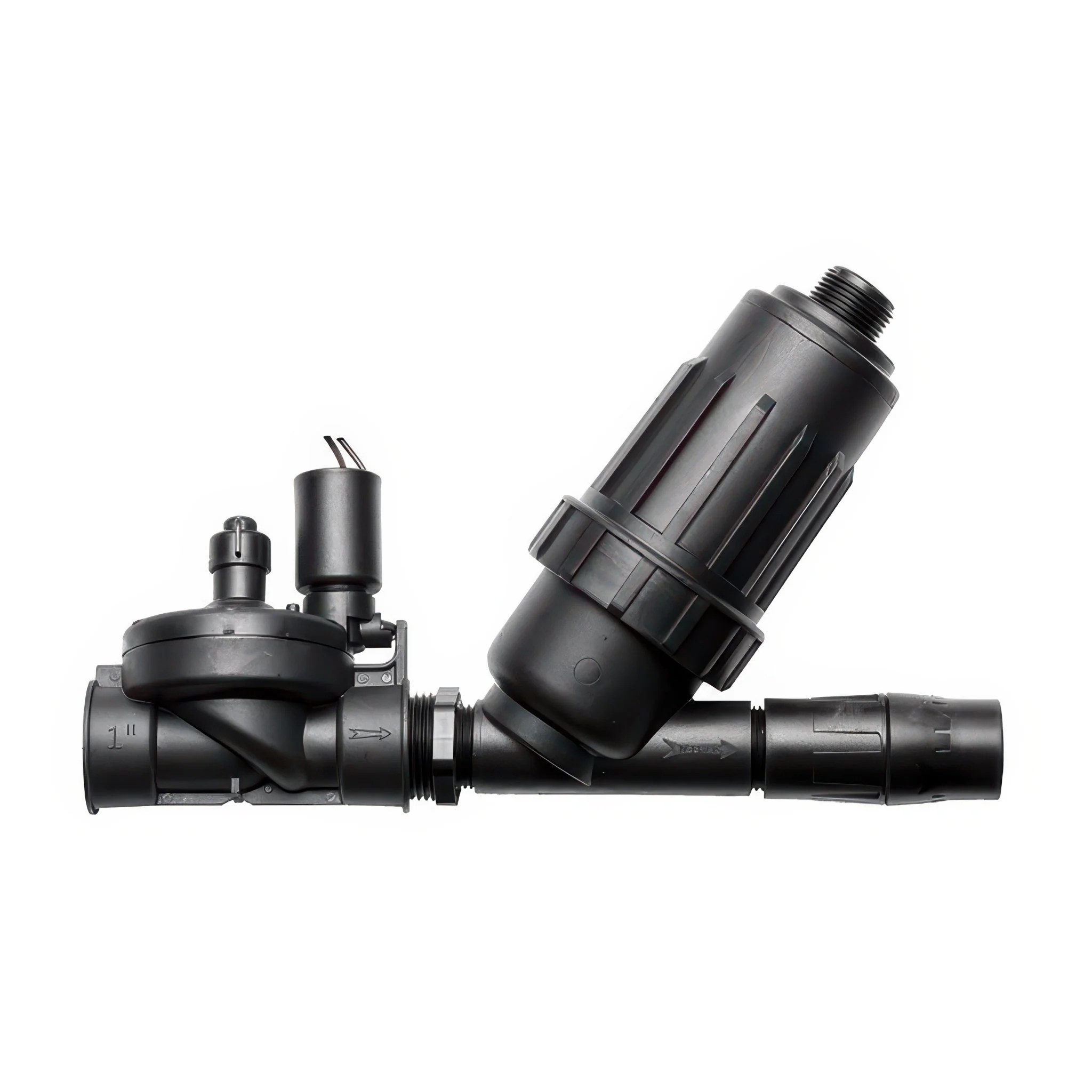

Netafim's Low Volume Control Zone Kits include a Valve, Filter, and Pressure Regulator completely assembled for easy, cost-effective installation.
Applications
- Designed for all dripline, drip and micro-spray zones
- Residential or commercial landscape irrigation applications
- For zones between 0.25 and 35 GPM
- Control Valves are 24VAC
Flow Rates
-
3/4" & 1" Low FLow Kits
- Flow Range: 0.25 - 4.4 GPM
- Reglated Pressure: 42 PSI
-
3/4" & 1" High FLow Kits
- Flow Range: 4.5 - 17.6 GPM
- Reglated Pressure: 57 PSI
-

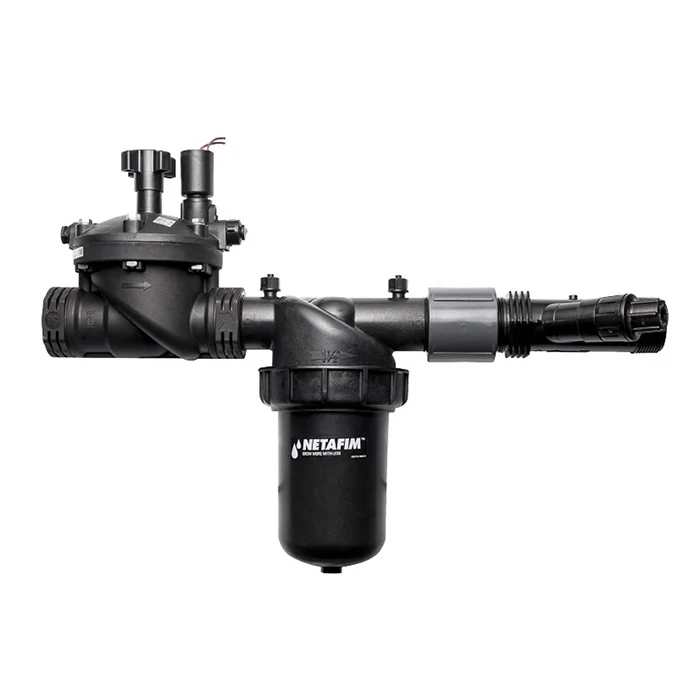

1½" High FLow Kits
- Flow Range: 11 - 35 GPM
- Reglated Pressure: 57 PSI
Features & Benefits of Low Volume Control Zone Kits
Lowest Pressure Loss In The Industry
Get more zone control for your money with smaller units and less units required for higher flows.
100% Compatible With All 2-Wire Controllers
Save installation costs and get peace of mind with this completely 2-Wire compatible model. Inrush and holding currents are 50-60% lower than the industry average allowing the industry’s longest wire runs from valve to controller.
Ideal Drip Zone Pressure Regulation
Achieve maximum hydraulic performance with higher pressure outputs designed to deliver the longest run lengths.
Disc Filter Models Available
Get the best possible protection for your drip system with the proven performance of disc filtration.
Specifications
| Residential & Commercial Low Flow |
Residential & Commercial High Flow |
Commercial | |
|---|---|---|---|
| 1" FPT INLET x 3/4" FPT OUTLET | 1" FPT INLET x 3/4" MPT OUTLET | 1½" FPT INLET x 1½" MPT OUTLET | |
| Valve Specifications | |||
| Size | 1" | 1" | 1½" |
| Pressure Regulator Specifications | |||
| Size | 3/4" | 3/4" | 1½" |
| Regulated Pressure | 42 PSI | 57 PSI | 57 PSI |
| Manual Filter Specifications | |||
| Size | 3/4" | 3/4" | 1½" |
| Disc Filter Mesh | 140 Mesh | 140 Mesh | 140 Mesh |
| Screen Filter Mesh | 155 Mesh | 155 Mesh | 155 Mesh |
