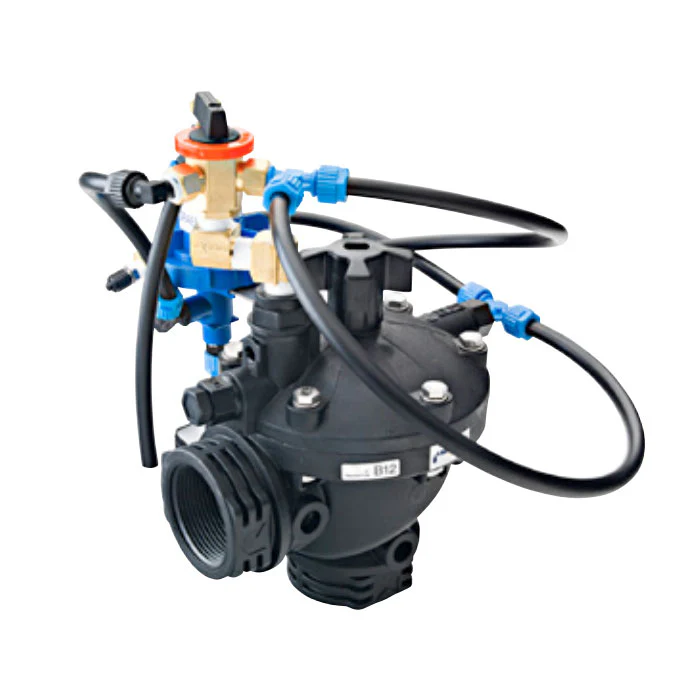

Netafim Series 80 3-Way Angle Control Valve
Netafim 3-Way Series 80 Nylon Control Valves
With lower friction loss providing improved performance, Netafim Series 80 Nylon Control Valves are specifically designed for greenhouse applications. Offered with a nylon body (which is durable and corrosion-resistant), 2-Way or 3-Way electric solenoid and globe or angle configurations. These valves have a quick reaction to opening and closing which is ideal for mist systems. The low inrush and holding currents allows longer wire runs from valve to controller. A new drip-tight diaphragm provides a tight seal. Flow control stem allows manual control and the simple inline installation requires minimal maintenance with maximum dependability.
Features
- Comes with 24VAC Solenoid standard. Please reach out for other voltage options.
- All control systems (pilot and solenoid) are assembled on the bonnet. No tubes are connected to the valve body.
- Tight sealing valve with fully supported diaphragm.
- Straight or angle with globe configuration activated by a fully supported diaphragm
- ntegrated check valve ensures valve remains closed until the controller designates opening.
- Vertical or horizontal installations
Applications
- Pressure regulation of irrigation systems - small blocks
- For remote control, master valve, automated or manual operations - accurate irrigation control
- Greenhouse and Nursery irrigation including hydroponic and mist systems
Specifications
- Recommended flow range:
- 1 ½” valve - .25 to 110 GPM
- 2” valve - .25 to 176 GPM
- Valve Configurations:
1 ½” and 2” valves - Globe or Angle - Minimum Operating Pressure: 7 psi
- Maximum Operating Pressure: 150 psi
- Maximum Water Temperature: 140° F
- Optional Solenoid Voltage: 24VDC, 12VDC, 12VDC latching, 120VAC
Materials
- Body, Bonnet, Diaphragm Seat: Glass Reinforced Polyamide (GRP)
- Nuts, Bolts, Washers: Stainless Steel 304
- Spring: Stainless Steel AISI 302
