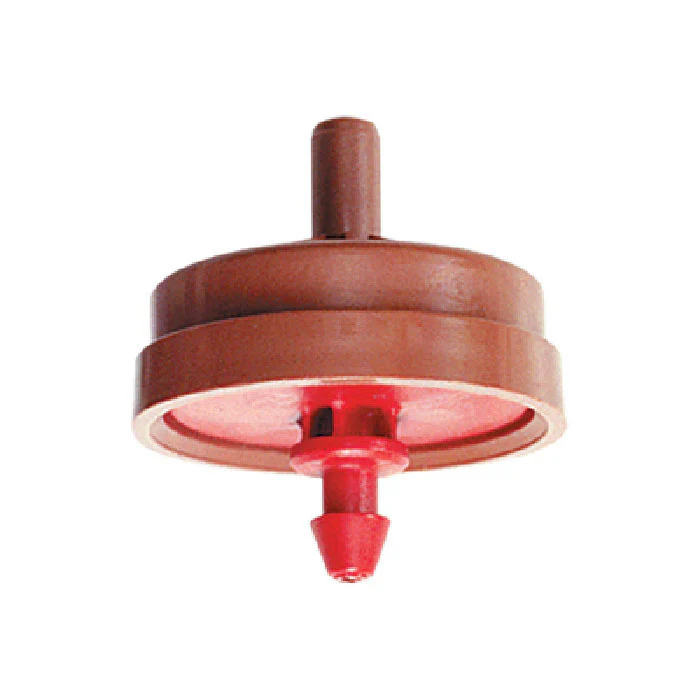

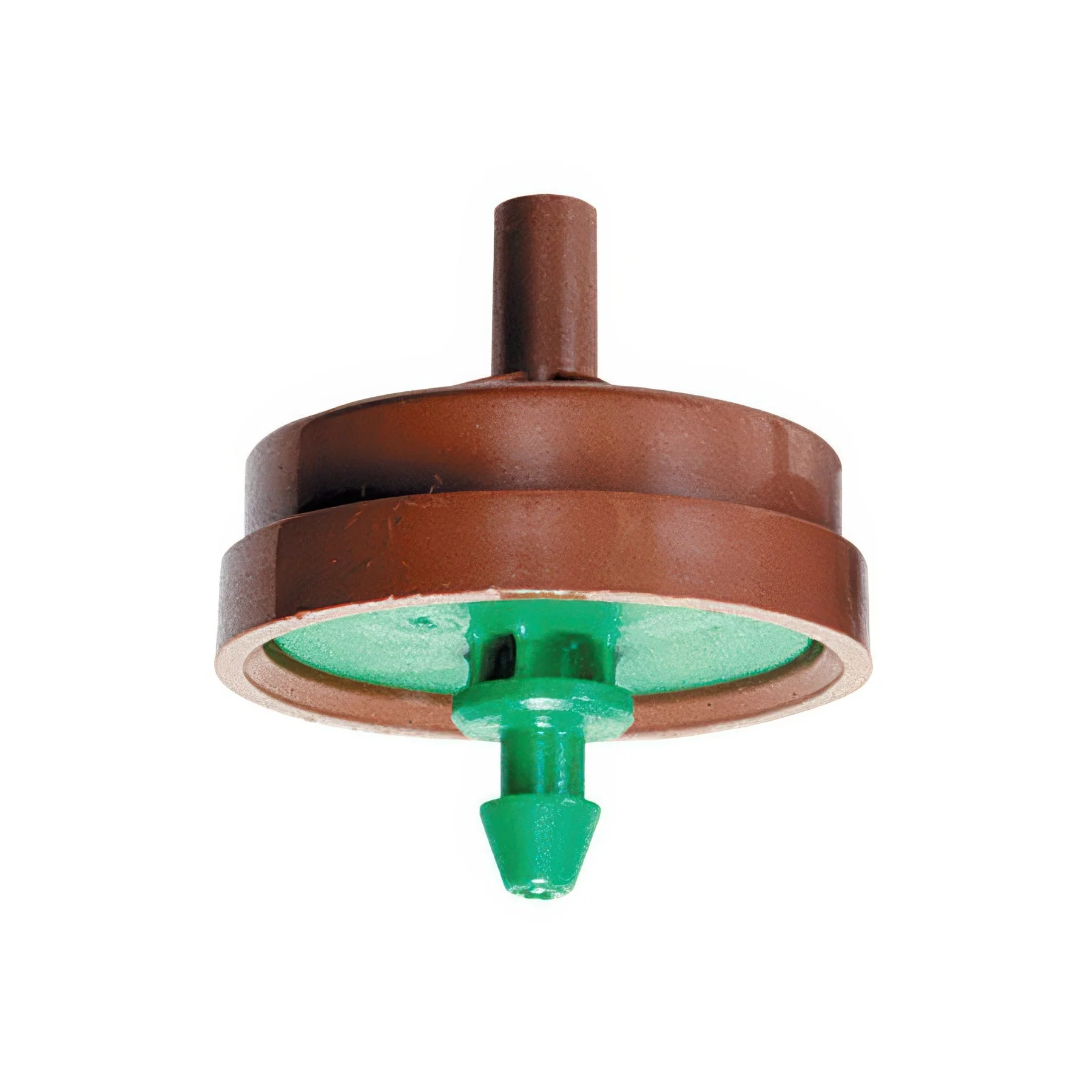

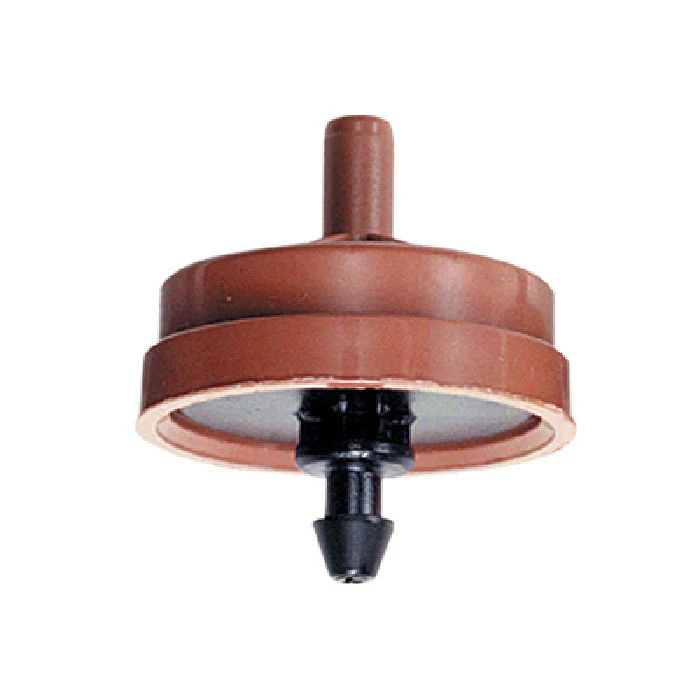

Netafim Techflow Pressure Compensating Emitter with Nipple Outlet
Techflow Emitter
The unique design of the Netafim Techflow Emitters regulates flow and provides continuous self-cleaning action during operation. These emitters have a 2.2 PSI internal check valve that helps prevent low emitter drainage holding back up to a 5 ft column of water. The anti-siphon operation prevents contaminants from being drawn into the emitter. The Techflow Emitters are pressure compensating and deliver the same flow from 14.5 to 58 PSI.
Applications
- For use with systems with a wide range of pressure variations (14.5 to 58 psi)
- Install on-surface or subsurface
- Wide range of plant spacings
- Hanging baskets, flower baskets, pots, interiorscapes
Specifications
| Flow Rates | 1.0 and 2.0 GPH |
|---|---|
| Pressure compensation range | 14.5 to 58 psi |
| Maximum pressure | 58 PSI |
| Barb size | Inlet 0.160” - 0.170” Outlet 0.160” |
| Recommended minimum filtration | 120 mesh |
