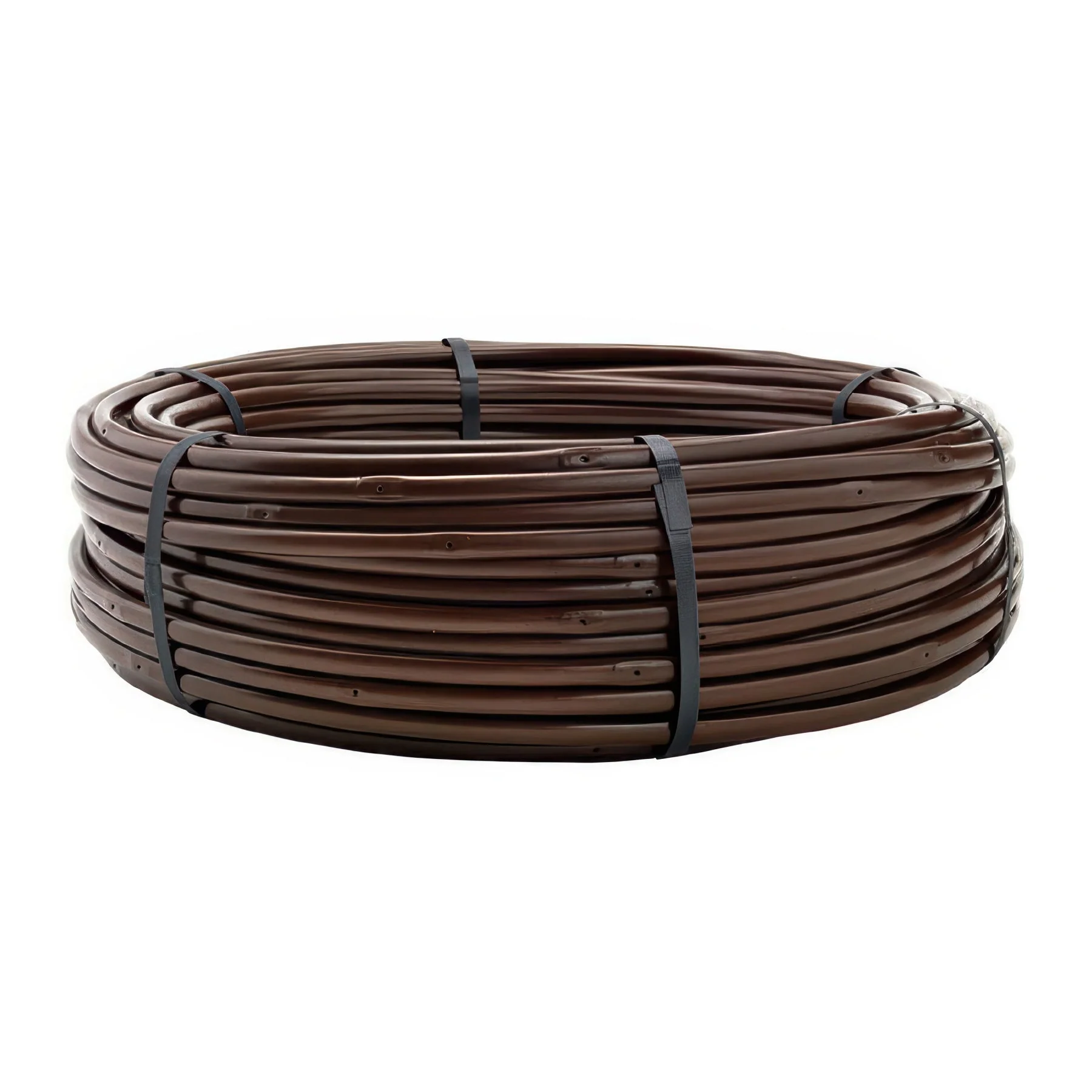

Netafim Techline CV Dripline

Netafim Techline CV Dripline

Techline® CV

Netafim continues to be the leader in innovation in the Landscape & Turf dripline market by introducing Techline™ CV manufactured with post-consumer recycled polyethylene. Techline™ CV Dripline has the most technologically advanced dripper available. Techline™ CV’s Check Valve feature keeps water from draining out of the dripline after zone shut-down.

Tubing O.D. is 17mm or 0.66 in.

Why Techline™ CV?
  • Laser Etched, For Easy Identification
  • Made With Post-Consumer Recycled Material
  • Qualifies for Use on Leed Projects
  • UV Resistant Tubing
  • Self-Contained, One-Piece Dripline Construction
Product Advantages
  • Unique Patented Emitter Design with Physical Root Barrier
    Offset flow path, extra-large bath area, and raised outlet prevent root intrusion without chemical reliance.
  • Pressure Compensating
    Precise and equal amounts of water are delivered over a broad pressure range.
  • Continuous Self-Flushing Emitter Design
    Flushes debris as it is detected, throughout operation, not just at the beginning or end of a cycle, ensuring uninterrupted emitter operation.
  • Emitter With Anti-Siphon Feature
    Prevents ingestion of debris into tubing caused by vacuum.
Applications
  • Reclaimed (recycled) water use
  • Subsurface or on-surface installations
  • Turf, shrubs, trees and flowers
  • Sports turf, tennis courts, golf courses
  • Slopes
  • Longer lateral runs
  • Curved, angular or narrow planting areas
  • High traffic/high liability areas
  • Areas subject to vandalism
  • High wind areas
  • At-grade windows
  • Green walls, green roofs
  • Raised planters
Specifications
  • Broadest choice of emitter flow rates: 0.26, 0.4, 0.6 and 0.9 GPH
  • Emitter spacings: 12”, 18“ and 24”
    (24” spacing available for 0.6 and 0.9 GPH only)
  • Pressure compensation range: 14.5 to 58 psi
  • Bending radius: 7”
  • Maximum system pressure: 58 psi
  • Minimum system pressure: 14 psi
  • Tubing diameter: 0.66“ OD; 0.56” ID; 0.050” wall
  • Coil length: 100’, 250’, 500’, 1,000’
  • Minimum filtration: 120 mesh
  • Diaphragm made of silicon′
  • ISO 9261 Standard Compliance
Select Emitter Spacing
Select Choose GPH and Drip Line Length
From $6.33

Original: $21.11

-70%
Netafim Techline CV Dripline—

$21.11

$6.33

Product Information

Shipping & Returns

Description

Techline® CV

Netafim continues to be the leader in innovation in the Landscape & Turf dripline market by introducing Techline™ CV manufactured with post-consumer recycled polyethylene. Techline™ CV Dripline has the most technologically advanced dripper available. Techline™ CV’s Check Valve feature keeps water from draining out of the dripline after zone shut-down.

Tubing O.D. is 17mm or 0.66 in.

Why Techline™ CV?
  • Laser Etched, For Easy Identification
  • Made With Post-Consumer Recycled Material
  • Qualifies for Use on Leed Projects
  • UV Resistant Tubing
  • Self-Contained, One-Piece Dripline Construction
Product Advantages
  • Unique Patented Emitter Design with Physical Root Barrier
    Offset flow path, extra-large bath area, and raised outlet prevent root intrusion without chemical reliance.
  • Pressure Compensating
    Precise and equal amounts of water are delivered over a broad pressure range.
  • Continuous Self-Flushing Emitter Design
    Flushes debris as it is detected, throughout operation, not just at the beginning or end of a cycle, ensuring uninterrupted emitter operation.
  • Emitter With Anti-Siphon Feature
    Prevents ingestion of debris into tubing caused by vacuum.
Applications
  • Reclaimed (recycled) water use
  • Subsurface or on-surface installations
  • Turf, shrubs, trees and flowers
  • Sports turf, tennis courts, golf courses
  • Slopes
  • Longer lateral runs
  • Curved, angular or narrow planting areas
  • High traffic/high liability areas
  • Areas subject to vandalism
  • High wind areas
  • At-grade windows
  • Green walls, green roofs
  • Raised planters
Specifications
  • Broadest choice of emitter flow rates: 0.26, 0.4, 0.6 and 0.9 GPH
  • Emitter spacings: 12”, 18“ and 24”
    (24” spacing available for 0.6 and 0.9 GPH only)
  • Pressure compensation range: 14.5 to 58 psi
  • Bending radius: 7”
  • Maximum system pressure: 58 psi
  • Minimum system pressure: 14 psi
  • Tubing diameter: 0.66“ OD; 0.56” ID; 0.050” wall
  • Coil length: 100’, 250’, 500’, 1,000’
  • Minimum filtration: 120 mesh
  • Diaphragm made of silicon′
  • ISO 9261 Standard Compliance
