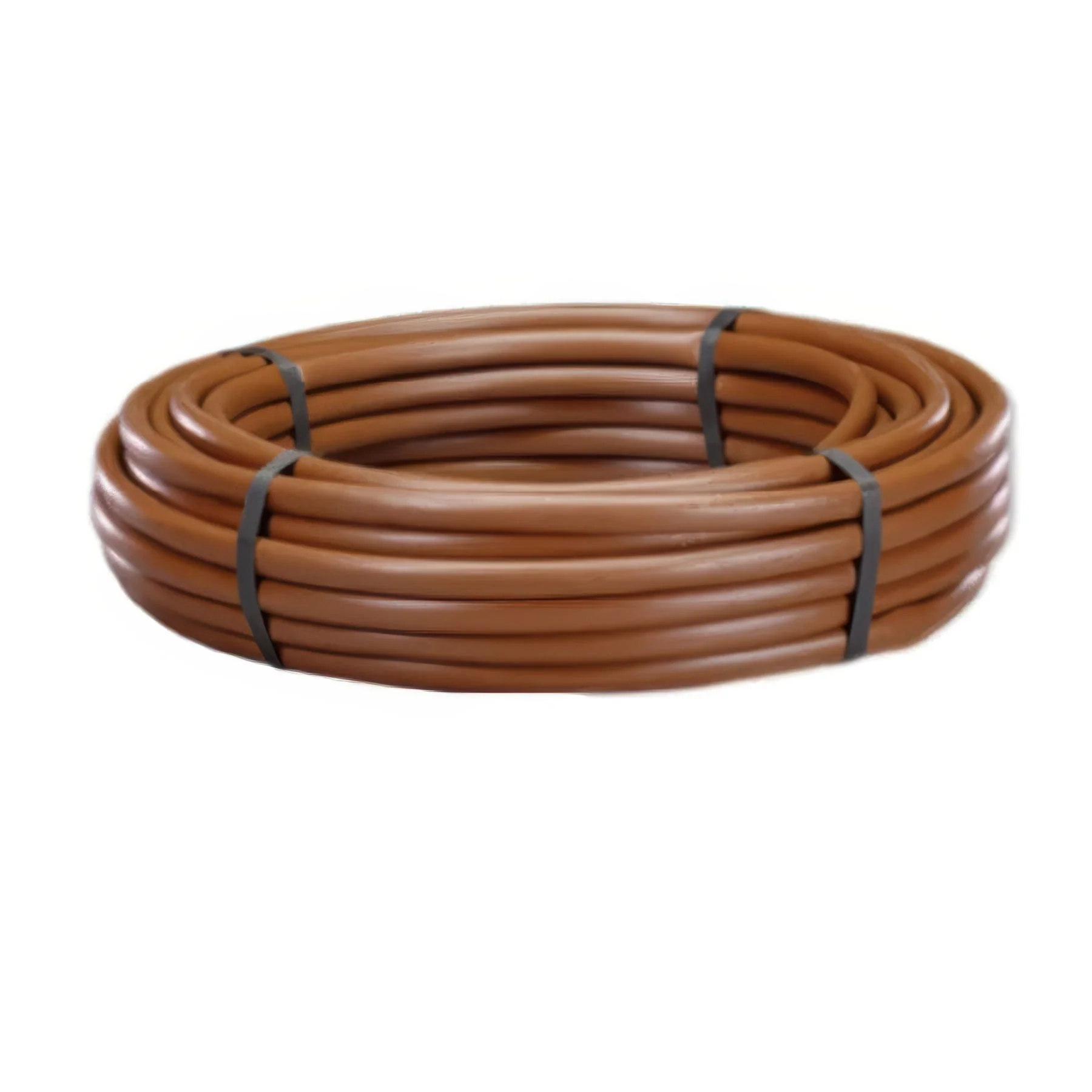

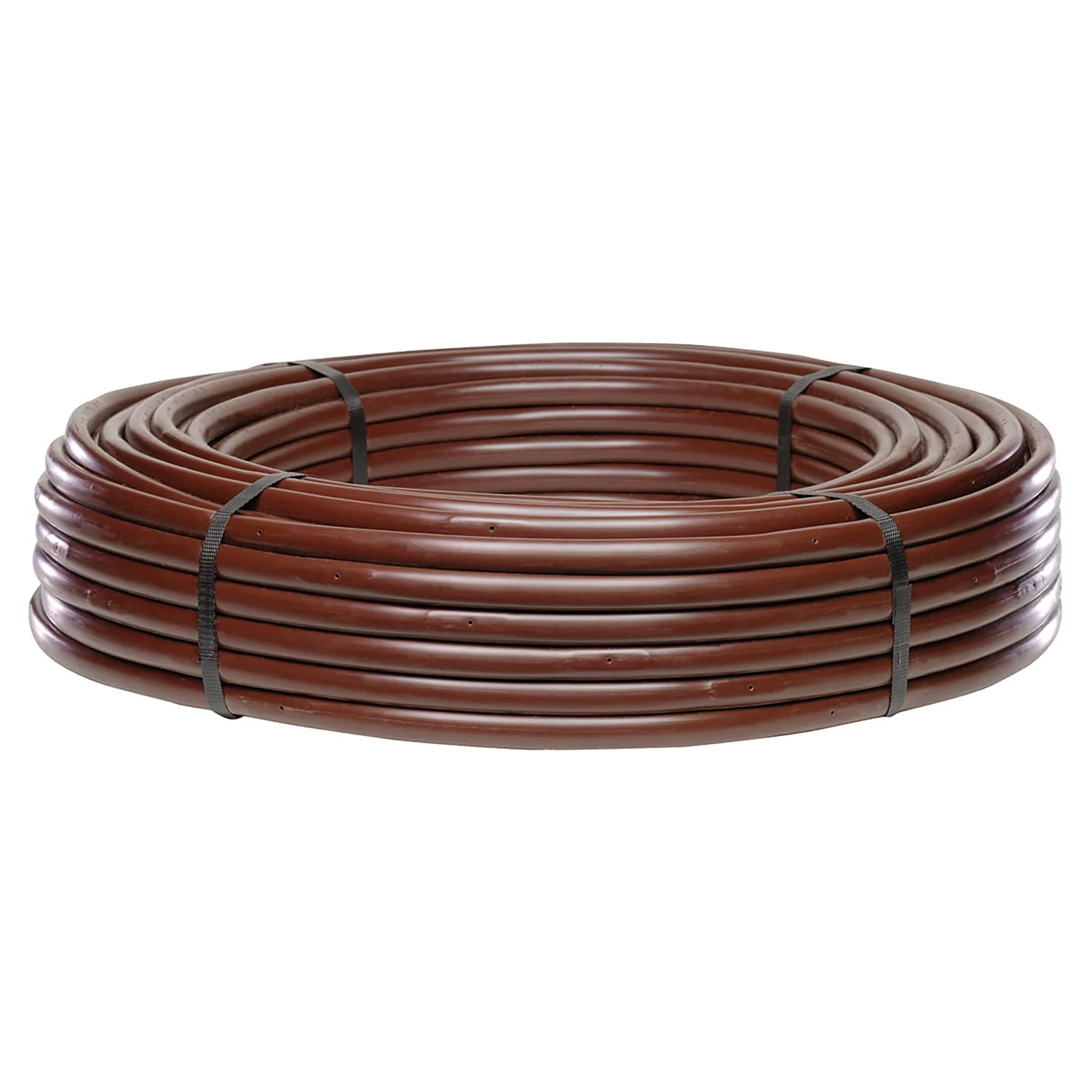

Netafim Techline DL Dripline

Techline® DL

This dripline provides maximum uniformity for both subsurface and on-surface installations. The pressure compensating emitters are ideal for sloping terrains and the anti-siphon feature prevents ingestion of debris into the tubing.

---

Why Techline™ DL?

• The First Anti-Siphon Emitter In Landscape Dripline
  Emitter manufactured and successfully used in harsh agricultural applications since 2000. Emitter is pressure compensating and continuous flushing.

---

Product Advantages

• Emitter With Anti-Siphon Feature
  Prevents ingestion of debris into tubing caused by vacuum.
• Self-Contained, One-Piece Dripline Construction
  Assures reliable, easy installation.
• Flexible UV Resistant Tubing
  Adapts to any planting area shape – tubing curves at a 7″ radius. On-surface installation withstands heat and direct sun.

Limited Warranty For Techline™ DL

Netafim warrants Techline™ DL to be free from original defects in materials and workmanship for a period of seven (7) years and ten (10) years for environmental stress cracking – from the date of original delivery.

---

Applications

• Subsurface or on-surface installations
• Curved, angular or narrow planting areas
• High traffic/high liability areas
• Areas subject to vandalism
• High wind areas
• Turf, shrubs, trees
• Slopes
• At-grade windows
• Sports turf

---

Specifications

• Emitter flow rates: 0.26, 0.4, 0.6 or 0.9 GPH
• Emitter spacings: 12″, 18″, or 24″
  (24″ available in 0.6 and 0.9 GPH only)
• Pressure compensation range: 6 to 58 psi
• Bending radius: 7”
• Maximum recommended system pressure: 58 psi
• Minimum recommended system pressure: 6 psi
• Tubing diameter: 0.66″ OD; 0.56″ ID; 0.050″ wall
• Coil length: 100’, 250’, 500’, 1,000’
• Minimum filtration: 120 mesh
• Diaphragm made of silicon′
• ISO 9261 Standard Compliance
