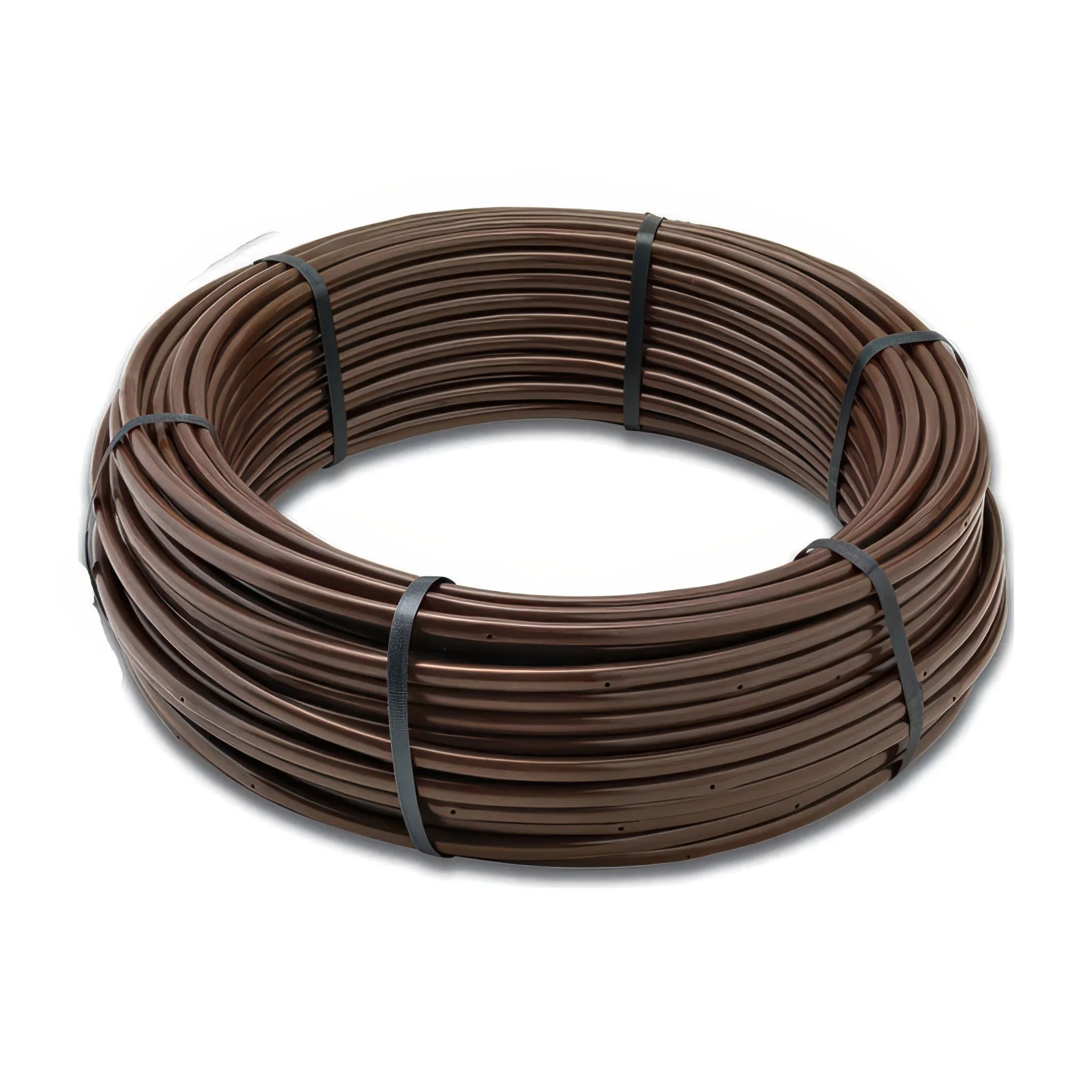

Netafim Techline EZ Dripline Blank Tubing - 250 Foot Coil
Techline™ EZ
Ideal for small and medium areas, Techline™ EZ offer one coil, two fittings and less than one-hour installation. It's the simplest solution for small sites. Netafim's Techline™ EZ is the 12mm dripline for on-surface looped systems that installs fast, saves water and "disappears" into the landscape.
Why Techline™ EZ?
The first anti-siphon emitter in Landscape dripline, successfully used in harsh agricultural applications before its introduction into Landscape. The emitter is pressure compensating and continuous flushing, the anti-siphon feature prevents ingestion of debris into the tubing caused by vacuum.
- Laser Etched, For Easy Identification
- Made With Post-Consumer Recycled Material
- Qualifies for Use on Leed Projects
- UV Resistant Tubing
- Self-Contained, One-Piece Dripline Construction
Product Advantages
-
Less Visually Obtrusive
12mm diameter tubing is less noticeable in landscape installations. -
Self-Contained, One-Piece Dripline Construction
Assures reliable, easy installation. -
Flexible UV Resistant Tubing
Adapts to any planting area shape – tubing curves at a 6″ radius. On-surface installations withstand heat and direct sun. -
More Cost-Effective in Smaller Bed Areas
24% smaller diameter tubing.
Applications
- Subsurface or on-surface installations
- Bed areas that require shorter lateral lengths
- Areas subject to vandalism
- Planting areas
- Curved, narrow, and angular planting areas
- Flower beds, trees, and shrubs
- Rooftop gardens
- Vegetable gardens
- Green walls
- High traffic or high liability areas
- Raised planters
Specifications
- Emitter flow rates: 0.26, 0.4, 0.6 and 0.9 GPH
- Emitter spacings: 6″, 12″, and 18″
(6″ available for 0.26 and 0.4 GPH only) - Uses 12mm Netafim Insert Fittings or any compression fitting for 0.426″ diameter tubing
- Pressure compensation range: 6 to 58 psi
- Bending radius: 6″
- Maximum system pressure: 58 psi
- Minimum pressure required: 6 psi
- Tubing diameter: .510″ O.D.; .426″ I.D.
- Coil length: 200′, 250′, 300′, 500′, 1,000′
- Recommended minimum filtration: 120 mesh
- Diaphragm made of silicon′
- ISO 9261 Standard Compliance
