PHOTOBIO VP 32 Watt VE Spectrum LED Grow Light Bar, 120 Volt - Pack of 2
PHOTOBIO VP is a modular, high-efficiency LED system designed for vertical farming. PHOTOBIO•VP’s slim vertical profile maximizes vertical real estate allowing greater production space, and its modular design lets you link and power multiple 100–277V fixtures from a single input power. PHOTOBIO•VP features a tailored spectrum for vegetative and propagation growth stages, ideal for vertical farming and propagation. IP65 ingress protection rating from dust and liquids. IP65 power connection allows quick attachment at the fixture for easy installation and maintenance. Sold in pairs.
The Photobio VP use a Vegetative Centric Spectrum focused on ideal proportions of blue to red and far red light. Perfect for vertical farms and vegetative stage of plant cycle.
Features & Benefits of the Photobio VP
- 32W horticultural LED solution with slim vertical profile 47.3" length x 1.3" width x 1.3" height and 1.5 lbs
- 73.6 umol/s Photon Flux @ 277V
- 67.2 umol/s PPF
- 2.3 umol/J efficacy @ 277V
- Lumiled diodes produce the VE Spectrum

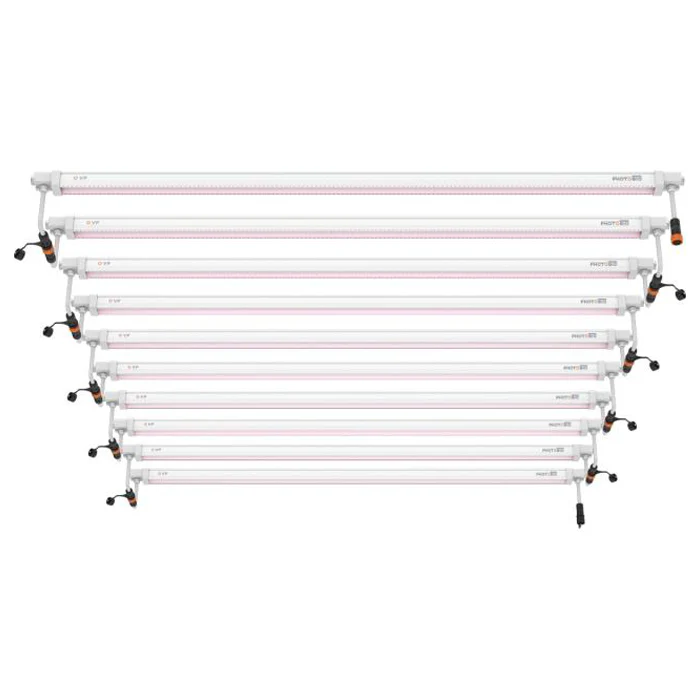

- Daisy chain 10-23 fixtures together from a single power source depending on the voltage
- Passive heat cooling
- Liquid tight push lock connectors compatible with existing PHOTOBIO cable environment
- Power cords sold separately
- Voltage: 120-277V
- 5 year warranty
- IP65 rated
- CE, ETL, FCC, DLC Certified
- Includes 4 mounting clips, screws, and zip-ties for installation
- Not Dimmable
Photon Flux for the Photobio VP
Photosynthetic Photon Flux Density (PPFD) data is produced by using professional lighting simulation software and third party laboratory photometric files. All PPFD data are measured in µmol/m2/s.
The result is showing a 20"x44" calculation grid assuming two fixtures mounted 9" apart in a 2'x4' grow shelf with 85% wall reflectance. Actual measurement may vary depending on actual use conditions, input voltages, and measuring instruments.
Specifications for the Photobio VP
| Voltage | 100/277 Volts |
|---|---|
| Power | 43 Watts per bar |
| Spectrum | VE Vegetative Spectrum |
| PAR | 2.3 µmol/J |
| PPF | 73.6 µmol/s |
| Warranty | 5 Years |
| Frequency | 50/60 Hz |
|---|---|
| Dimensions | 47.3" x 1.3" x 1.3" |
| Weight | 1.5 lb / 0.7 kg |
| Thermal Management | Passive |
| Included Power Cord | Choose Desired Voltage |
| Power Cord Length | 10 ft. (Open Leads 2 ft.) |
Voltage & Amperage
| Voltage | 120 Volt | 208 Volt | 240 Volt | 277 Volt |
|---|---|---|---|---|
| Amperage | 0.26 Amps | 0.15 Amps | 0.13 Amps | 0.11 Amps |
