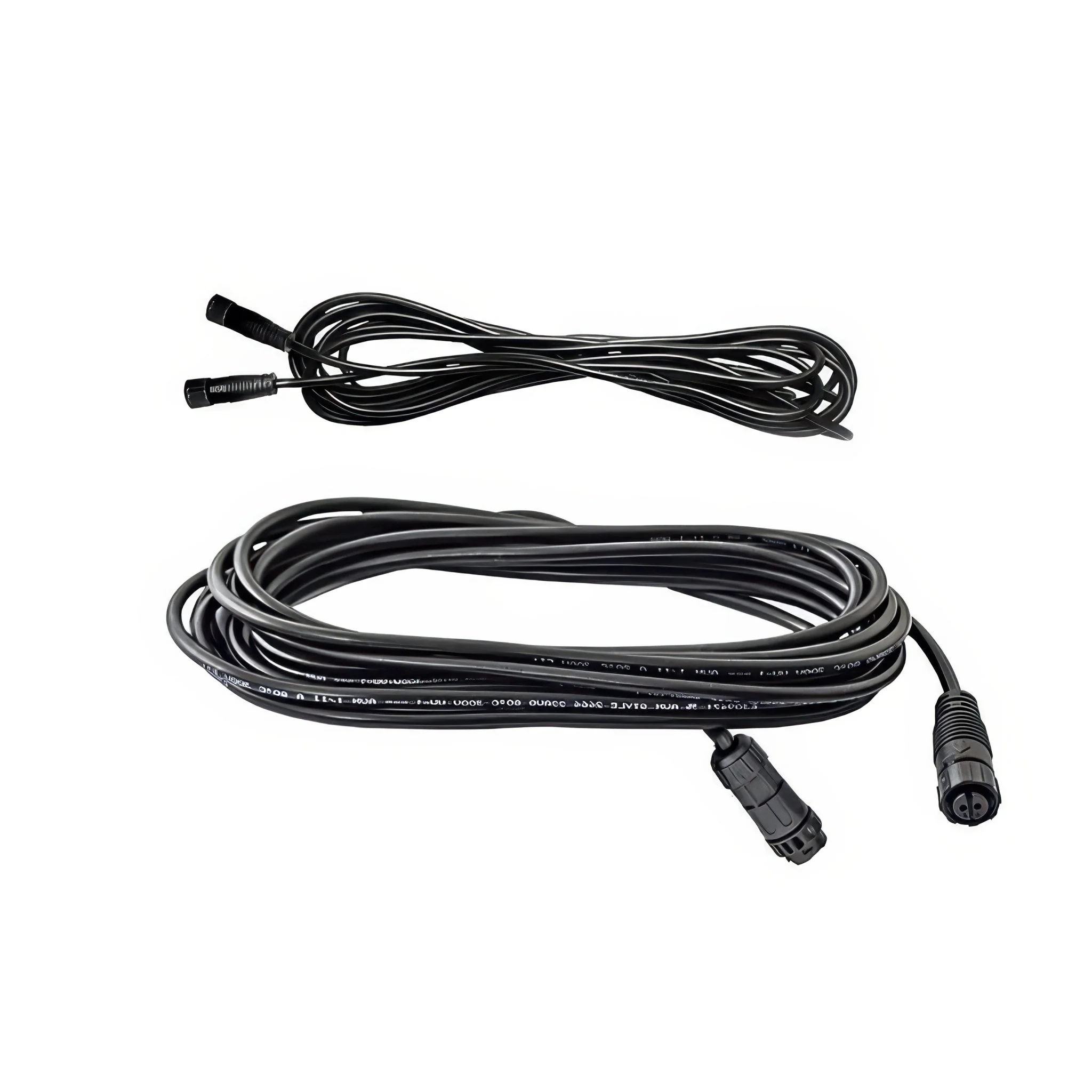

Photontek Remote Driver + Dimmer Extension Cables (x2), 5 Meters

Driver + Dimming Extension Cables

This 5m long Control Link Cable is designed to daisy-chain your Photontek Controllable LED Fixtures allowing a stable and precise connection without any interference. Simply connect the M12 Self-locking male plug into the Signal Out LED structure output and the M12 Self-locking female plug into the Signal In LED structure input of the next fixture.

5m Extension Power Cable for LED driver: M19-2 Self-locking male and female injection molding with 5m extension cable (Wire Gauge: UL SJTW 2x16AWG 300V 105°C)

5m Extension Dimming Cable for LED driver: M19-2 Self-locking male and female injection molding with 5m extension cable (Wire Gauge: UL 21996 3×22AWG 300V 105℃ VW-1

Technical/Test Data:

• Withstand voltage between any two poles is 500 VAC, (2mA for power, 1mA for dimming), test time 3S, no breakdown or leakage current occurs
• Insulation Resistance:100MΩ @ 100V
• Temperature Resistance：105°C
• Working temperature: -20°C-105°C
• Storage temperature: -25°C-105°C
• IP65
• Comply RoHS
