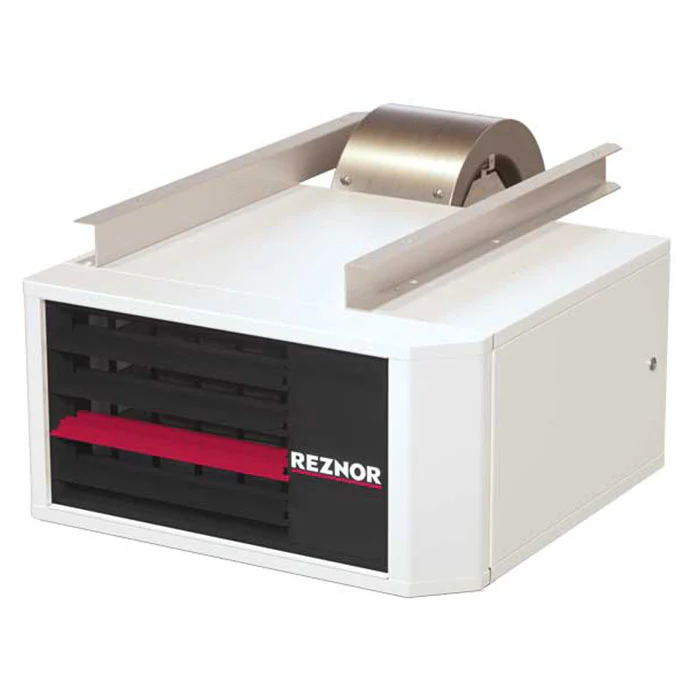

Reznor UBZ Unit Heater
Reznor Model UBZ gas-fired unit heaters are available in 14 sizes ranging from 30,000 to 400,000 BTUH gas input.
Each size cabinet is easily suspended from 4 suspension points. The low voltage terminal strip on the outside of the cabinet makes connecting control wiring easy with no panels to remove. The addition of a "G" terminal to the strip, along with the new design of the circuit board, allows for fan only operation (without adding relays). Reznor model UBZ unit heaters offer a sleek design sure to complement any space. The UBZ features a two-tone black and white powder coated, scratch-resistant paint scheme with a single red louver. Each unit has clean rounded corners and edges with no visible screws or fasteners, and the bottom is embossed with the Reznor logo. Model UBZ unit heaters provide the same superior performance customers have relied on for more than 100 years along with added features that make servicing the unit easier, installation safer and improve monitoring capabilities. The Reznor Model UBZ heaters are approved for installation in the United States and Canada by ETL.
Reznor Model UBZ Features and Benefits:
- Certified for commercial/industrial heating application
- 45-75 °F Rise range - Sizes 30-350
- 50-80 °F Rise range - Size 400
- Integrated circuit board with 7 segment display
- External status indicating LED
- Hinged door with ¼ turn latch
- Improved cabinet design with removeable front face and two tone white and black powder paint.
- Reznor logo embossed on bottom of unit
- Tcore2 titanium stabilized aluminized steel heat exchanger
- Patented single burner combustion system including a onepiece burner assembly
- Built-in disconnect switch - Sizes 30-125, 20A@115V rating; Sizes 150-400 30A@115V rating
- 115V, 1 phase, 60 Hz supply voltage
- 115 Volt open drip proof blower motor with internal overload protection - Sizes 30-125
- 115 Volt open drip proof blower motor with internal overloads and definite purpose motor contactor - Sizes 150-400
- Direct drive blower with multispeed taps - Sizes 30-125
- Adjustable belt drive blower - Sizes 150-400
- Transformer for 24-volt controls
- Sealed control compartment houses all electrical components
- Multi-try direct spark ignition with timed lockout
- Blower relay (included on the circuit board)
- Single-stage natural gas valve (field adjustable for operation to 9,000 ft. elevation)*
- Vibration/noise isolated fan and venter motors ~ designed for low noise operation
- 4-pt Suspension ~ standard on all sizes
- External terminal strip for 24-volt wiring
- External gas pipe connection
- Sealed junction box for supply wiring
- Full fan guard
- Built-in disconnect switch - Sizes 30-125, 20A@115V rating; Sizes 150-400 30A@115V rating
Reznor Model UBZ Optional Features:
- Single-stage propane gas valve (field adjustable for operation to 9,000 ft.)*
- Two-stage gas valve (sizes 60-400)
- 409 or 316 stainless steel heat exchangers
- Totally enclosed fan motor (sizes 30-400)
- Horizontal or vertical combustion air/vent kit including concentric adapter
- Thermostat / guard with locking cover
- Gas conversion kits (natural and propane)
- Primary/secondary controls for zoning up to six units
- Polytube AdaptersHanger kits for 1" pipe
- Stepdown transformer (for 208/115, 230/115 or 460/115 supply voltage)
- Intergrated 30 ° & 60 ° downturn nozzles
- Intergrated Vertical Louver Kits
- Duct Flange
*Note: Pressure switch change required for installations above 6,000 ft
For installations where dirt, dust, and other airborne contamination is presenet in the indoor envirmonet, it is recommended to use seperated combustion units (Model UBZ). These models use air from outside the space for combustion. This will help reduce the build up of contaminates on the burner which would affect the combustion process. Refer to the installation manuals for recommended frequency of maintenace and cleaning.
