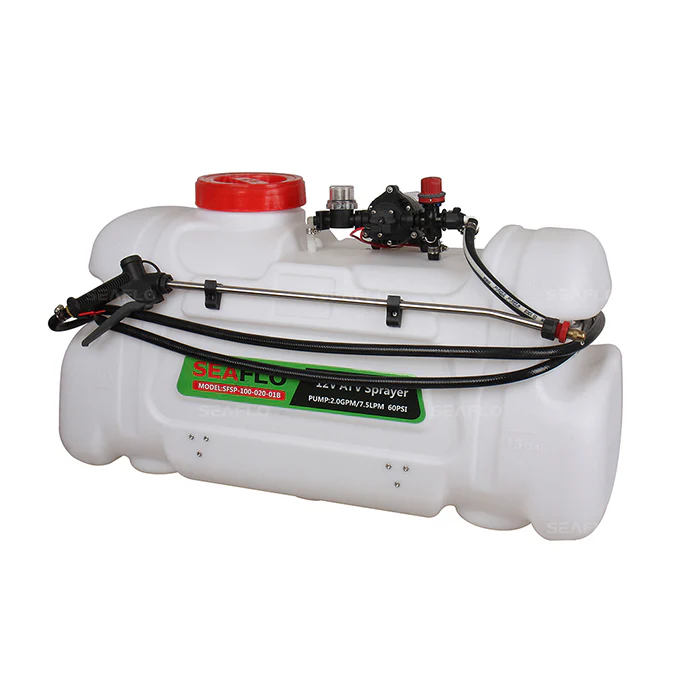

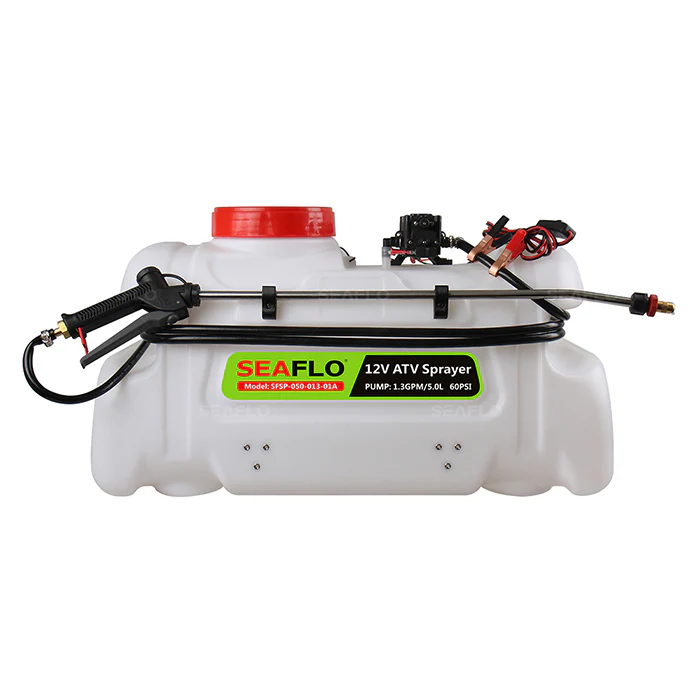

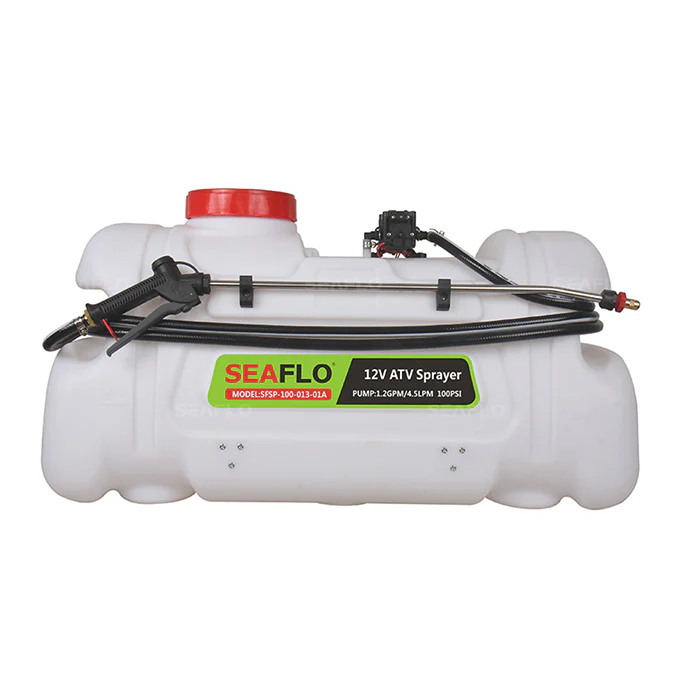

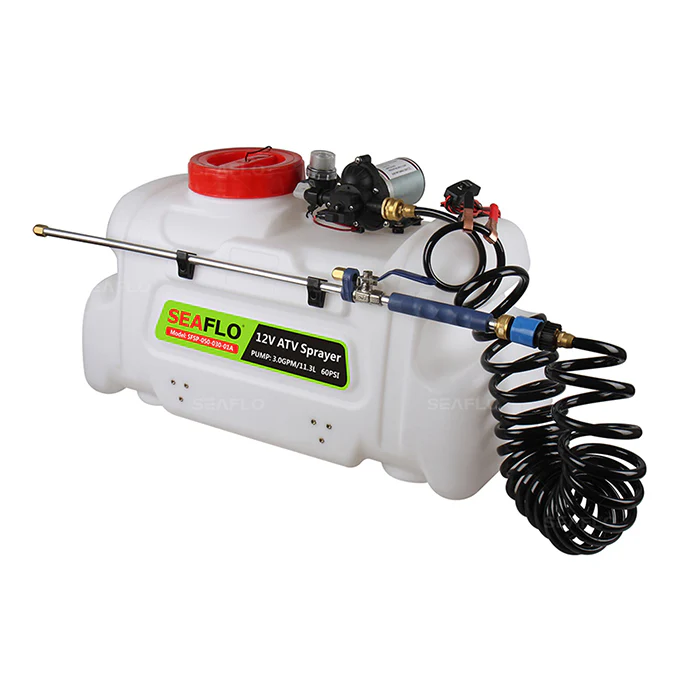

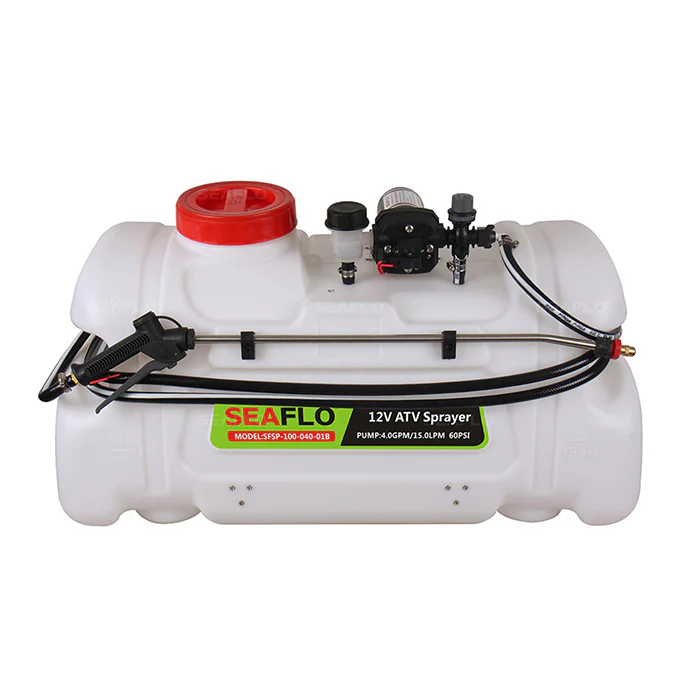

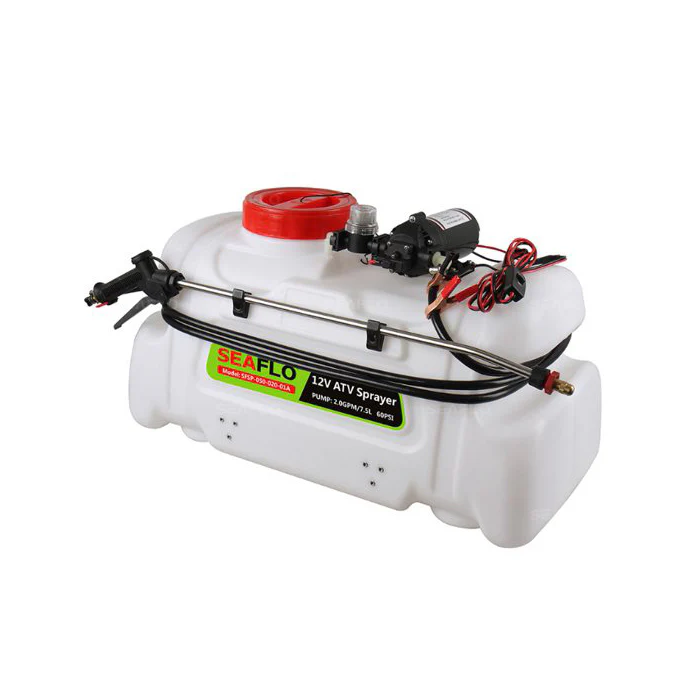

SEAFLO ATV Spot Sprayer

The SEAFLO 12 Volt ATV Sprayers covers from 13-gallon to 26-gallon (50L to 100L) capacity HDPE stabilizer polyethylene tank and are supplied as a self-contained complete unit. These new SEAFLO 12V sprayers deliver constant flow, no pulsation, and the highest pressure for distance spraying.

---

Features & Benefits

• Automatic High-pressure Water Pump
• Pressure Regulating Valve
• UV stabilized Translucent tank
• Large carry handles
• Large filling lid
• Water Inlet Filter
• Heavy-duty power cable
• Large drain

Automatic High-pressure Water Pump

Non-leak, high-quality SEAFLO 22 series automatic diaphragm pump with maximum flow rate 1.3 GPM, 80 PSI, viton valve & santoprene diaphragm, micro switch for water resistance and reliability.

Pressure Regulating Valve

For better pressure relief and discharge and spray effect. Dial readings are clear and easy to record pressure data in different scenarios.

UV stabilized Translucent tank

Durable HDPE stabilized poly tank for long life. Easy to see liquid level in the tank. Blow molding tank has uniform thickness and can take high impact force.

Heavy-duty power cable

Quick-clip power connection，2.5 meter electric cable with battery clip, heavy-duty 12 volt quick-plug power cable with rocker-switch for easy hook-up to your battery.

Sprayer Gun/ Nozzle - SFSG-D02

Equipped with high-strength handle switch, 70MM stainless steel sprayer lance, and adjustable copper nozzle.

---

Specifications

• Automatic High Pressure Water Pump: SEAFLO pump based on ATV Sprayer GPM rating
• Pressure Regulating Valve: No
• Sprayer Gun / Nozzle: Equipped with normally open state handle switch, plastic sprayer lance, and adjustable nozzle
• Sprayer Hose: 6 meters of high pressure hose, rated pressure is 20BAR. Internal diamter: 10MM. External Diameter: 14MM
• Battery Cable: 2.5 meters battery cable with DC quick-plug and quick-clip power connection.
