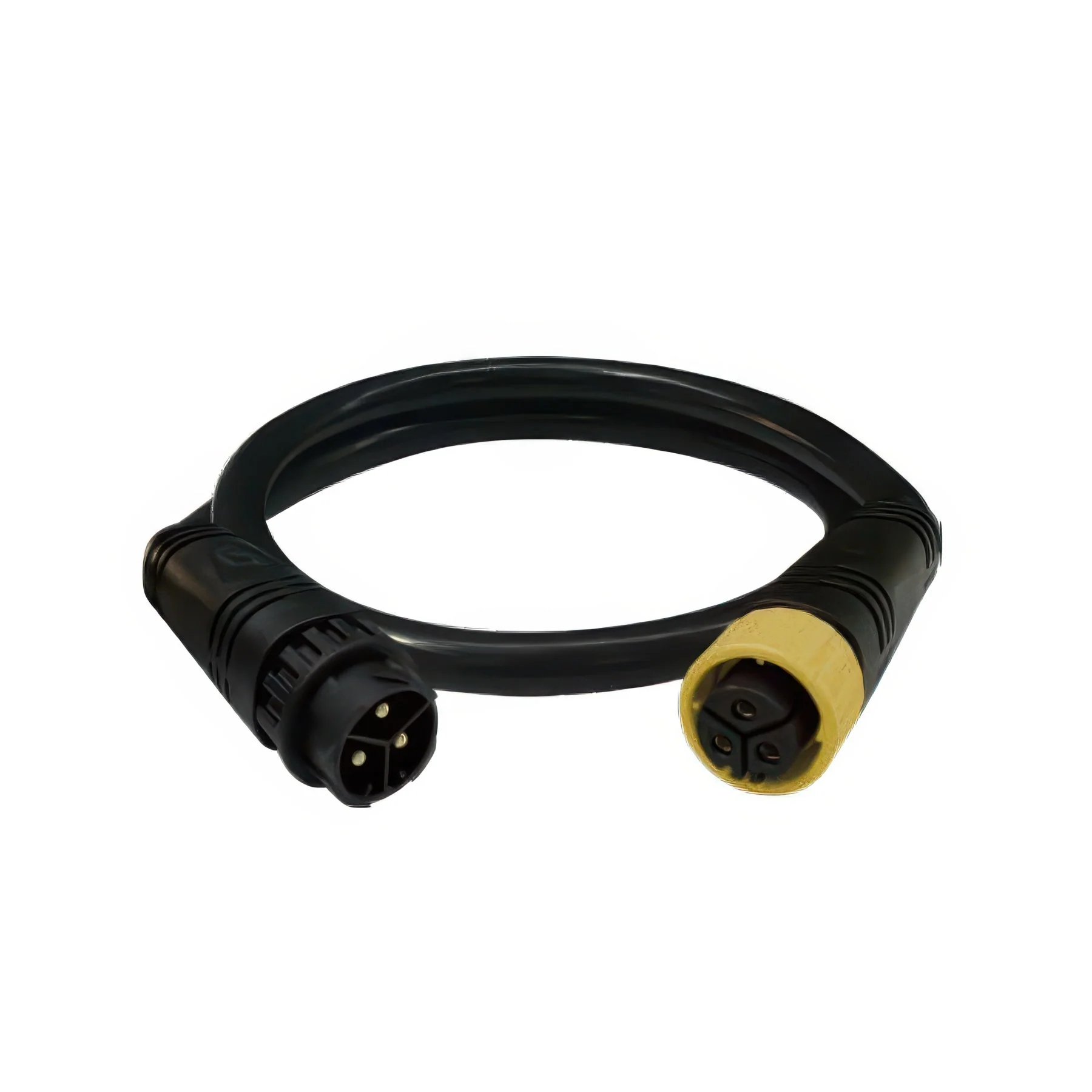

ThinkGrow Extension Power Cord, AWG#12, 20 Amp, 5 Feet
ThinkGrow Daisy Chain Power Cord System is designed to interconnect between the LED drivers, the system can eliminate a massive amount of power outlets, and reduce the number of power cables required. Depending on the power source of your facility, using the daisy chain power cord can provide power to up to 18 lighting fixtures... all connected into a single 30-amp power cable.
The ThinkGrow Daisy Chain Power Cord / Extension Power Cord provides 3 different gauges of cable, AWG #10/12/14. The user can use any or all of the cable sizes within their installation.
Specifications
| Model: | DEA-10L |
|---|---|
| Input Voltage: | 100-277V ≤ 30A |
| Gauge | 10 |
| Copper Area: | 5.26 mm2 |
| Resistivity | < 17mΩ |
| Length | 10 ft. (3m) |
| Weight | 2.56 lbs (1160 g) |
| Model: | DEA-10 |
|---|---|
| Input Voltage: | 100-277V ≥ 30A |
| Gauge | 10 |
| Copper Area: | 5.26 mm2 |
| Resistivity | < 12mΩ |
| Length | 3 ft. (0.9m) |
| Weight | 0.93 lbs (420 g) |
| Model: | DEA-12 |
|---|---|
| Input Voltage: | 100-277V ≥ 20A |
| Gauge | 12 |
| Copper Area: | 3.31 mm2 |
| Resistivity | < 16mΩ |
| Length | 3 ft. (0.9m) |
| Weight | 0.93 lbs (420 g) |
| Model: | DEA-14 |
|---|---|
| Input Voltage: | 100-277V ≥ 15A |
| Gauge | 14 |
| Copper Area: | 2.08 mm2 |
| Resistivity | < 21mΩ |
| Length | 3 ft. (0.9m) |
| Weight | 0.93 lbs (420 g) |
#10 AWG Maximum number of ThinkGrow LEDs that can be connected
| LED Model | Input Power | Input Voltage | |||
| 120 Volts | 240 Volts | 277 Volts | 480 Volts | ||
| Model-I Plus | 720 Watt | 4 | 8 | 9 | 16 |
| Model-I | 720 Watt | 4 | 8 | 9 | 16 |
| Model-H Plus | 720 Watt | 4 | 8 | 9 | 16 |
#12 AWG Maximum number of ThinkGrow LEDs that can be connected
| LED Model | Input Power | Input Voltage | |||
| 120 Volts | 240 Volts | 277 Volts | 480 Volts | ||
| Model-I Plus | 720 Watt | 2 | 5 | 6 | 10 |
| Model-I | 720 Watt | 2 | 5 | 6 | 10 |
| Model-H Plus | 720 Watt | 2 | 5 | 6 | 10 |
#14 AWG Maximum number of ThinkGrow LEDs that can be connected
| LED Model | Input Power | Input Voltage | |||
| 120 Volts | 240 Volts | 277 Volts | 480 Volts | ||
| Model-I Plus | 720 Watt | 2 | 4 | 4 | 8 |
| Model-I | 720 Watt | 2 | 4 | 4 | 8 |
| Model-H Plus | 720 Watt | 2 | 4 | 4 | 8 |
