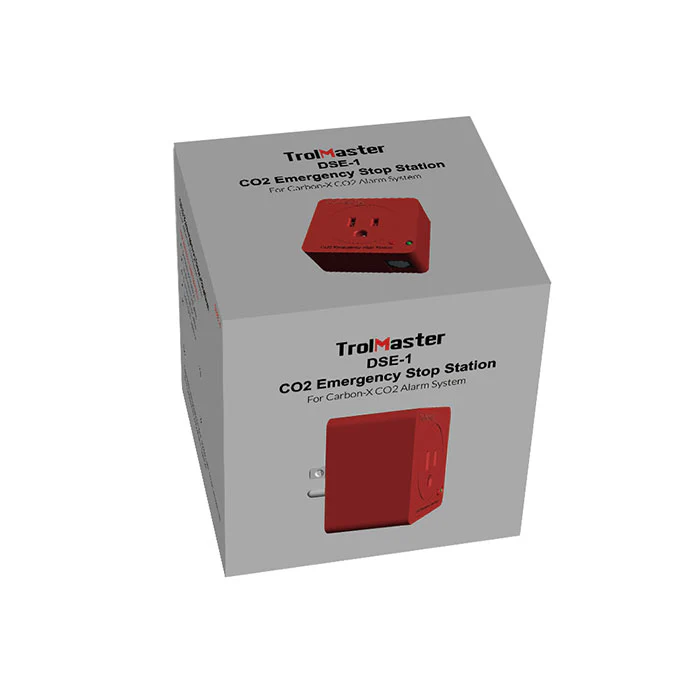

TrolMaster Carbon-X CO2 Emergency Stop Station

Carbon-X CO2 Emergency Stop Station （DSE-1）

The DSE-1 CO2 Emergency Stop Station provides a simple method to shut off the CO2 supply when any fault or high CO2 level is detected. It is a 120V controlled outlet that supplies the power to CO2 solenoid valves in normal operation . The Carbon-X will then automatically shut off DSE-1 power if any fault or high CO2 level is detected within any of the installed CO2 sensors. If the DSE-1 loses communication with the Carbon-X, the power supply will also be disabled.

Features

• LED Power Indicator
• RJ12 Cable Socket
• Addressing
• Plug & Play

'

• 1 x Emergency Stop Device Station
• 1 x 16ft RJ12 Cable
• 1 x 4ft RJ12 Cable
• 1 x RJ12 T-Splitter

Specifications

• Input Voltage: 100~240 VAC, 50/60Hz
• Output Current: 10A
• Output Voltage: 100~240 VAC, 50/60Hz
• Working Environments: Temperature 32-122 F, Humidity<=90%
• Package Dimensions: 85mm(L) x 80mm(W) x 90mm(H)
• G.W. per pack: 0.34kgs
