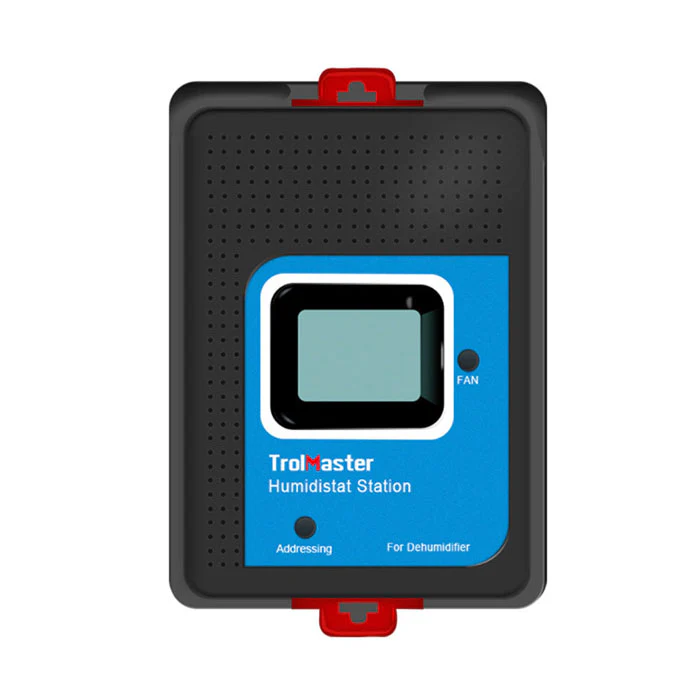

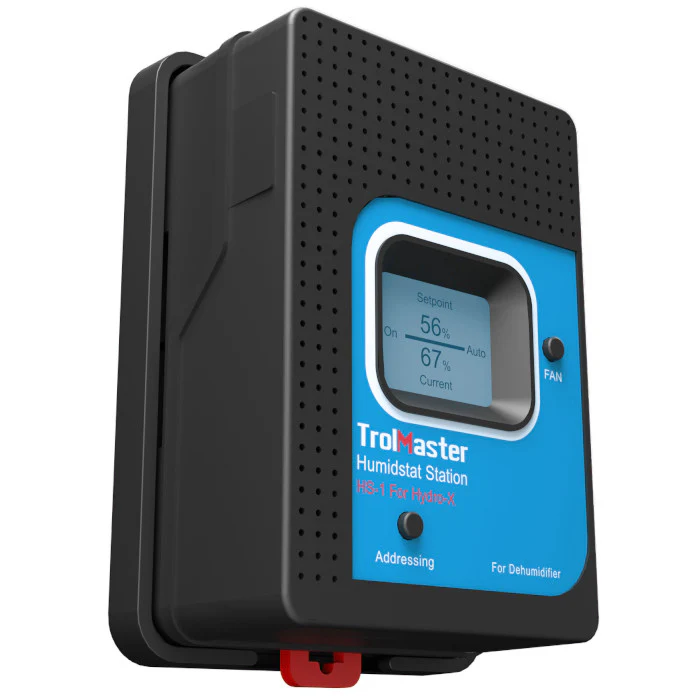

TrolMaster Hydro-X Humidistat Station

HS-1 Humidistat Station is specifically designed to control dehumidifier in the Hydro-X Control System. It will control your dehumidifier by Day/Night setpoint base on the photocell status.

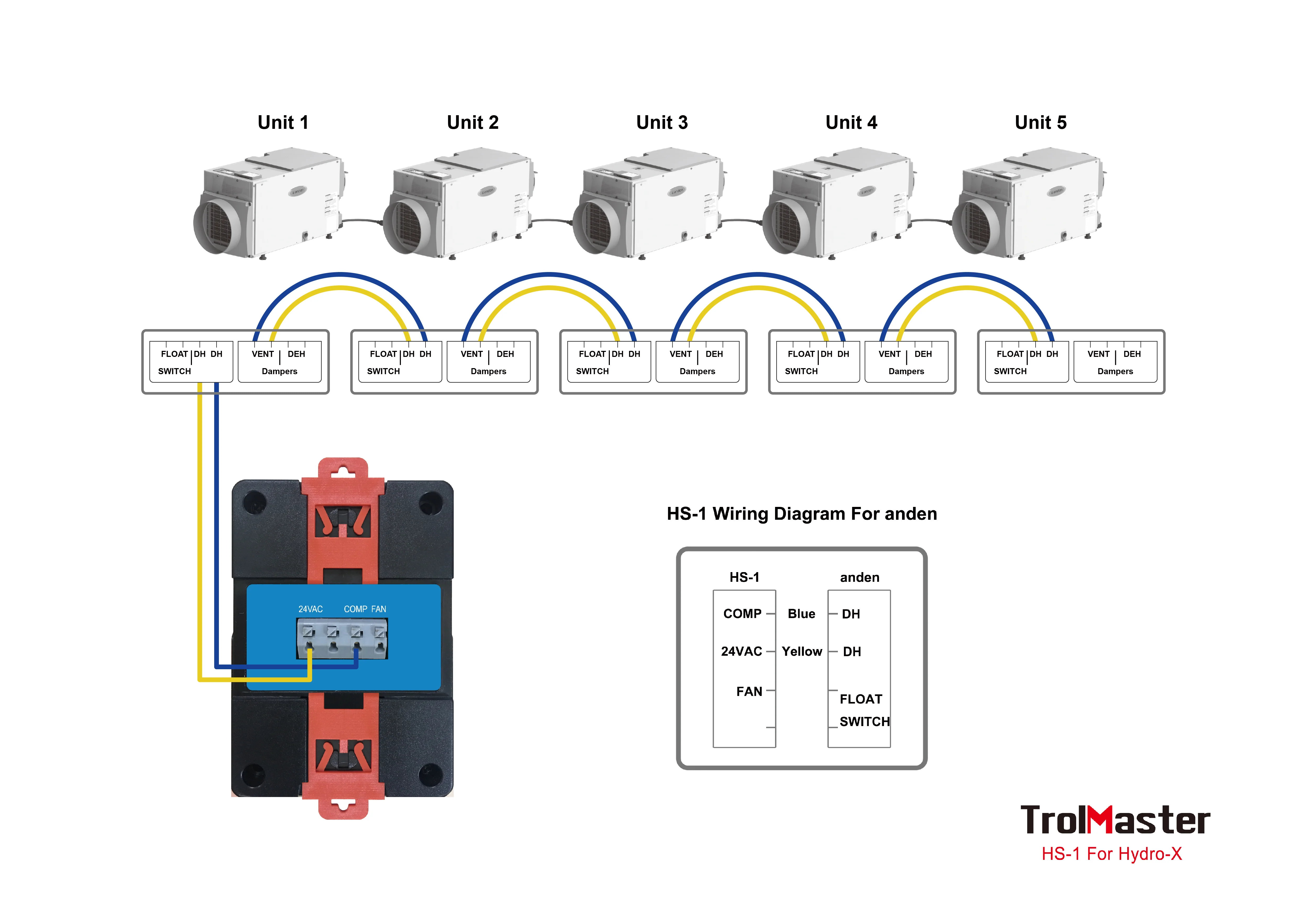

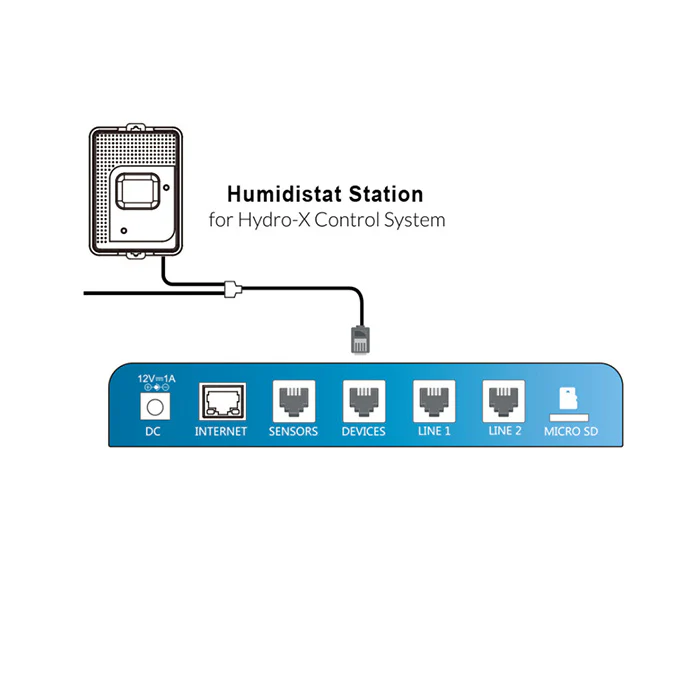

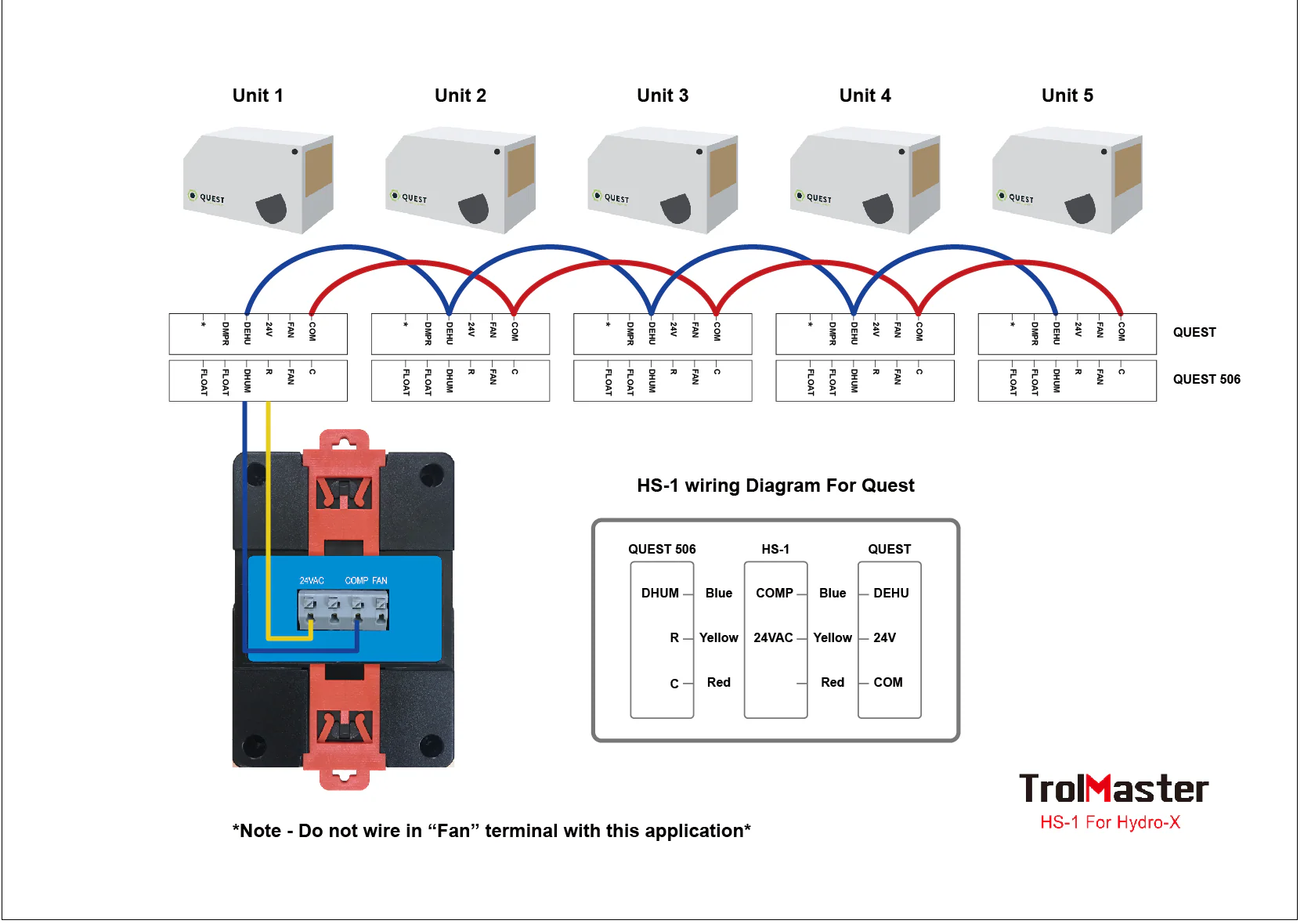

Connect the HS-1 to where your thermostat is on the wall by using the preexisting wires, now you can use the HS-1 in conjunction with the Hydro-X to control dehumidifier easily.

In the Box:
• 1 x Humidistat Station (HS-1)
• 1 x 16ft RJ12 Cable
• 1 x 4ft RJ12 Cable
• 1 x RJ12 T-Splitter

Features:
• LCD Display, Easy Operation
• Seamless Connection with Hydro-X
• Micro-SD for Firmware Upgrade
• Address Assignment
• Plug & Play

Specifications:
• Output Voltage: 24V
• Maximum Current: 1A
• Working Environment: Temperature 32-122°F, Humidity≤90%
• Packaging Dimensions: 160mm(L) x 86mm(W) x 86mm(H)
