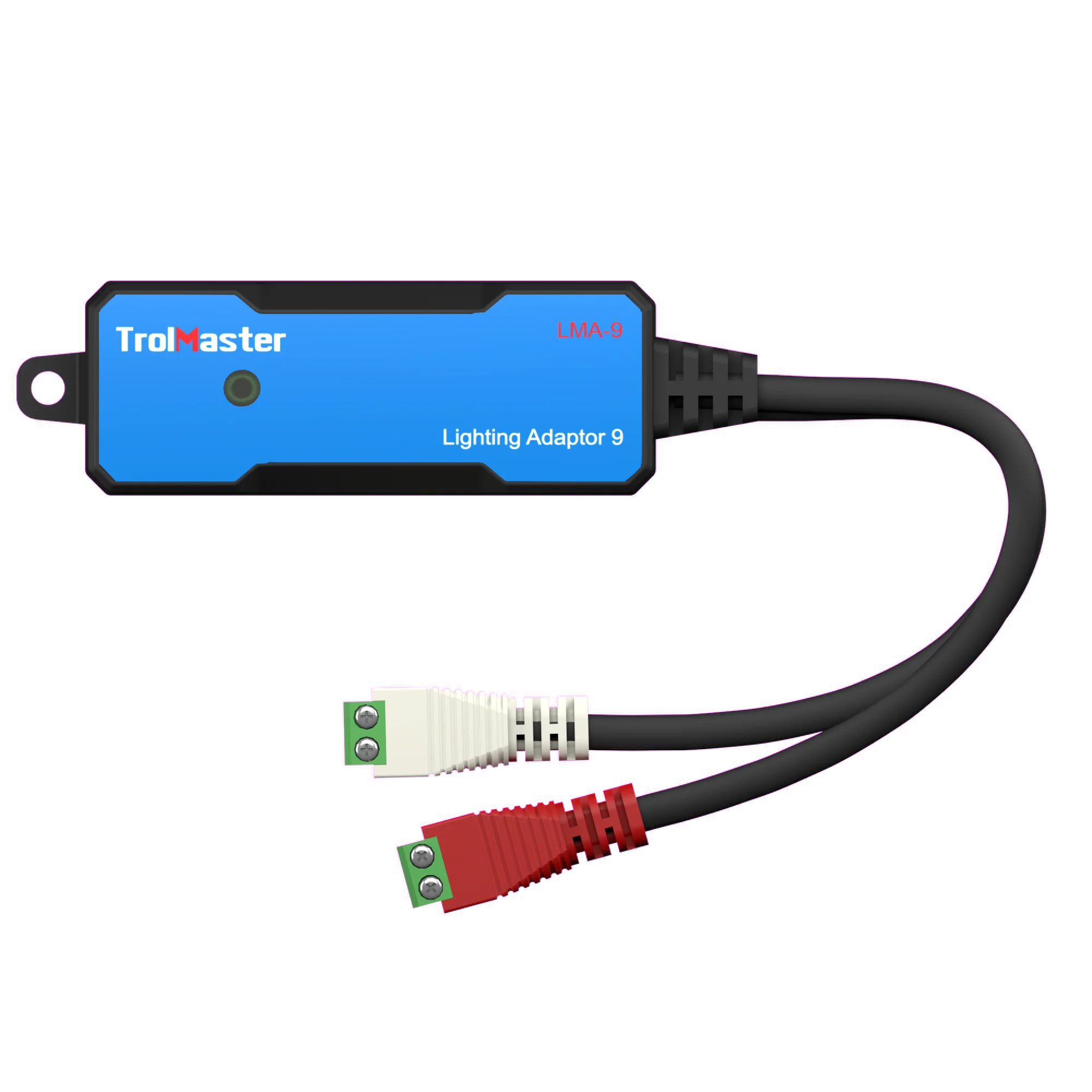

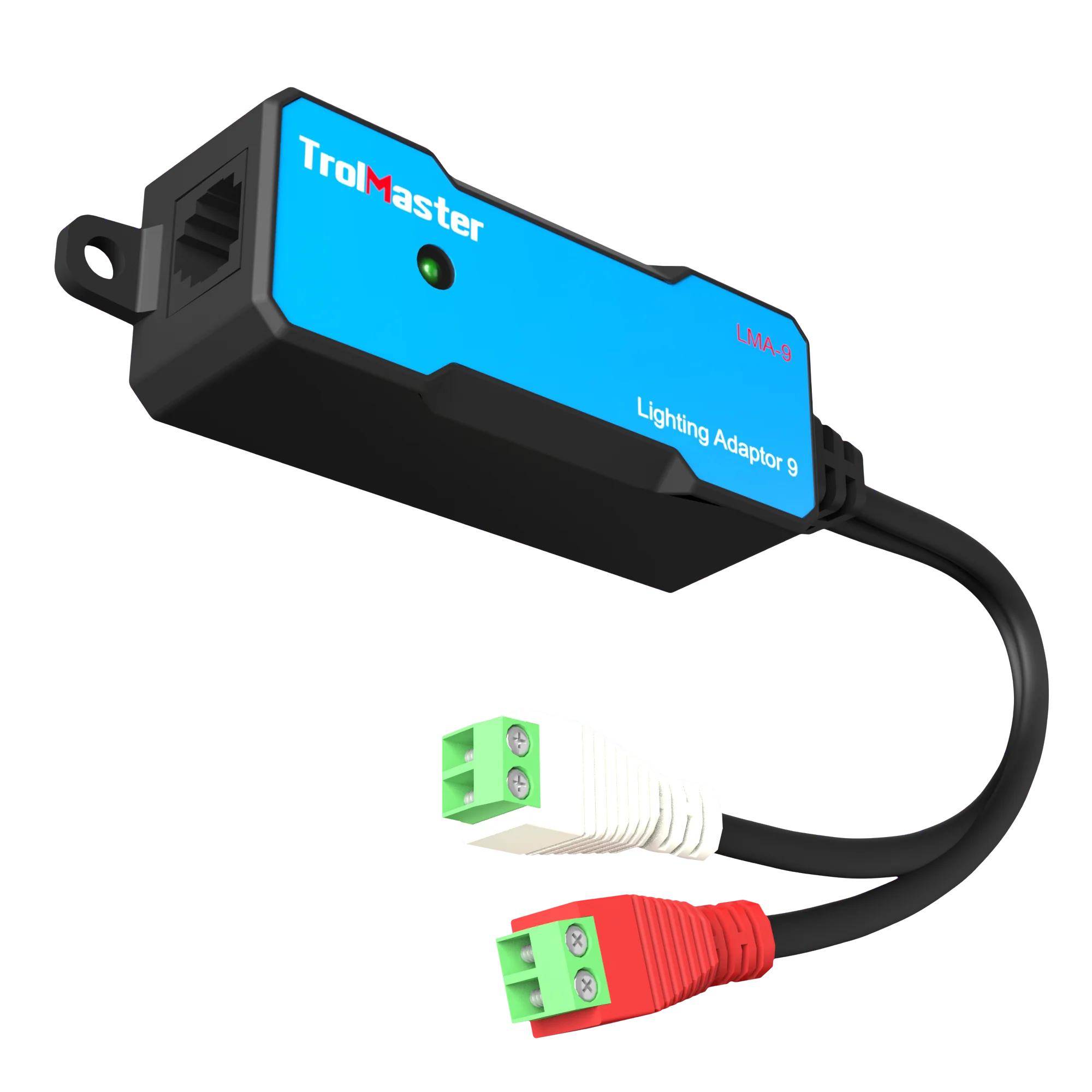

TrolMaster LMA-9 Lighting Adapter To Convert 0-10V to Digital Signals

Lighting Adapter to Convert 0-10V Signals to Digital Signals to Control ThinkGrow LEDs（LMA-9）

The ThinkGrow LMA-9 is designed to allow ThinkGrow LEDs to be controlled by any 3rd party controller that can generate a 0-10vdc analog dimming control signal. The LMA-9 features the ability to connect TWO separate 0-10v control channels to the ThinkGrow LEDs in order to take advantage of the ThinkGrow LEDs ability to control supplemental Red diodes separately from the Full spectrum diodes. The LMA-9 provides easy connection to the 3rd party controller by using “twin” connection cables that have 2+2 hardwired terminals. The other end of the LMA-9 has a single RJ12 port that connects to the “String” of ThinkGrow LEDs. ThinkGrow’s LMA-9 allows 3rd party controllers to easily interface with ThinkGrow’s LEDs, there by optimizing plant growth and operational efficiency.

Features

• LED Indicator
• Plug & Play

Package Content

• (1x) Lighting Adapter to Convert 0-10V Signals to Digital Signals to Control ThinkGrow LEDs (LMA-9)
• (1x) 12ft RJ12 to 4-Pin IP65 Connector Cable (ECS-9)
• (1x) Power & Signal Connection Cables

Specifications

• Input Voltage: 0-10V
• Input Current: 60mA
• Working Environment: 32-122°F
• Operating Humidity: ≤90%
