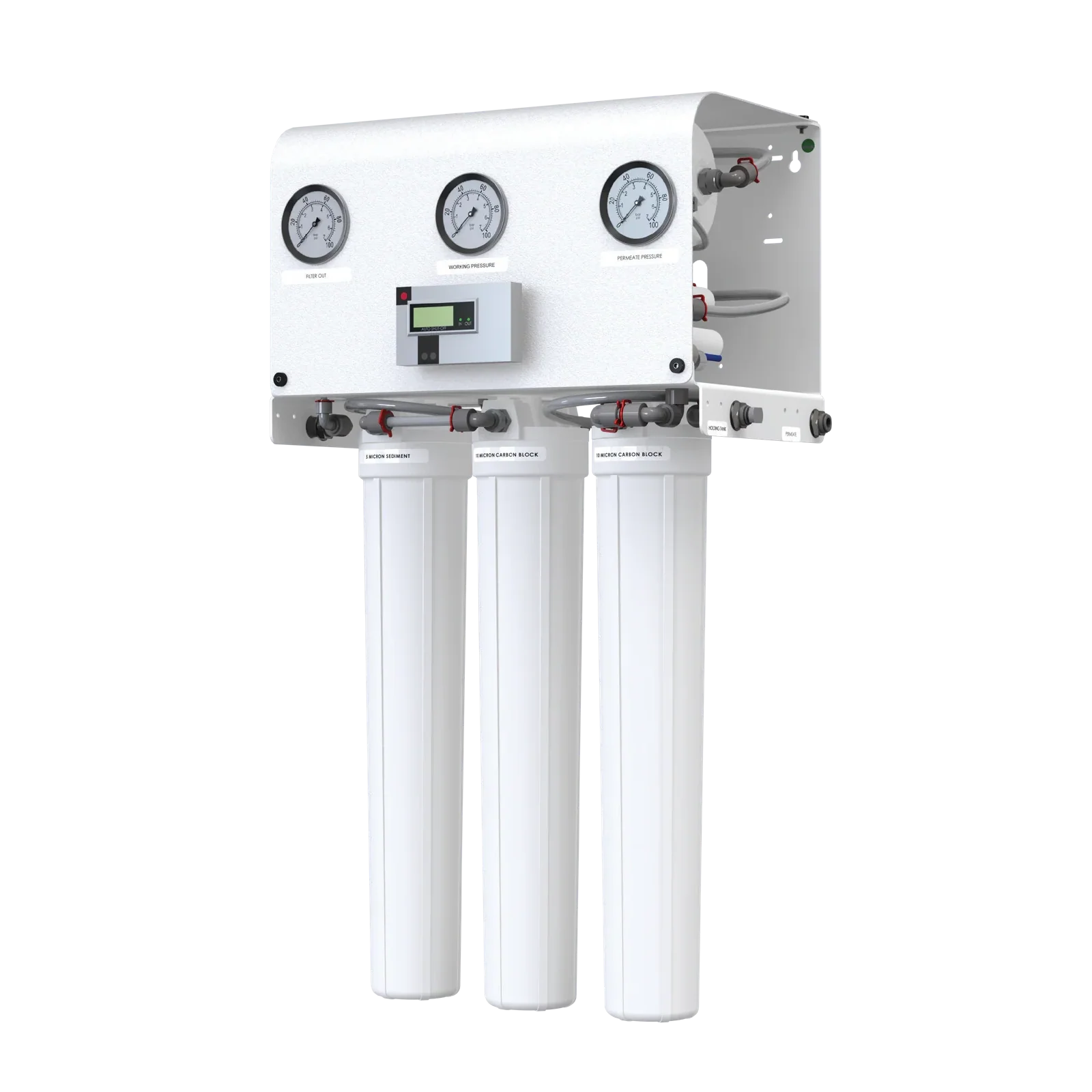

AXEON LP Series Reverse Osmosis System

AXEON LP Series Reverse Osmosis System

AXEON® LP– Series Reverse Osmosis Systems are engineered in response to the need within the light commercial markets. The LP–Series systems provide a cost-effective solution for customers and are easy to install and maintain. These systems are designed to be wall mounted or free-standing and feature a 5-Micron Sediment and 10-Micron Carbon Pre-Filters, Slim Line Filter Housings and AXEON 500 GPD membranes and membrane housings.

AXEON LP– Series Reverse Osmosis Systems are available in models ranging from 350 to 700 gallons per day (GPD), at a line pressure of 70 psi. The LP– 500 model is available with a pump to deliver 500 GPD.

The models can also be upgraded with an optional cover that includes pressure gauges and a dual TDS meter.

Features & Benefits

  • AXEON TF– 3012 500 Membrane Element
  • AXEON 3012 Membrane Housing
  • AXEON 2.5″ x 20″ 5-Micron Sediment Pre-Filter
  • AXEON 2.5″ x 20″ 10-Micron Carbon Block Pre-Filter and
  • Post-Filter
  • Pentair® 20″ Slim Line Filter Housings
  • Automatic Shut Off Valve
  • Push/Pull Fittings with Locking Safety Clip

Specifications

  • Configuration: Single Pass
  • Feedwater Source: TDS < 500
  • Standard Recovery Rate %:
    • LP-350: 40%
    • LP-500: 46%
    • LP-700: 38%
  • Permeate Flow (gpm / lpm):
    • LP-350: 0.24 / 0.91
    • LP-500: 0.35 / 1.31
    • LP-700: 0.49 / 1.85
  • Minimum Feed Flow (gpm / lpm):
    • LP-350: 0.66 / 2.50
    • LP-500: 0.76 / 2.88
    • LP-700: 1.33 / 5.03
  • Maximum Feed Flow (gpm / lpm): 8.00 / 30.28
  • Feed (in), Permeate / Holding Tank (in), Concentrate (in): 3/8 QC
  • Membrane Per Vessel: 1
  • Membrane Quantity:
    • LP-350: 1
    • LP-500: 1
    • LP-700: 2
  • Membrane Size: 3012
  • Nominal TDS Rejection %: 98%
  • Vessel Array:
    • LP-350: 1
    • LP-500: 1
    • LP-700: 2 (Parallel)
  • Vessel Quantity: 1
  • Pump Included:
    • LP-350: No
    • LP-500: Yes (Aquatec 5800 - 110V, 50 / 60Hz, 1PH, 4A)
    • LP-700: No
  • Approximate Dimensions L x W x H (in /cm): LP-350: 12.00 x 17.00 x 32.00 / 30.48 x 43.18 x 81.28
  • Approximate Weight (lbs / kg):
    • LP-350: 35 / 15.87
    • LP-500: 41 / 18.60
    • LP-700: 38 / 17.24
Select Capacity (GPD)
From $346.20

Original: $1,154.01

-70%
AXEON LP Series Reverse Osmosis System—

$1,154.01

$346.20

Product Information

Shipping & Returns

Description

AXEON® LP– Series Reverse Osmosis Systems are engineered in response to the need within the light commercial markets. The LP–Series systems provide a cost-effective solution for customers and are easy to install and maintain. These systems are designed to be wall mounted or free-standing and feature a 5-Micron Sediment and 10-Micron Carbon Pre-Filters, Slim Line Filter Housings and AXEON 500 GPD membranes and membrane housings.

AXEON LP– Series Reverse Osmosis Systems are available in models ranging from 350 to 700 gallons per day (GPD), at a line pressure of 70 psi. The LP– 500 model is available with a pump to deliver 500 GPD.

The models can also be upgraded with an optional cover that includes pressure gauges and a dual TDS meter.

Features & Benefits

  • AXEON TF– 3012 500 Membrane Element
  • AXEON 3012 Membrane Housing
  • AXEON 2.5″ x 20″ 5-Micron Sediment Pre-Filter
  • AXEON 2.5″ x 20″ 10-Micron Carbon Block Pre-Filter and
  • Post-Filter
  • Pentair® 20″ Slim Line Filter Housings
  • Automatic Shut Off Valve
  • Push/Pull Fittings with Locking Safety Clip

Specifications

  • Configuration: Single Pass
  • Feedwater Source: TDS < 500
  • Standard Recovery Rate %:
    • LP-350: 40%
    • LP-500: 46%
    • LP-700: 38%
  • Permeate Flow (gpm / lpm):
    • LP-350: 0.24 / 0.91
    • LP-500: 0.35 / 1.31
    • LP-700: 0.49 / 1.85
  • Minimum Feed Flow (gpm / lpm):
    • LP-350: 0.66 / 2.50
    • LP-500: 0.76 / 2.88
    • LP-700: 1.33 / 5.03
  • Maximum Feed Flow (gpm / lpm): 8.00 / 30.28
  • Feed (in), Permeate / Holding Tank (in), Concentrate (in): 3/8 QC
  • Membrane Per Vessel: 1
  • Membrane Quantity:
    • LP-350: 1
    • LP-500: 1
    • LP-700: 2
  • Membrane Size: 3012
  • Nominal TDS Rejection %: 98%
  • Vessel Array:
    • LP-350: 1
    • LP-500: 1
    • LP-700: 2 (Parallel)
  • Vessel Quantity: 1
  • Pump Included:
    • LP-350: No
    • LP-500: Yes (Aquatec 5800 - 110V, 50 / 60Hz, 1PH, 4A)
    • LP-700: No
  • Approximate Dimensions L x W x H (in /cm): LP-350: 12.00 x 17.00 x 32.00 / 30.48 x 43.18 x 81.28
  • Approximate Weight (lbs / kg):
    • LP-350: 35 / 15.87
    • LP-500: 41 / 18.60
    • LP-700: 38 / 17.24
