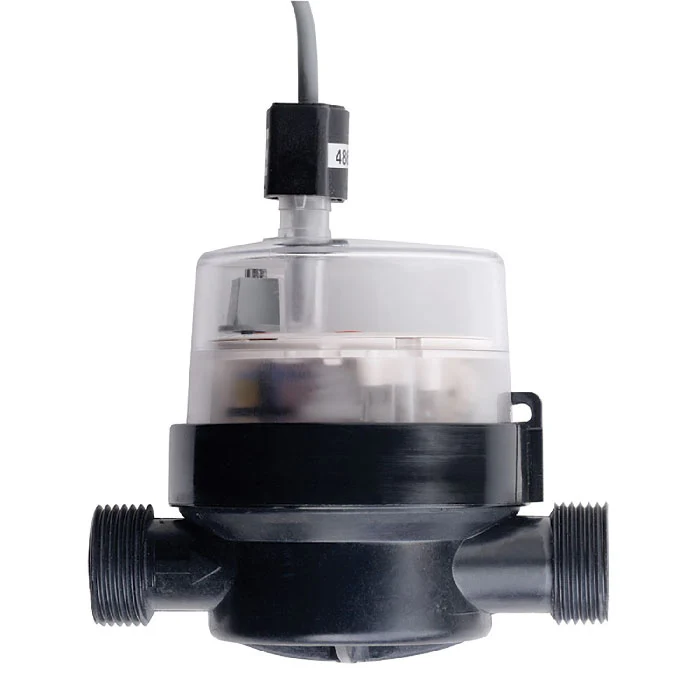

Netafim Fertilizer Meter, 3/4 Inch, 0.1 Pulse/Gallon (36FM.75RG.1)

Netafim Fertilizer Flow Meter

Light-Weight and Corrosion Resistant Meters Deliver a High Level of Accuracy

PRODUCT ADVANTAGES

• Both Polypropylene and PVC meters are light-weight and deliver a high level of accuracy, ± 2%.
• Only one moving part, the impeller, is in contact with the liquid for minimum wear and the utmost reliability.
• Magnetically driven sealed register is guaranteed not to accumulate moisture or fog.
• Dry contact electrical output driven by a magnetic coupling that activates a reed switch creating a pulsed output for communicating with control and monitoring equipment.
• Corrosion resistant plastic components.
• PVC body is an angle type multi-jet meter. The multijet design assures an equally distributed load on the impeller minimizing wear and maintaining accuracy.
• No straight pipe installation requirements.

APPLICATIONS

• 8" and 10" Straight Pipe Installation Requirement: 10 x D upstream and 5 x D downstream

SPECIFICATIONS
