Netafim MegaNet Sprinkler Head, 0.88 GPM, Yellow, 24 Degrees, (MGN24D-088HO)

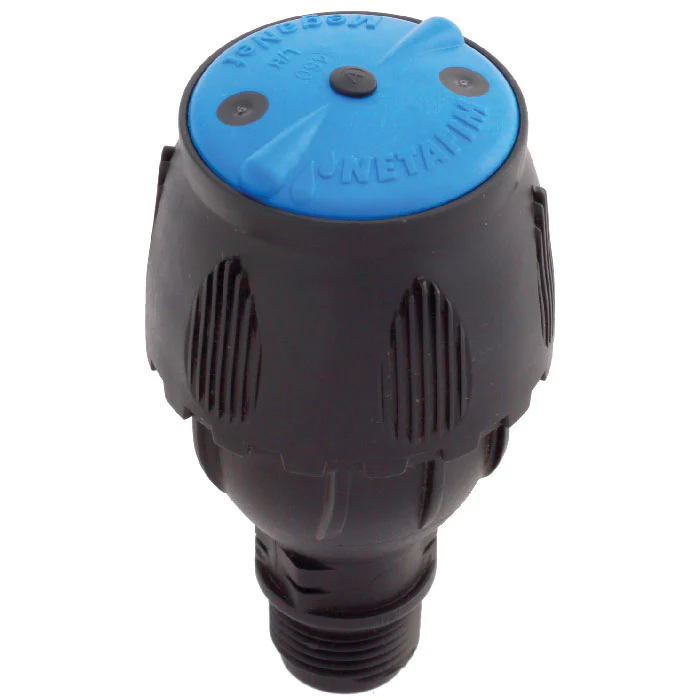

MegaNet™ 15D/24D

Unique encapsulated and protected impact sprinkler with either a low or high water trajectory angle - 15 or 24 degrees, for field crops and under canopy irrigation or vegetable irrigation.

---

Benefits & Features

• Uniform wetting & higher yield
• Anti-Clogging
• Insect protected
• Increased germination percentage
• Reduced labor cost and reduced maintenance

---

Specifications & Recommendations

• Unique impact sprinkler with low trajectory angle for full coverage installation with spacing up to 10X12 meters
• 7 different flow rates: 200, 250, 350, 450, 550, 650, 750 L/H
• Nominal flow rate at: 2.3 bar
• Recommended pressure range: 2.0 - 3.0 b bar
• Water Trajectory angle: 15/24 Degrees
• Nozzle Protection:
  • Integral filter at the inlet of the sprinkler
  • Pop up mechanism: For insect penetration protection
• Water distribution using a special rotating turbine and two identical symmetrical nozzles

• 3 types of inlet connectors:
  • 1 ⁄2” male threaded
  • 20 MM ISO inlet connector (to be glued to PVC)
  • 1⁄2" ASTM inlet connector (to be glued to PVC)
• 2 body types:
  • Standard
  • Anti Darin valve
• Color coded for easy identification:
  • Cap is color coded according to the flow rate
  • Locking pin for 15D model is white, for 24D locking pin is black
• Made of UV-protected materials, durable to all climate conditions and nutrients injected in agricultural applications
• MegaNet™ sprinklers meet ISO 8026 standards (SI 1406) with production certified by the Israel Standards Institute (SII)
• Recommended filtration*: 400 micron / 40 mesh
